Vaporization System
The vaporization tube is inserted with an aluminum sleeve and into the heater assembly. The
carrier gas is preheated by routing it along the outside of the heated vaporizer and then into
the vaporizer. The vaporization temperature can be set independently of the oven
temperature, and is set based on the sample composition.
Heater, Cartridge
100W
120V or 240V
Probe, Push-in Style
.188” OD X 1” Long
Liquid Injection Valve
Heater Block Module
Oven Interior View of
SLIV Installation
Oven Exterior View of
SLIV Installation

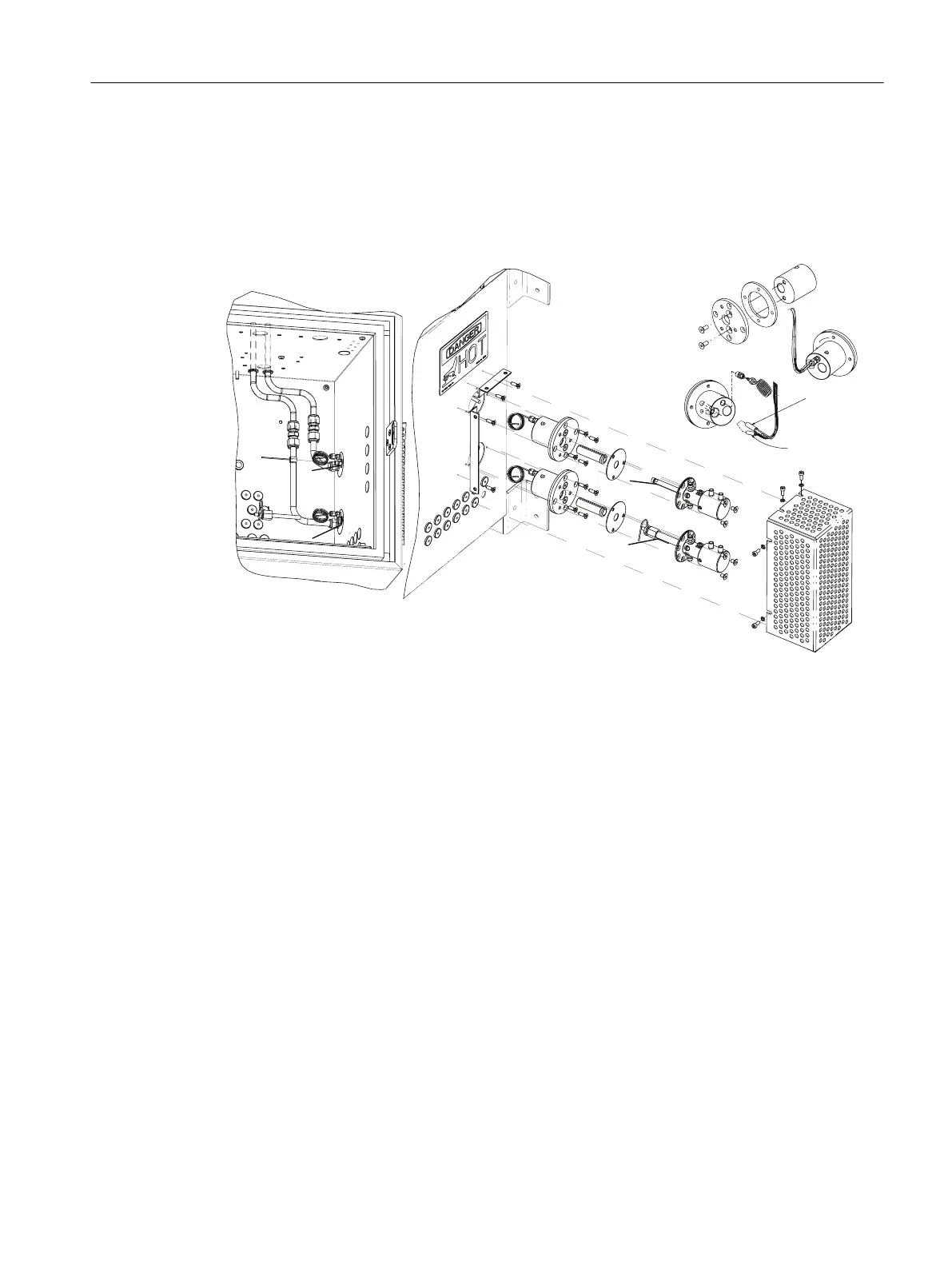

Figure 4-3 SLIV Installation Details
Valves
4.2 Liquid Injection Valve
Maxum II Valves and Oven Components
Service Manual, 10/2018, A5E42019844001 33
