Siemens Maxum II PD PA AP User Manual

P49500
V16052
H10648
B00065
S52000
P49510

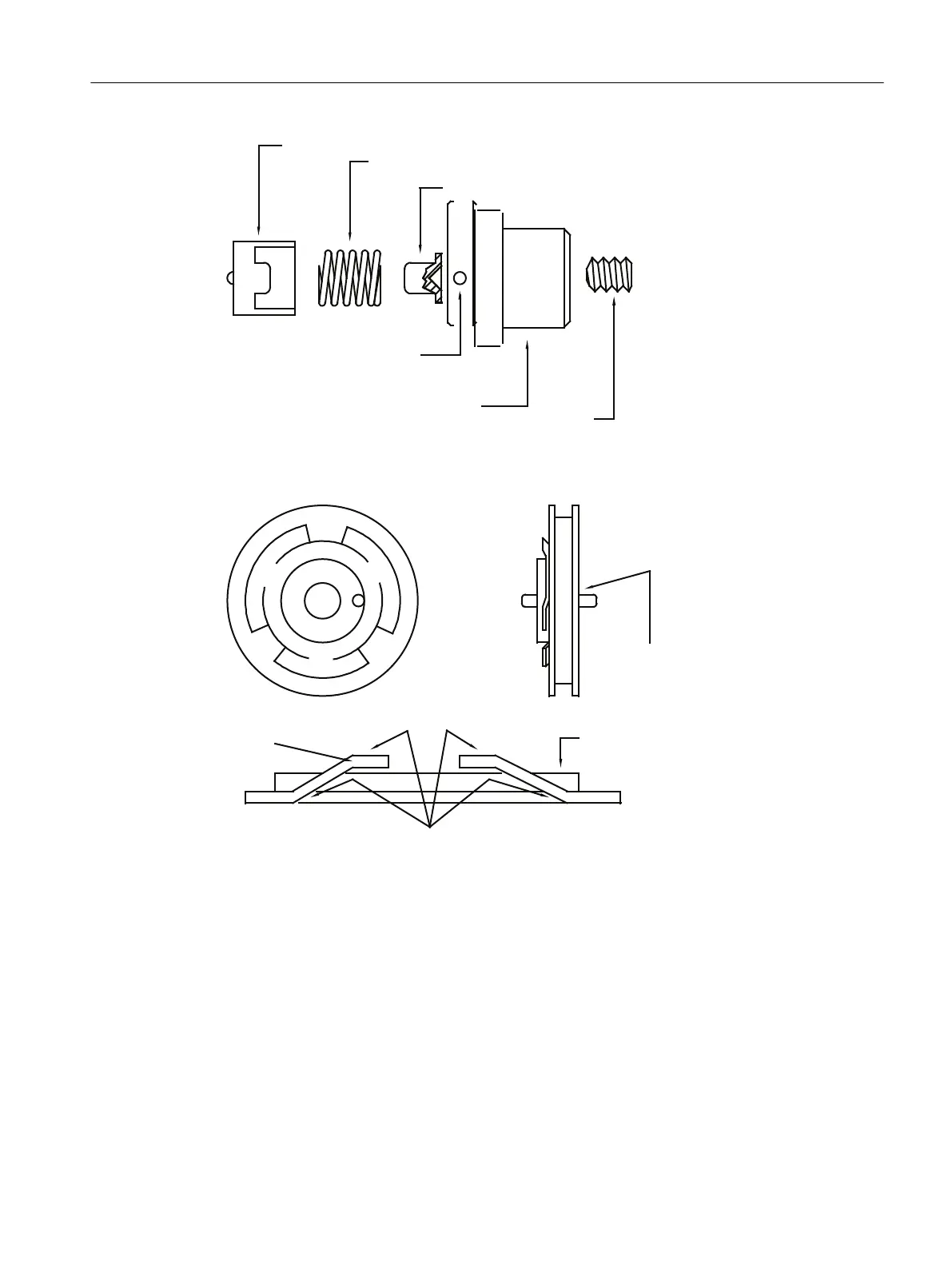

Figure 4-32 Assembly of Compression Spring
Piston
Spring
Pressure Points
V16022
Apply
Loctite
Figure 4-33 Greasing of Spring Pressure Points
4.6.8 Mini-Maintenance Procedures (Valve Cap and Fittings)
4.6.8.1 M11 Procedure - Valve Cap Disassembly
1. Perform a Job Safety Assessment (JSA). Review the procedure and take action to manage
any safety risk.
2. Place the analyzer out of service and put the analyzer in HOLD.
3. Turn off the valve gas, carrier gas and sample gas by closing the block valves for each of
these gasses.
Valves
4.6 Model 11 Valve
Maxum II Valves and Oven Components
Service Manual, 10/2018, A5E42019844001 91
