Siemens Maxum II PD PA AP User Manual

1. Screw (3 total required)
2. Belleville Washer (6 total required)
3. Valve Cap
4. Teflon Seal Disc
5. Dacron Cushion Disc
6. O-Ring
7. Plungers (6 total required)

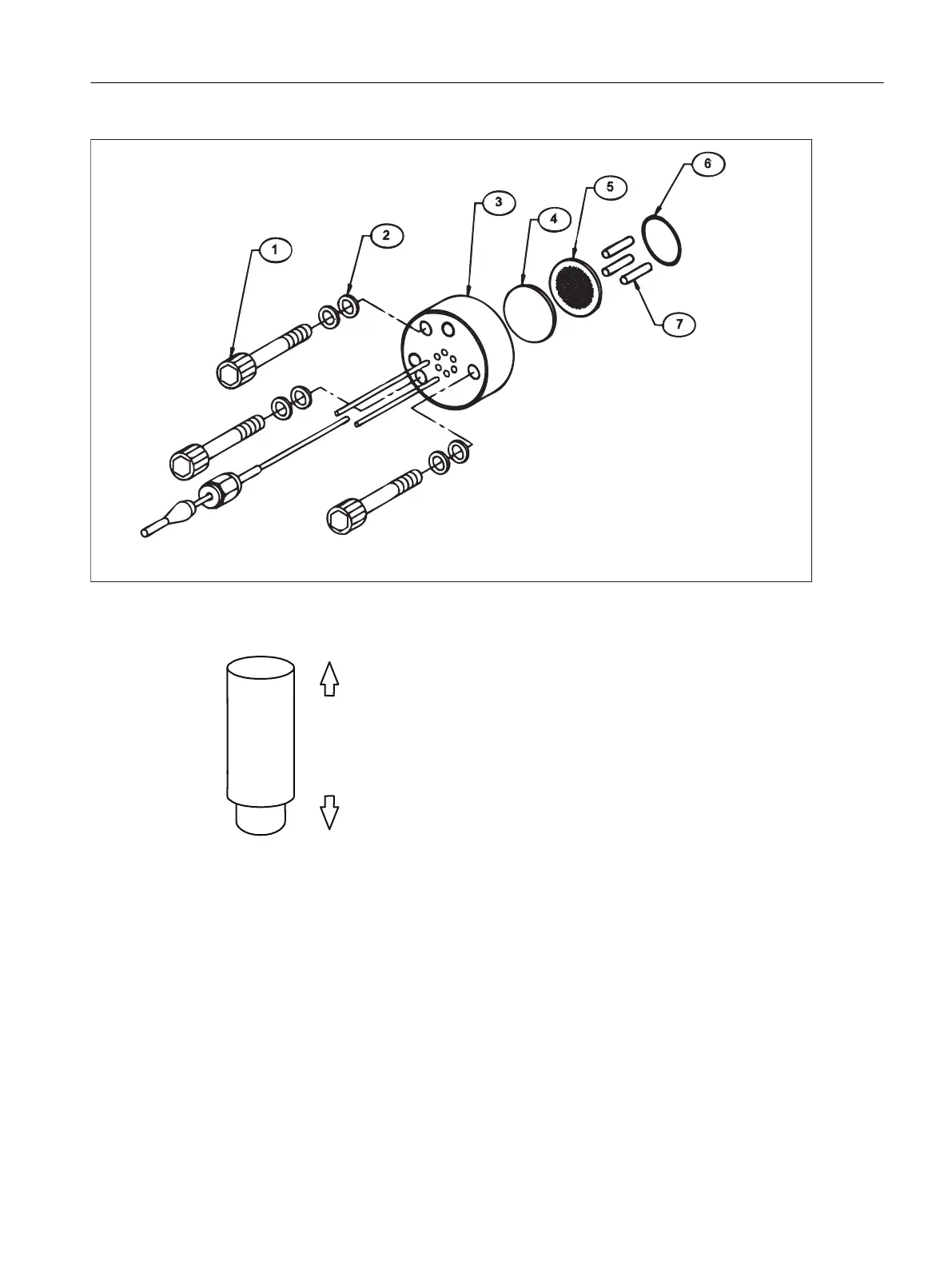

Figure 4-28 Model 11 Valve Cap Exploded View
This end toward valve cap
This end toward pistons
Figure 4-29 Model 11 Plunger Orientation
Valves
4.6 Model 11 Valve
Maxum II Valves and Oven Components
Service Manual, 10/2018, A5E42019844001 89
