1.2.1 IS Probe and Barrier
To maintain a fast measurement response, a bare-element RTD sensor is used for the
temperature probe. However, this type of probe must be intrinsically safe. The probe is
connected to an IS barrier mounted behind the detector cabinet as shown below. This circuit
is thus intrinsically safe.
Temp Probe
IntrinsicallySafe
barrier Module
located in the
electronics
compartment
behind the FID
detector.
,QWULQVLFDOO\6DIH
EDUHHOHPHQW
WHPSHUDWXUHSUREH
2YHQDLULQSXW
IURPKHDWHU
'HIOHFWRUDVVHPEO\

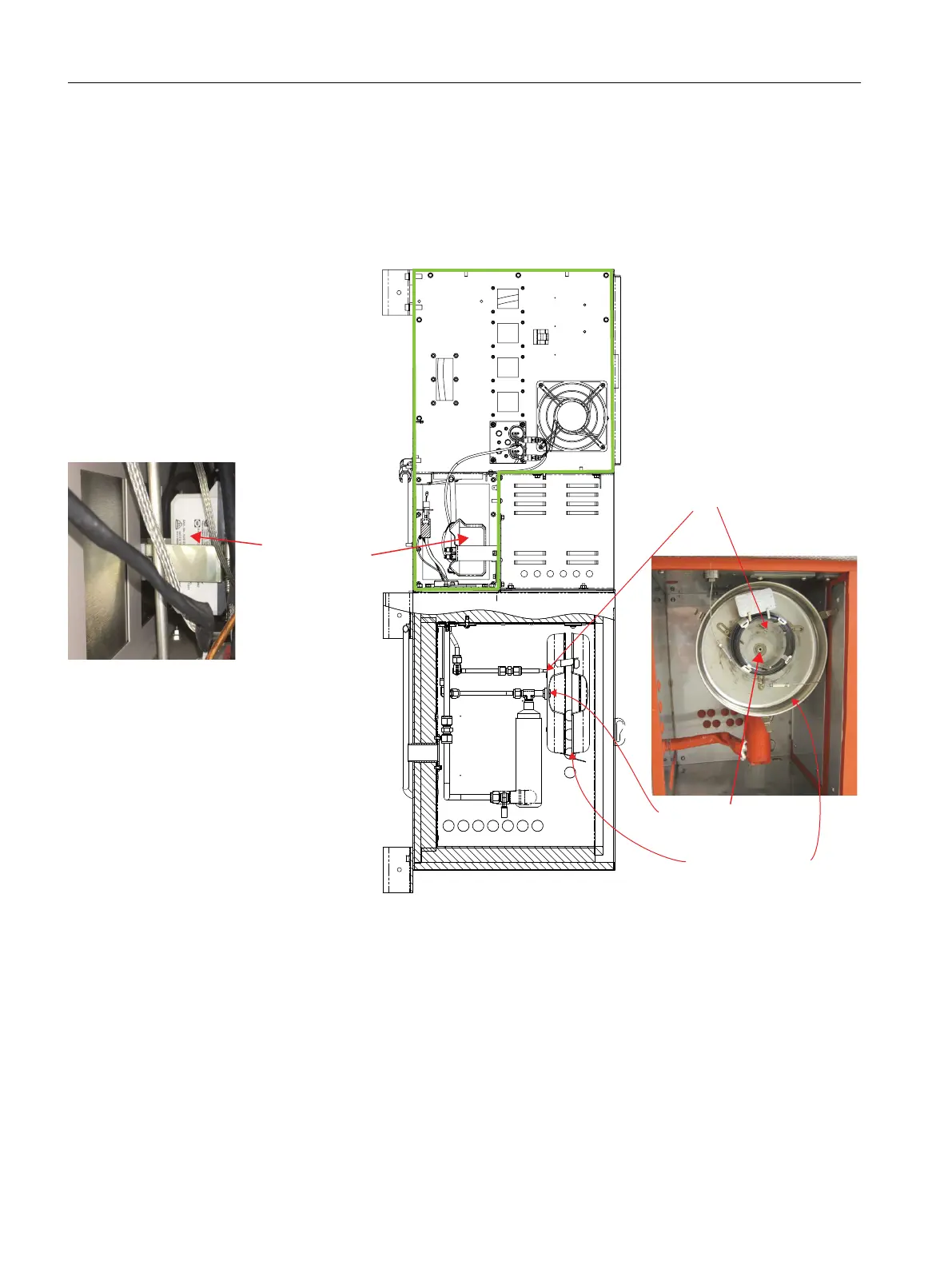

Figure 1-5 Programmed Temperature Airbath Oven Component Locations
Oven Types
1.2 Programmed Temperature Air Bath Oven Heater System
Maxum II Valves and Oven Components
12 Service Manual, 10/2018, A5E42019844001
