Temperature Control Module (TCM)
3
Overview
The Temperature Control Module (TCM) is identical to the Base3 DPM except that it includes
only the temperature-control components. This is useful when extra temperature-control
functions are needed.
A Location ID Switch is also included, and functions as described in
Location ID Switch in the
Base3 DPM section.
RTD Temp Control Inputs
I
2
C
Heater Control Outputs to PECM
Location ID Switch
Temp Setpoint Module
Mounting Screw Access
Temp Setpoint Module
Mounting Location
Status
LEDs

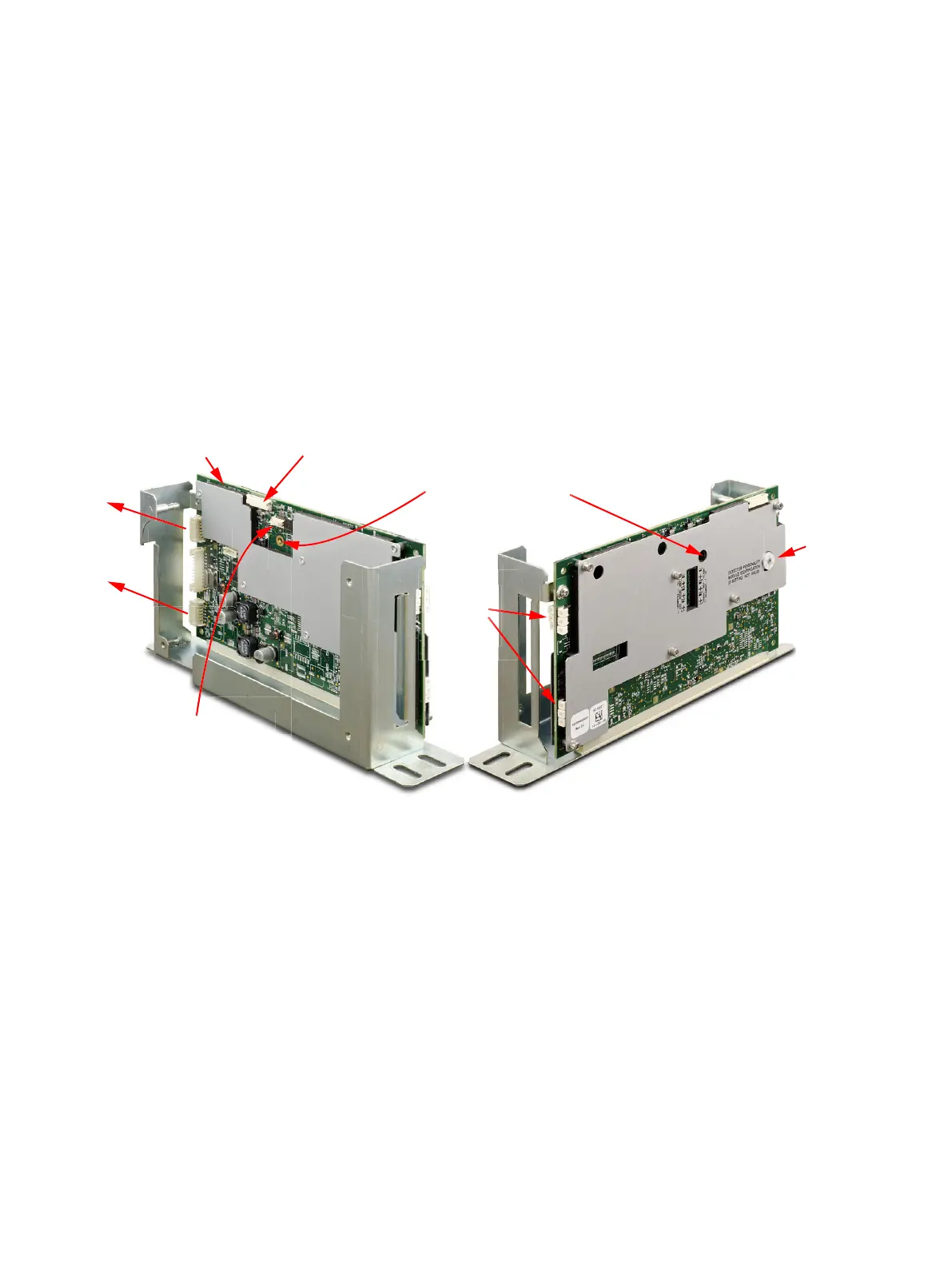

Figure 3-1 Temperature Control Module Connections
The Temperature Control Module (Part Number A5E02645925002) can be used as a
replacement part for the temperature-control functions of earlier DPMs in Maxum I analyzers
using an adapter, part number A5E34938458001.
Maxum II Valves and Oven Components
Service Manual, 10/2018, A5E42019844001 23
