The air pressure switch is connected to the oven air flow using an extension that runs parallel
to the oven air flow line. This extension line is equipped with a restrictor coil. The coil is
necessary in order to create a short delay between the start of air flow and the activation of
the pressure switch. This delay forces the oven heater to purge for a short time before the
heater is powered up. See the photo below.

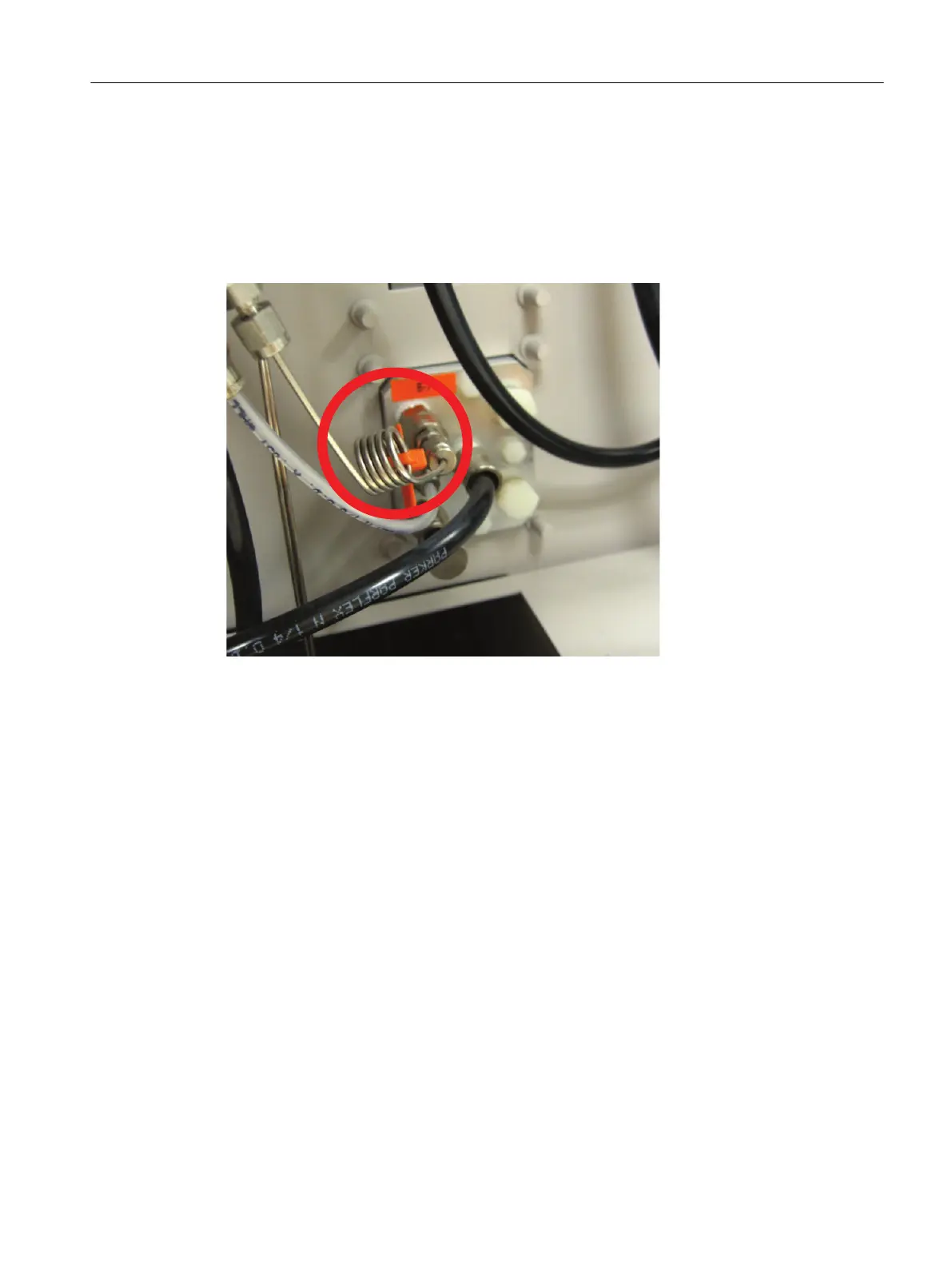

Figure 1-2 Timing Coil for Pressure Switch
Oven Types
1.1 Isothermal Air Bath Oven Heater System (Single and Split)
Maxum II Valves and Oven Components
Service Manual, 10/2018, A5E42019844001 9
