Mechanical
Each SVCM incorporates 8 solenoid valve circuits for driving 3-way and 4-way solenoid valves.
The SVCM is mounted in the Controller Enclosure on the manifold block. It can also be mounted
in a Division 2 purged enclosure. Up to 3 SVCM assemblies can be mounted in the Maxum
II. This allows up to twelve 3-way solenoids and twelve 4-way solenoids. SVCM-1 is mounted
in the lower right portion of the back wall. SVCM-2 is mounted in the lower left portion of the
back wall. SVCM-3 is mounted (vertically) in the upper right portion of the back wall. The
original SVCM is equipped with Parker solenoids. The newer SVCM is equipped with SMC
solenoids. Manifold in/out SST tubing connections incorporate one-touch push-type tubing
connectors.

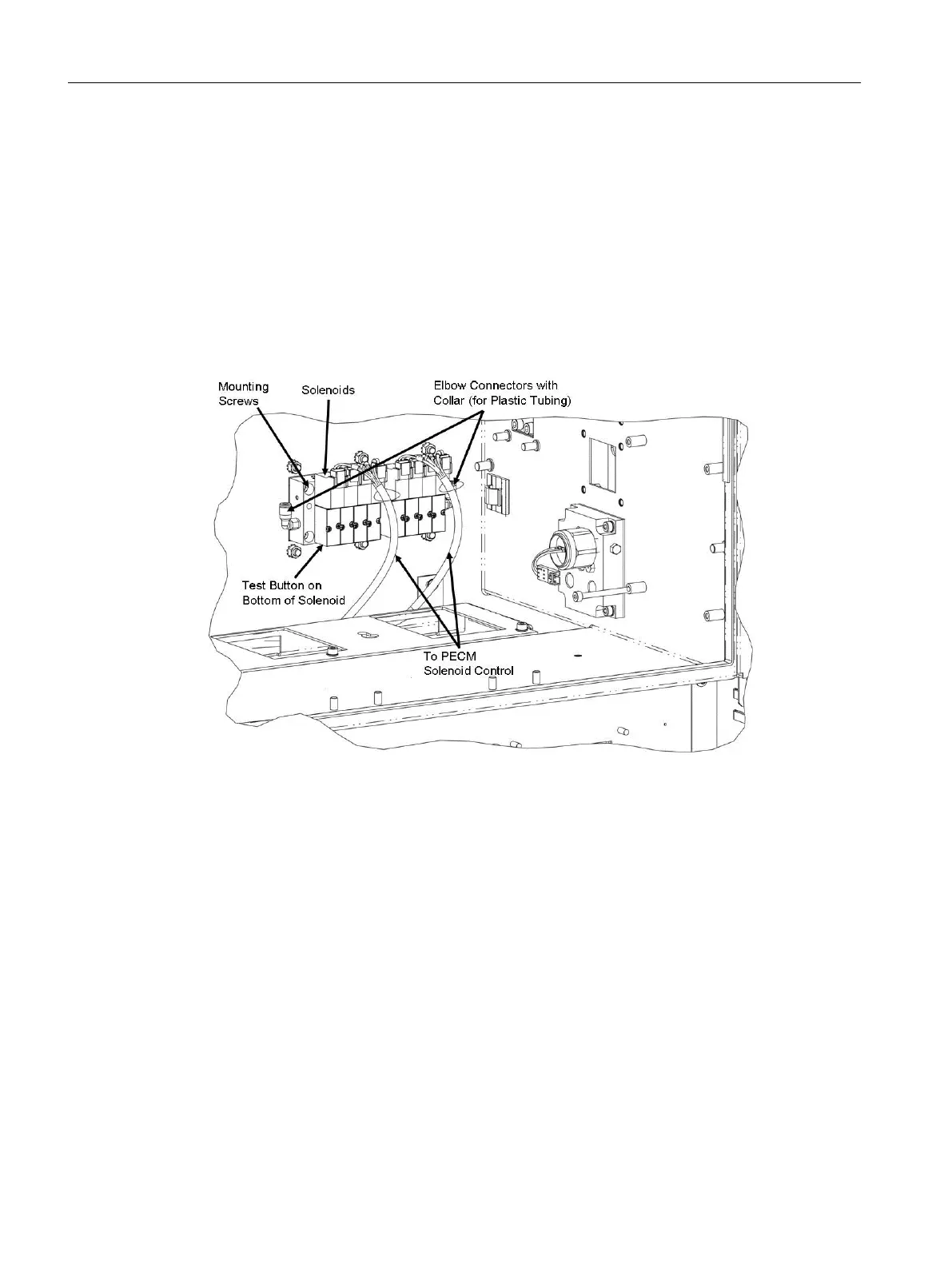

Figure 4-2 Solenoid Control Module
Valves
4.1 Solenoid Valves
Maxum II Valves and Oven Components
28 Service Manual, 10/2018, A5E42019844001
