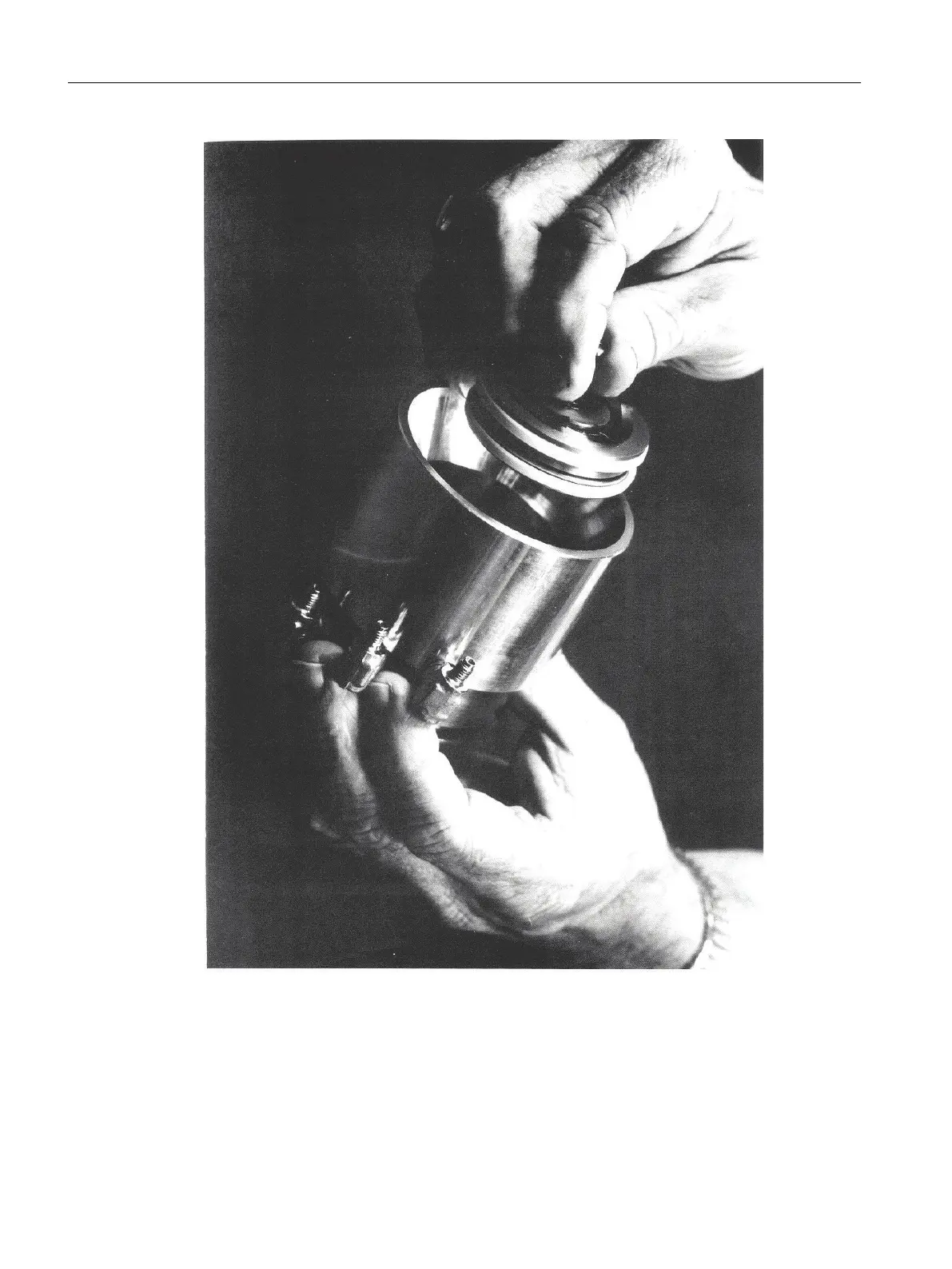

Figure 4-23 Inserting Piston Assembly (15 and 18) into Base (16)
1. Align plunger valve body (17) and insert piston index guide pin into one of the three bottom
plunger valve body holes.
2. Rotate plunger valve body (17) to align the plunger valve body screw holes with cylinder
valve base (16) threaded holes.
Valves
4.5 Model 20 HT Valve
Maxum II Valves and Oven Components
78 Service Manual, 10/2018, A5E42019844001
