4
Creating a ShopTurn Program 08/2005
4.2 Bases
4
♥ Siemens AG, 2005. All rights reserved
4-134 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

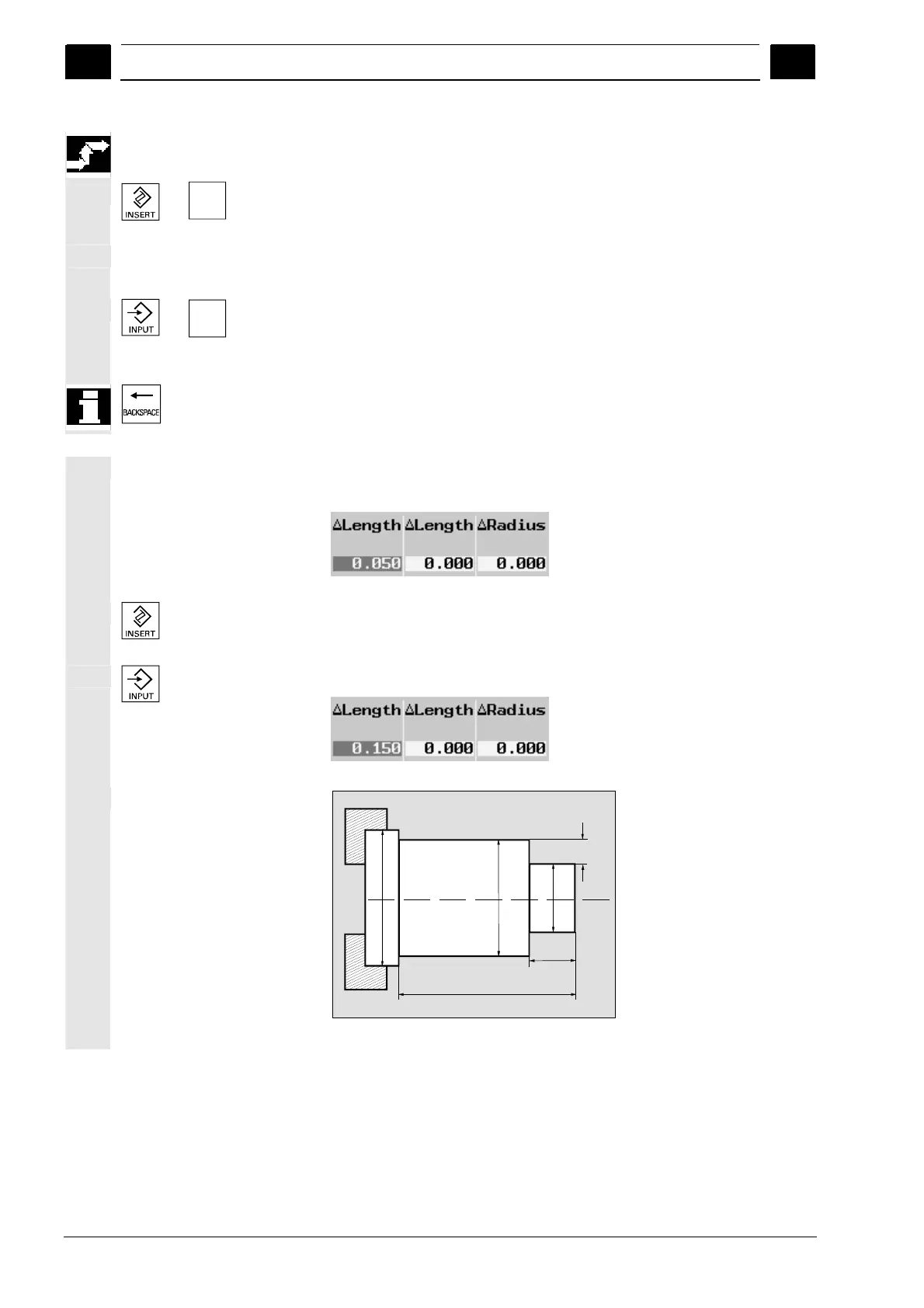

îš¾ Position the cursor on the input field of a parameter screen form.
or
=
îš¾ Press the "Insert" or "=" key.
The calculator is active.
îš¾ Input the calculating instructions.
You can use the calculation symbols, numbers, and commas.
or
=
îš¾ Press the "Input" or "=" key.
The new value is calculated and displayed in the input field. The
calculator is switched off.
If you would first like to delete an old value in an input field, press the
"Backspace" key.
Example: Tool wear +0.1
îš¾ Position the cursor on the input field ". LengthX" in the tool wear
list.
îš¾ Press the "Insert" key.
îš¾ Input the calculating instructions: + 0.1
îš¾ Press the "Input" key.
Example: Calculating the
diameter
40
160
30
Ø
50
ØA
Ø120
Workpiece drawing
