08/2005 Introduction
1.2 Workstation
1
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 1-25
1.2.4 Machine control panels
The lathe can be equipped with a machine control panel by Siemens
or with a specific machine control panel from the machine
manufacturer.
You perform actions on the lathe via the machine control panel, for
example, traversing axes or starting the machining of the workpiece.
When functions are active, the LEDs on the corresponding keys on
the machine control panel light up.

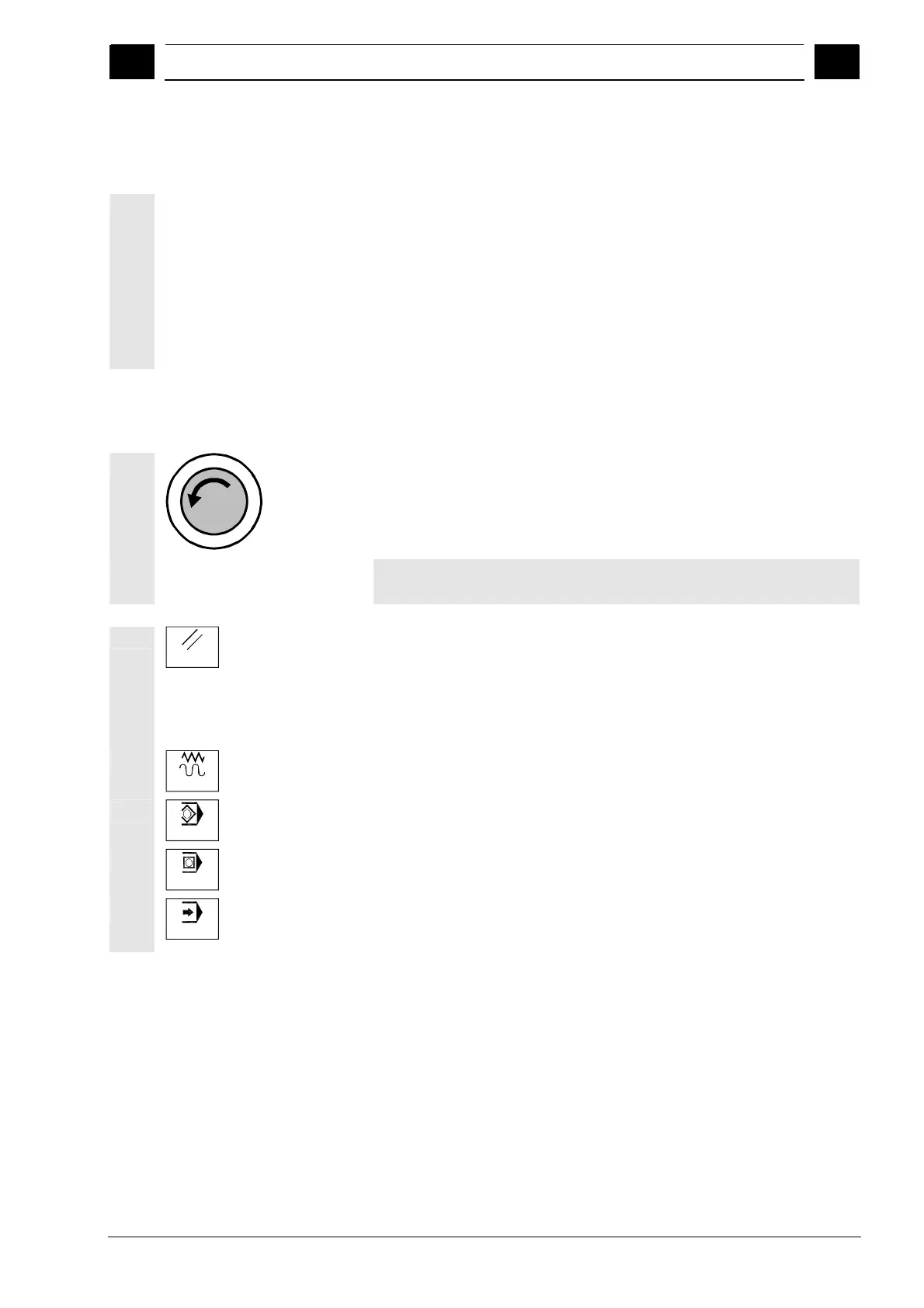

1.2.5 Elements of the machine control panels
Emergency Stop button
Press this pushbutton in an emergency, i.e. when there is a danger to
life or there is a risk of damage to the machine or workpiece.
All drives will be stopped with the greatest possible braking torque.
For additional responses to pressing the Emergency Stop button,
please refer to the machine manufacturer's instructions.
Reset
Reset
Interrupts execution of the current program.
Die CNC control remains synchronized with the machine. It is in its
initial state and ready for a new program run.
Cancels an alarm
Jog
Jog
Selects Machine Manual operating mode.
Teach In
Teach-in
Has no meaning for ShopTurn.
MDI
MDI
Selects MDI mode.
Auto
Auto
Selects Machine Auto operating mode.
