Siemens MCP 398C Operation/Programming

5
ShopTurn Functions 08/2005
5.3 Turnin
g
5
♥ Siemens AG, 2005. All rights reserved.
5-202 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition

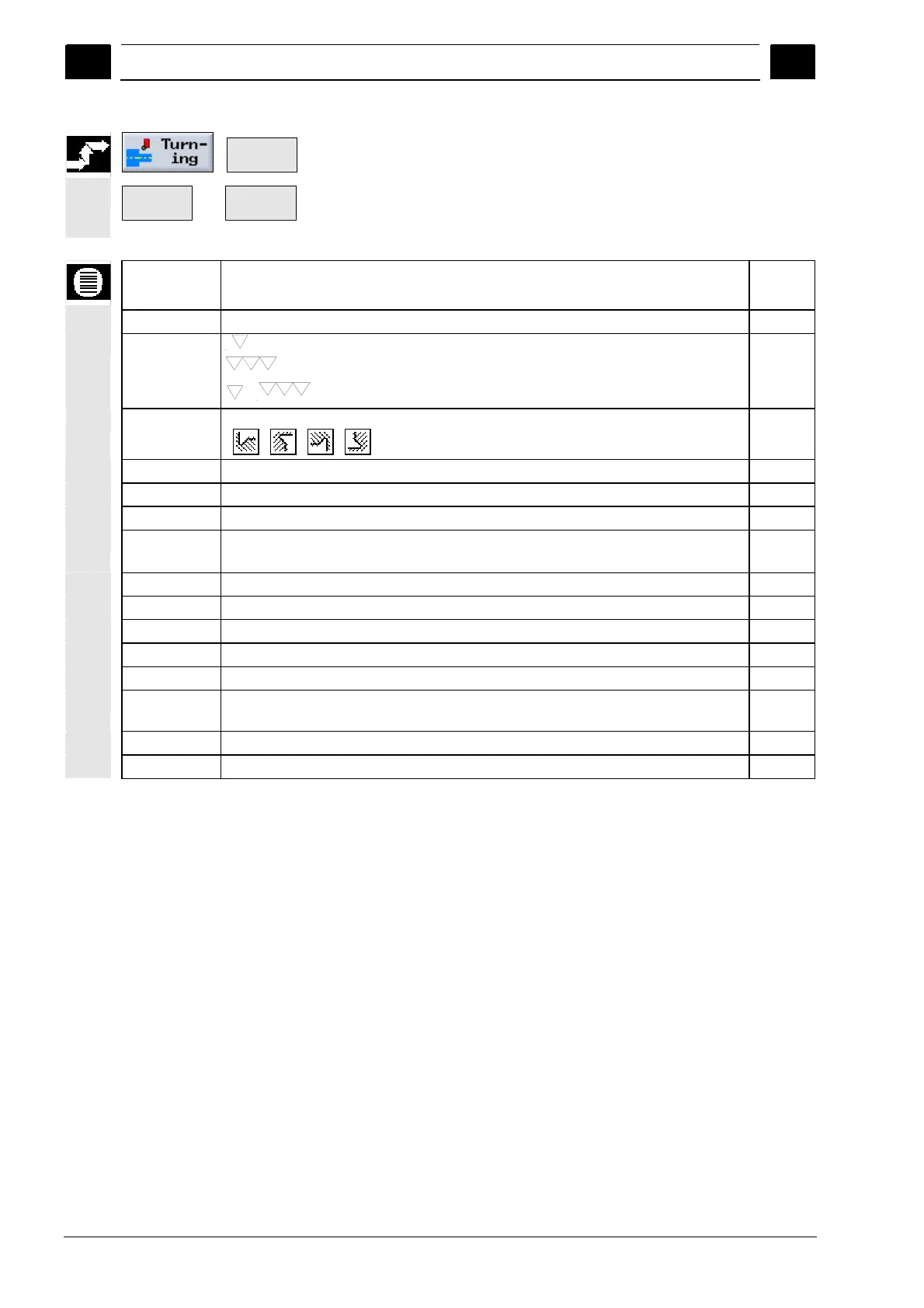

Undercut >
¾ Press the "Turning" and "Undercut" soft keys.
Undercut
thread DIN
-or-
Undercut
thread
¾ Press the "Undercut thread DIN" or "Undercut thread" soft key.
Parameters Description Unit
T, D, F, S, V See Sec. "Creating program blocks".
Machining
type
Roughing
Finishing
+ Complete machining
Position Position of thread undercut:
P Select the pitch from the preset DIN table or enter – (for "Thread undercut DIN" only) mm/rev
X0
Reference point ¬ (abs)
mm
Z0 Reference point (abs) mm
X1
Allowance in X direction ¬ (abs) or
Allowance in X direction (inc) – (for "Thread undercut" only)
mm
Z1 Allowance in Z direction (abs or inc) – (for "Thread undercut" only) mm
R1, R2 Radius1, Radius2 (inc) – (for "Thread undercut" only) mm
α
Plunge angle
Degrees
V
Cross-feed X ¬ (abs) or cross-feed X (inc)
mm
D Infeed (inc) – (for roughing only) mm
U Contour-parallel finishing allowance in X and Z direction (inc) – (roughing only) –
(alternative to UX and UZ)
mm
UX Finishing allowance in X direction (inc) – (roughing only) – (alternative to U) mm
UZ Finishing allowance in Z direction (inc) – (roughing only) – (alternative to U) mm
