5.4 Contour turnin
g
5
♥ Siemens AG, 2005. All rights reserved
SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition 5-213
Graphic representation
The progress of contour programming is shown in broken-line
graphics while the contour elements are being entered.

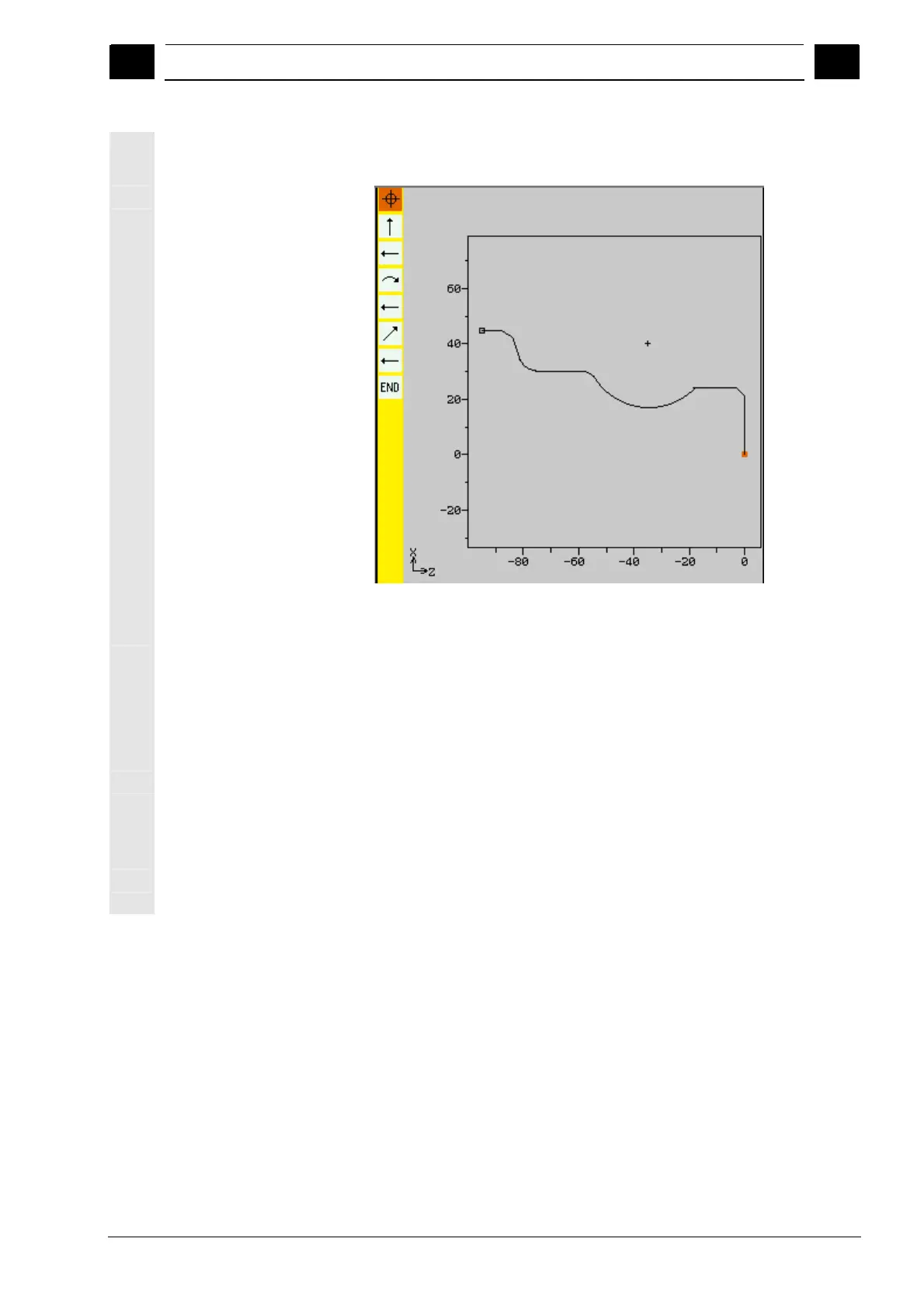

Graphical presentation of the contour during contour turning
When the contour element has been created, it can be displayed in
different line styles and colors:
 Black: Programmed contour
 Orange: Current contour element
 Green dashed: Alternative element
 Blue dotted: Partially defined element
The scaling of the coordinate system is adjusted automatically to
match the complete contour.
The symmetry axis of the contour is represented as a line with dots
and dashes.
The position of the coordinate system is displayed in the graphics
window.
