8
Tool Management 08/2005
8.1 Tool lists
tool wear lists and the tool ma
azine
8
♥ Siemens AG, 2005. All rights reserved
8-358 SINUMERIK 840D sl Operation/Programming ShopTurn (BAT) – 08/2005 Edition
Tool wear list
You must enter the wear data for your tools in the tool wear list.
ShopTurn takes this data into account on machining the workpiece.
You can also activate tool monitoring here as well as disable tools or
identify them as oversized.

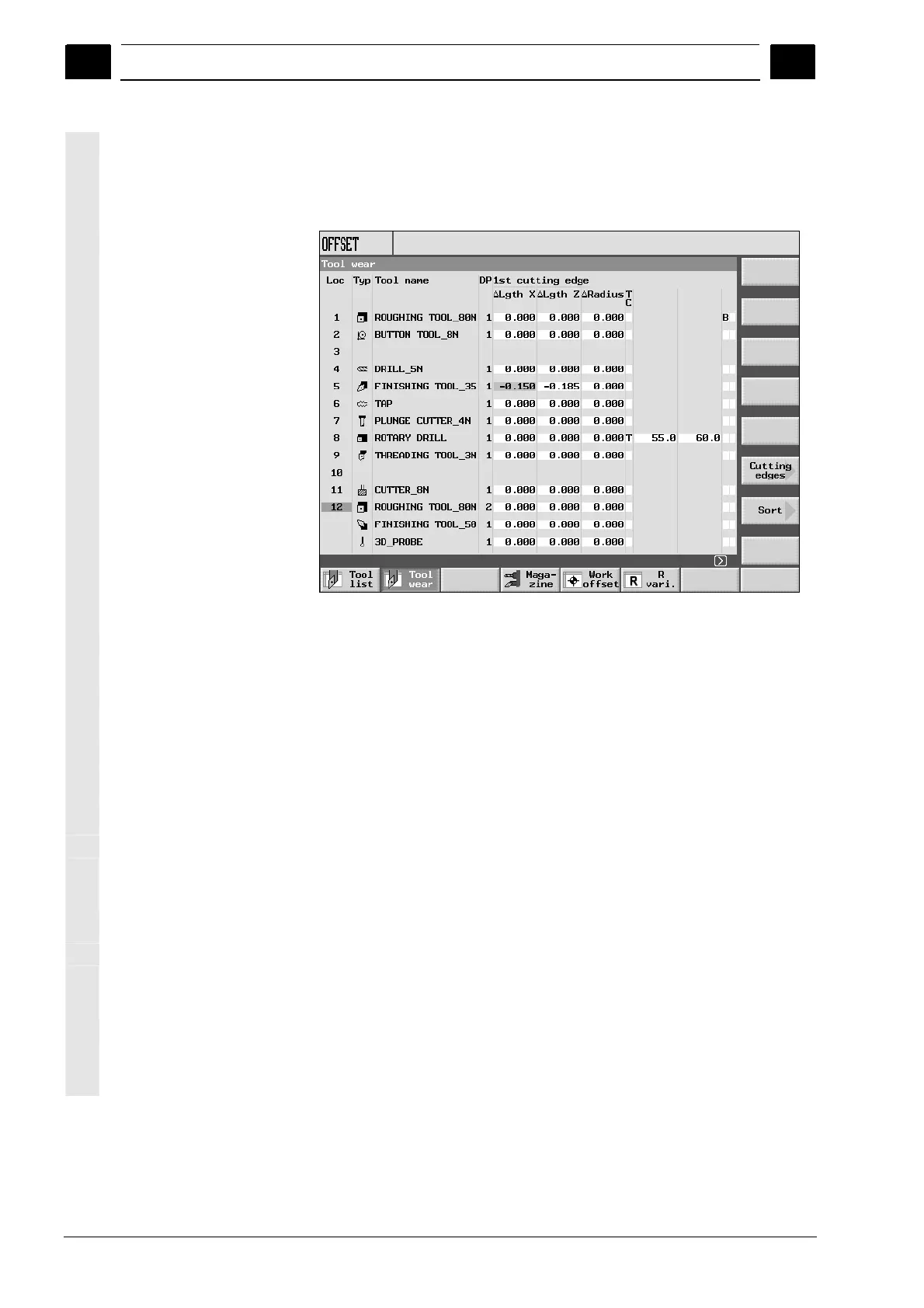

Tool wear list
Loc., Type, Tool Name,
DP
Display of magazine loc. number, tool type, and cutting edge position,
text/number designation of the tool and duplo number
(D No.) edge The displayed wear data is relative to the selected cutting edge of the
tool.
. Length X
Wear in the X direction
. Length Z
Wear in the Z direction
. Radius or . ¬
Wear of the radius or diameter
TC Tool monitoring through service life (T),
quantity (C) or
wear (W)
Pre-warning limit Pre-warning limit of service life, quantity, or wear
Service life
Quantity
Wear
Service life of the tool
Quantity of the finished workpieces
Maximum allowable tool wear
Tool condition
(last two columns)
Tool is disabled for machining (G) or over-sized (U).
