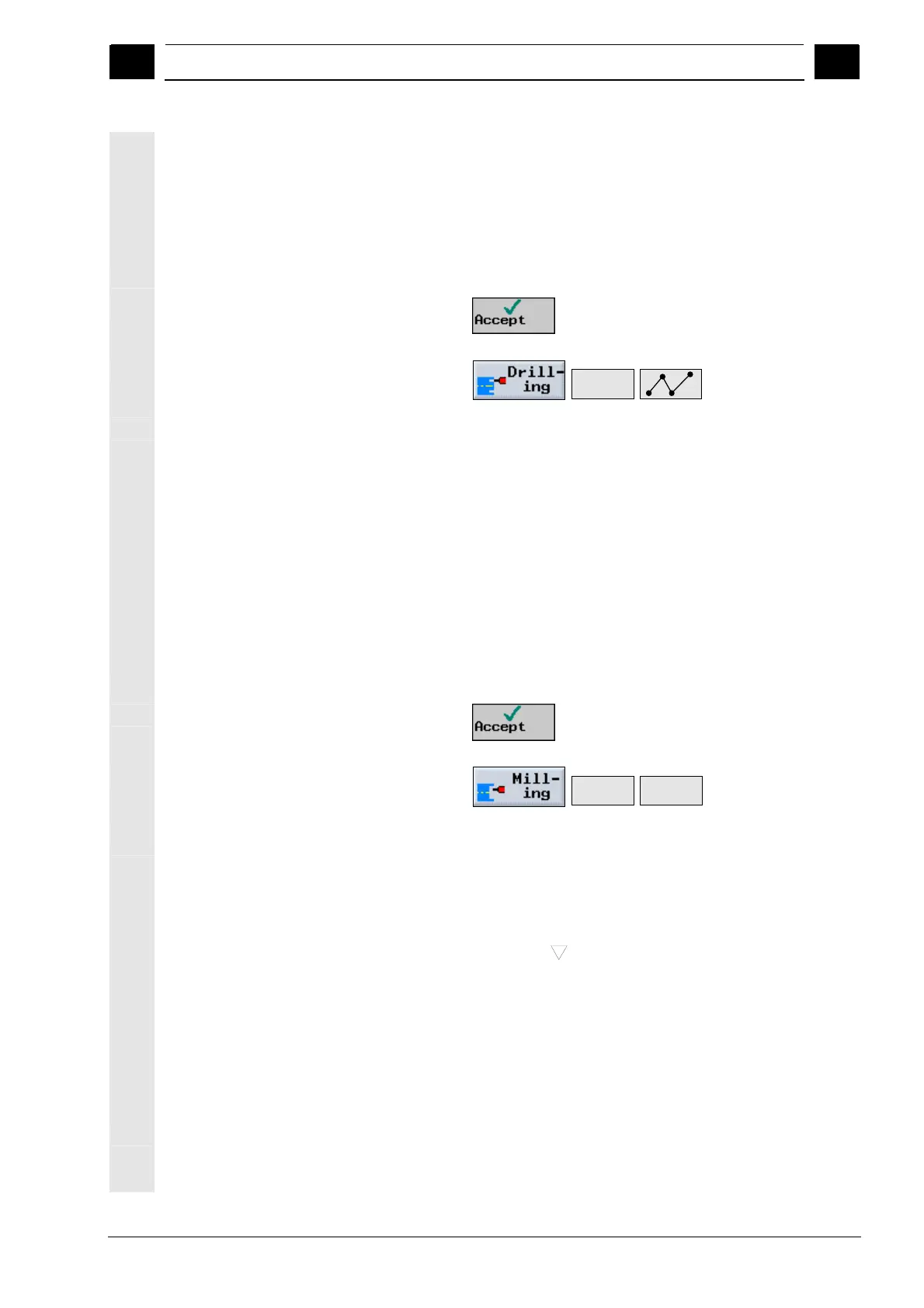

11
08/2005
Examples
11.1
Standard machinin
g
p
rocesses
11
♥
Siemens AG, 2005. All rig
hts reserved
SINUMERIK 840D sl
Operation/Progra
mming ShopTurn (BA
T) – 08/2005 Editio
n
11-417
T
Drill
F
200 mm/min
S
1000 rpm
Position
Front
Point/Shaft
Tip
Z1
10 inc.
DT
0 s
îš¾
Press
the
softkey
14.
Position
îš¾
Press
the
Positions
>
softkeys
îš¾
Enter
parameters:
Position
Front
Right-angle/Polar
Polar
Z0
0 abs
C0
0 abs
L0
16 abs
C1
90 abs
L1
16 abs
C2
180 abs
L2
16 abs
C3
270 abs
L3
16 abs
îš¾
Press
the
softkey
15.
Mill a rectangular pocket
îš¾
Press
the
Pocke
t
>
Rectang.
pocke
t
softkeys
îš¾
Enter
parameters:
T
Milling tool
F
0.030 mm/tooth
S
1800 rpm
Position
Front
Machining
type
Position
Single position
X0
0 abs
Y0
0 abs
Z0
0 abs
W
23
L
23
R
8
α
0
4 degree
Z1
5 inc.
DXY
50 %
