Siemens MD-BMS - Meter Setup and Configuration

Prepping for Installation
Versi
on Control
29
Building Technologies 125-202
06/06/2017
Version Control
Installed versions of the software and firmware are checked when first connecting the
meter. A pop-up dialog box appears if either of those is out of date. See Installing the
ViewPoint Software for firmware downloading instructions.

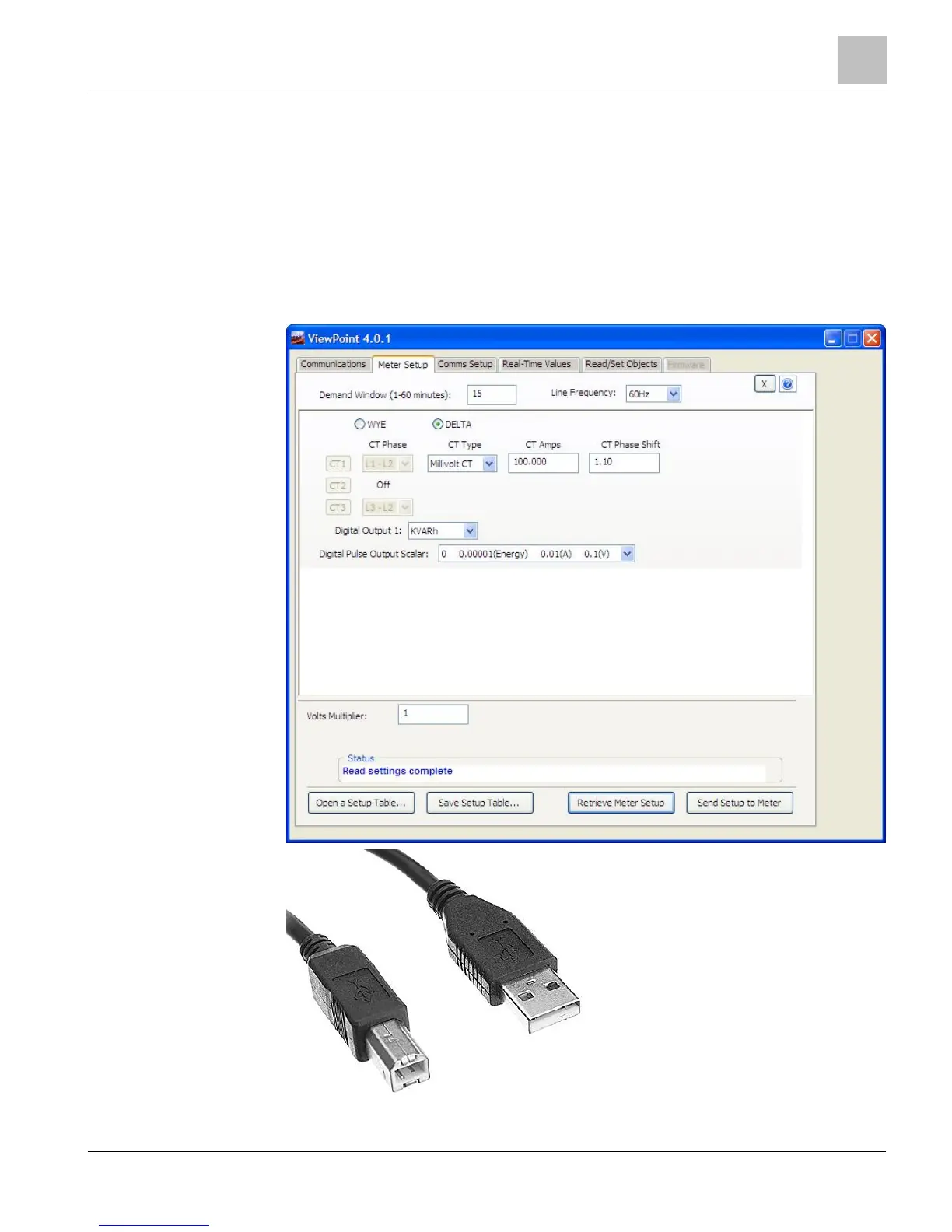

Meter Setup
Once communication is established between the computer and the MD-BMS or MD-
BMED Power Meter, you are now ready to configure the meter for the field. This is
accomplished in the Meter Setup tab of ViewPoint.
Use Type AB USB Cable from Meter to Computer.
