Appendix G - MD-BMED with Visual Display
The MD-BMED Power Meter features a backlit digital display. It has two rows of 16
characters that auto cycle between informational screens every two to three seconds,
with real-time values updated every second. A Hold button (located on the side of the
meter near the USB jack) will stop the cycle until it is pressed again or a set timeout is

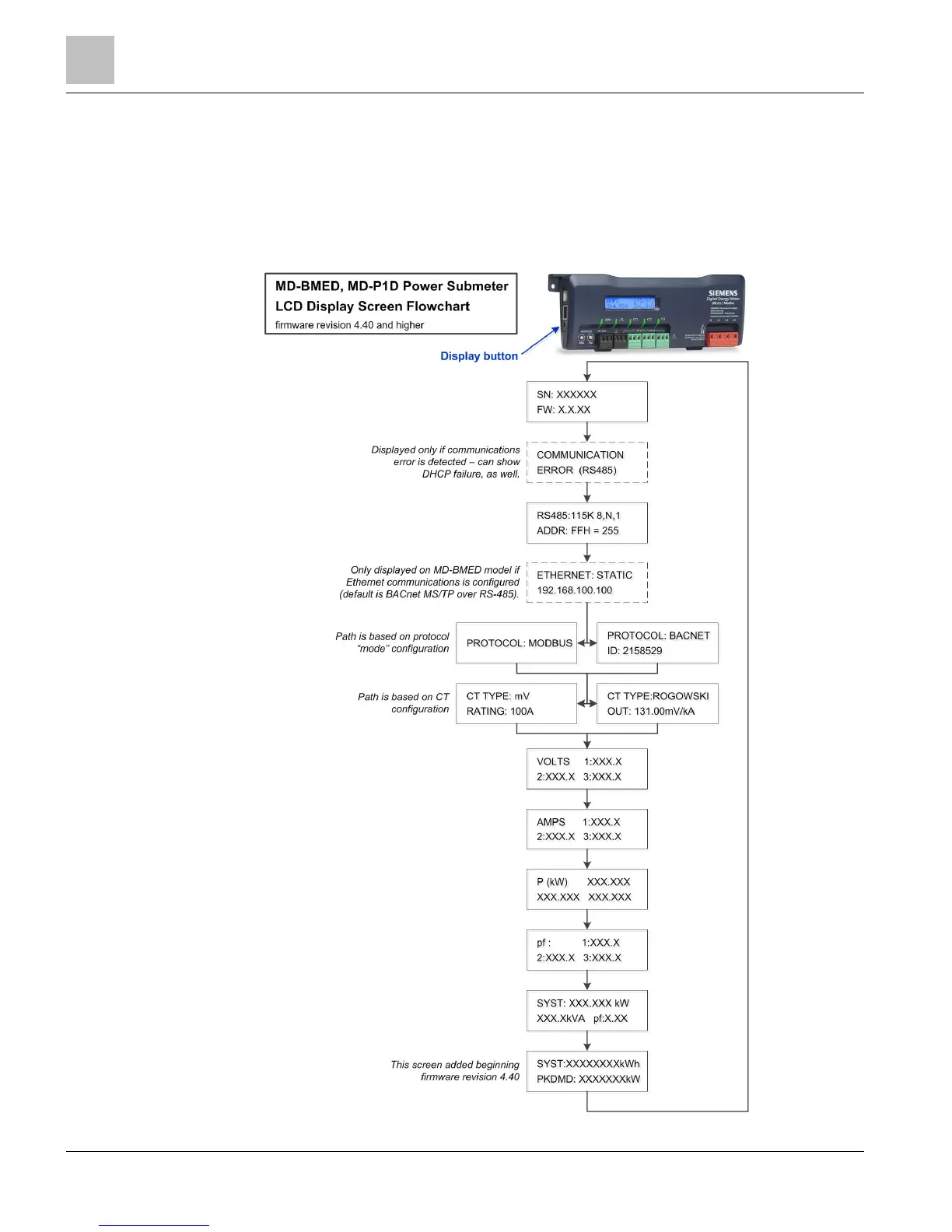

reached The following flowchart shows the information displayed during the cycles.
