Installation
48
Building Technologies 125-202
06/06/2017

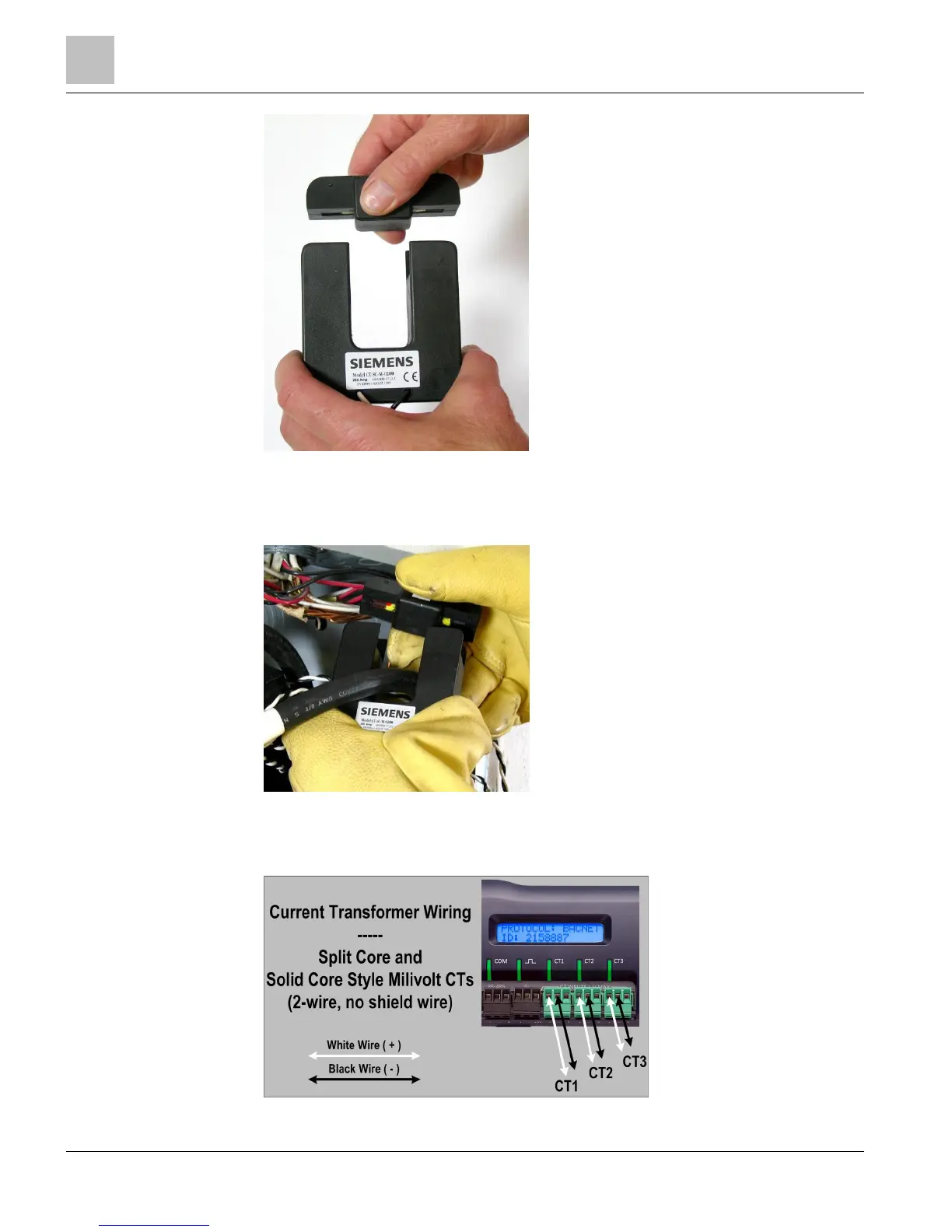

2. Connect the CT around the load conductor to be measured. Ensure that the
maximum current of the conductor does not exceed the maximum CT rating listed
in the
Split Core Current Transformers Small, Medium and Large Sizes Technical
Specification Sheet
(149-406).
3. Carefully reconnect the removable leg while ensuring that the CT core alignment
matches. The conductor should be in the inside of the CT window.
4. Repeat Steps 1 through 3 if you are using more than one CT.
