Siemens POLYMOBIL Plus - Rotating Anode Starter: Acceleration

Measurements 5 - 5
Siemens AG SPR8-125.061.02 Page 5 of 20 POLYMOBIL Plus
Medical Engineering Rev. 01 01.00 TD SD 24
Rotating anode starter 5
Acceleration 5

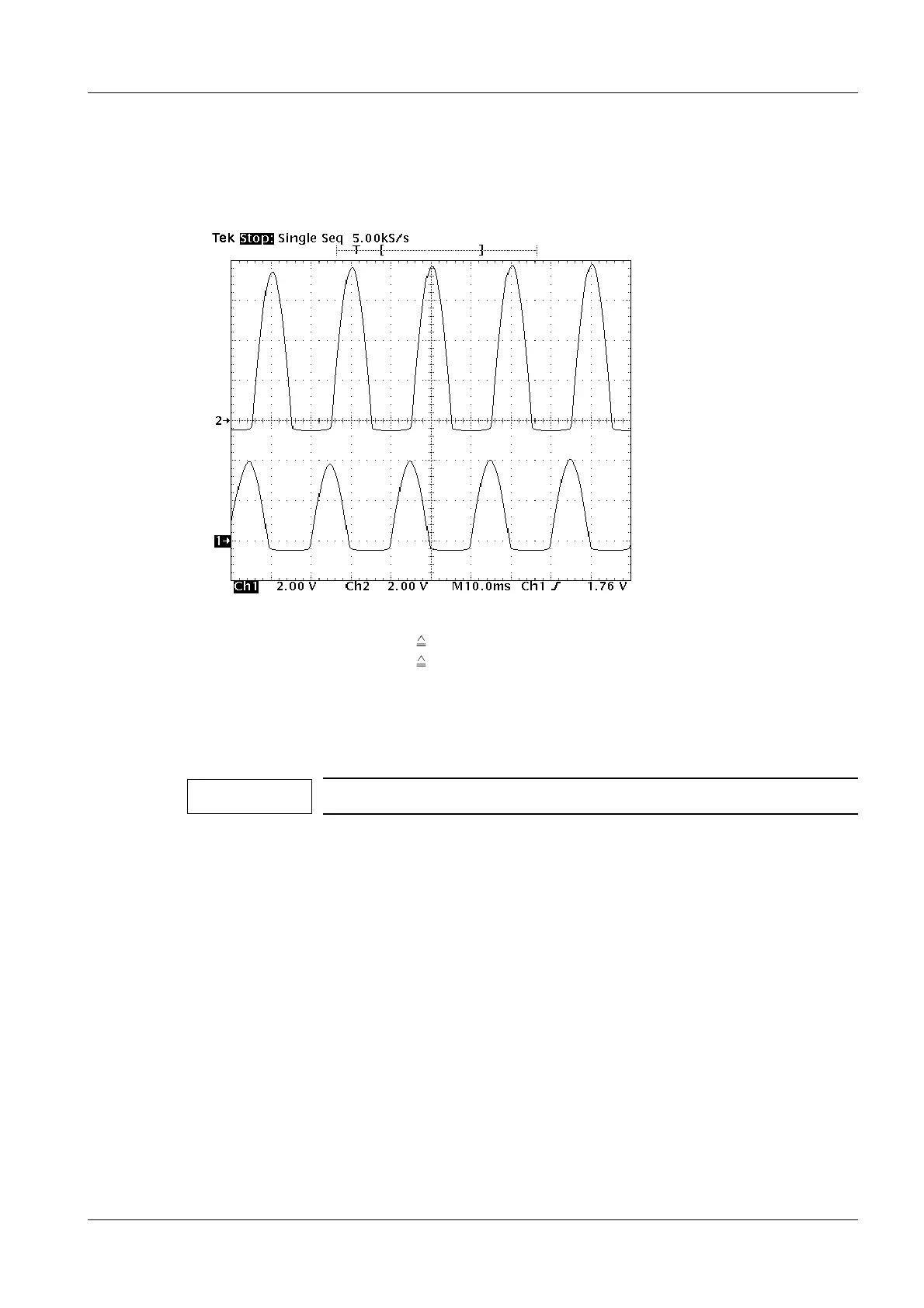

Fig. 5 shows the stator currents during rotating anode acceleration (230 V).
The currents are correspondingly lower at 100V line voltage.
Fig. 5
CH2 D915 test point "I1" (1 V 0.25 A)
CH1 D915 test point "I2" (1 V 0.25 A)
10 ms /Div
NOTICE
