Siemens POLYMOBIL Plus - Rotating Anode Starter: Brakes

POLYMOBIL Plus SPR8-125.061.02 Page 6 of 20 Siemens AG
Rev. 01 01.00 TD SD 24 Medical Engineering
5 - 6 Measurements
Brakes 5

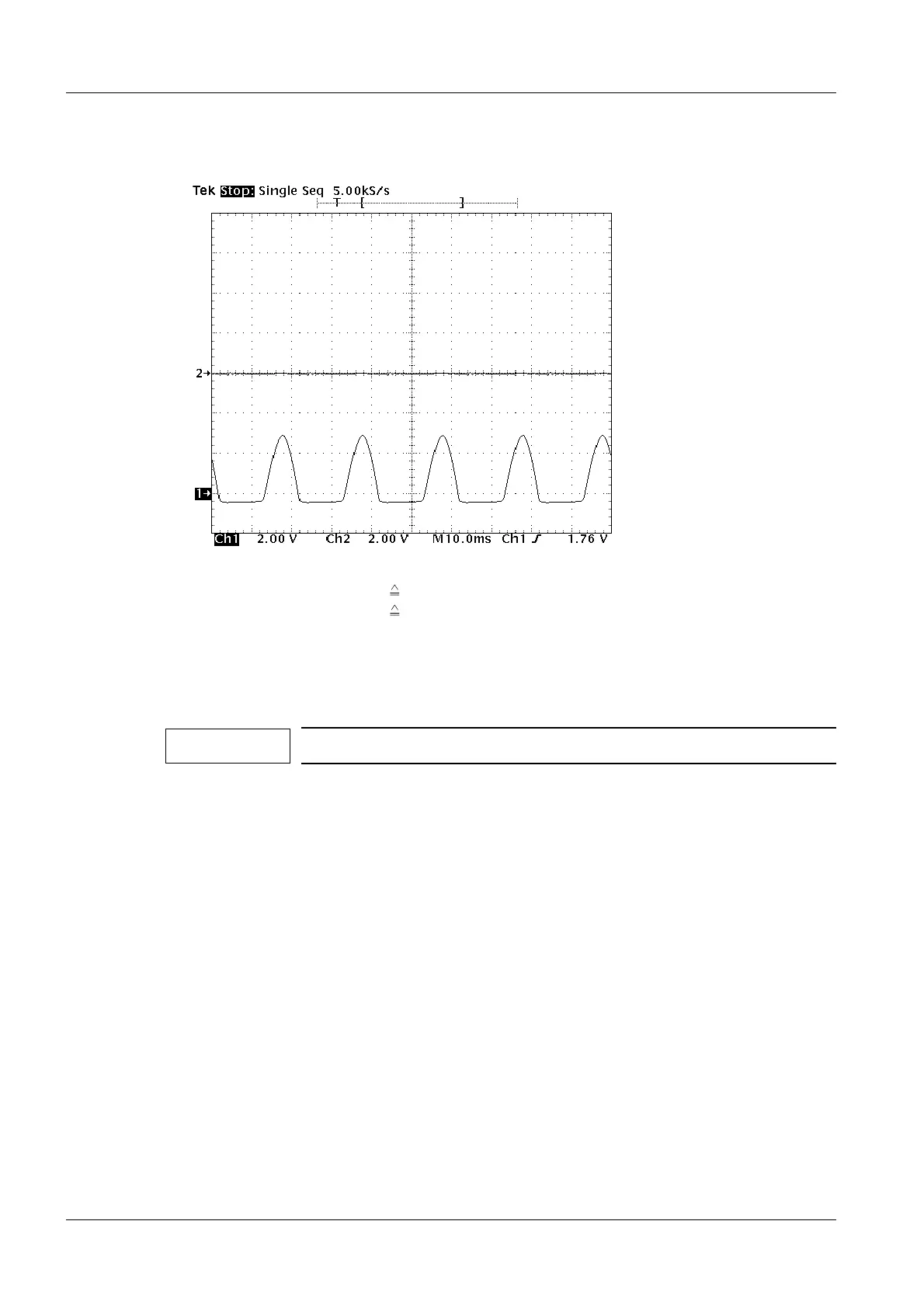

Fig. 6 shows the stator currents during braking (230 V)
The currents are correspondingly lower at 100V line voltage.
Fig. 6
CH2 D915 test point "I1" (1 V 0.25 A)
CH1 D915 test point "I2" (1 V 0.25 A)
10 ms /Div
NOTICE
