Siemens POLYMOBIL Plus - Filament Circuit Testing

Measurements 5 - 11
Siemens AG SPR8-125.061.02 Page 11 of 20 POLYMOBIL Plus
Medical Engineering Rev. 01 01.00 TD SD 24
Testing the filament circuit 5
Filament circuit in standby 5

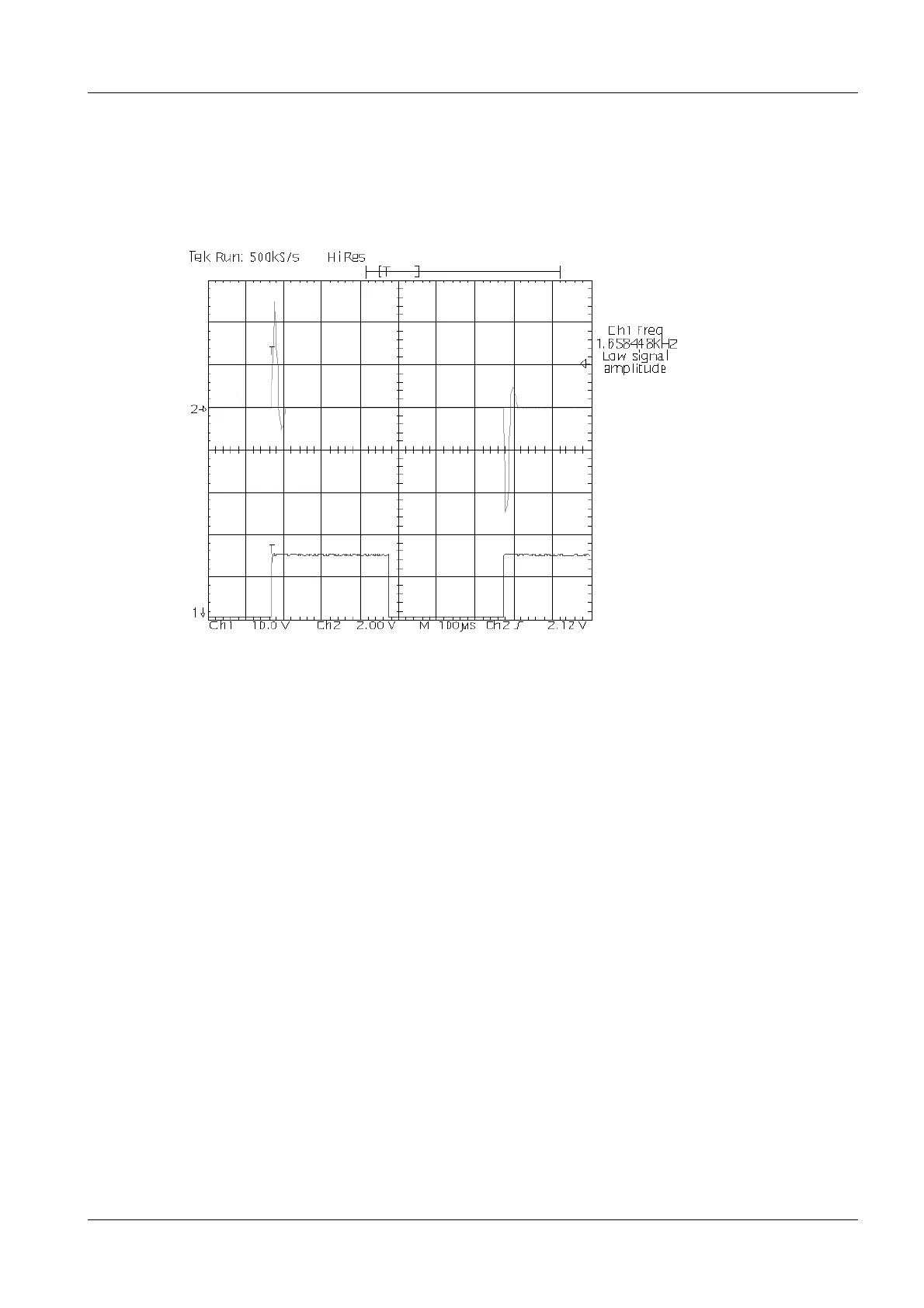

• Connect the oscilloscope to D915 at TP "CAL", "I" and "GND".
Filament inverter frequency CH1: D915 test point "CAL"
Filament current CH2: D915 test point "I"
Fig. 11
