6 - 4 Replacing important components
Replacing the lamp for the localizer 6
• The replacement light localizer lamp is located below the cassette module.
• Turn both knobs (8/Fig.6) to the end position and remove them.
• Remove the front panel after removing both screws (7/Fig.6) .
Caution: The front panel is connected to the collimator via a cable (9/Fig.7).
• Remove both screws (10/Fig.7) and take off the metal bracket for the temperature
switch).
• Take out the defective lamp (11/Fig. 7) and replace it with a new lamp.
• Attach the bracket and the front panel.
• Adjust both knobs and attach them.
• Check the function of the light localizer lamp.
• Check the considence of light and radiation fields (see "Considence of light and radiation
fields" in chapter 5).
Do not touch the glass envelope with your fingers.
9
10
11
7
8

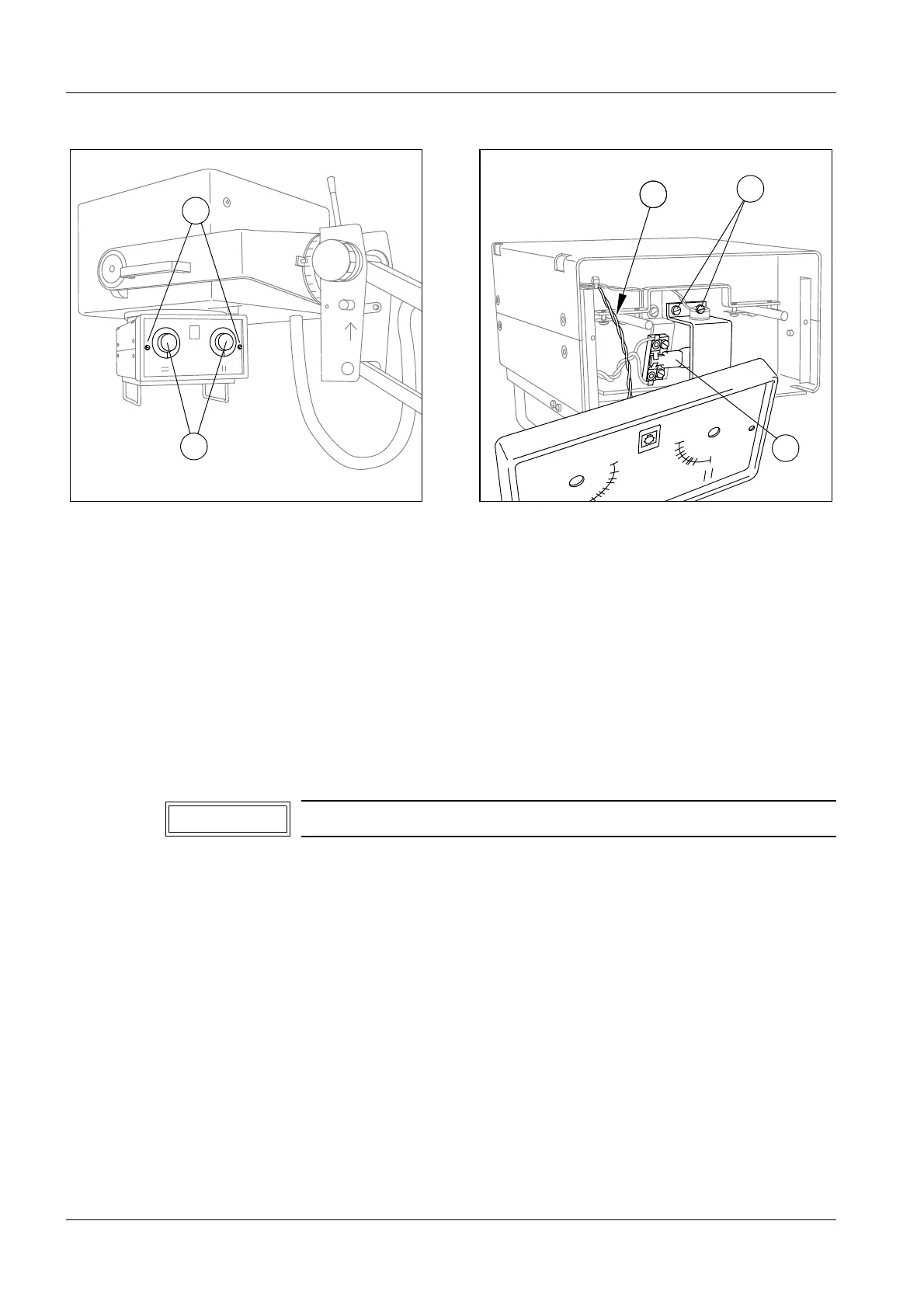

Fig. 6 Fig. 7
