2.2 Operation panel switches

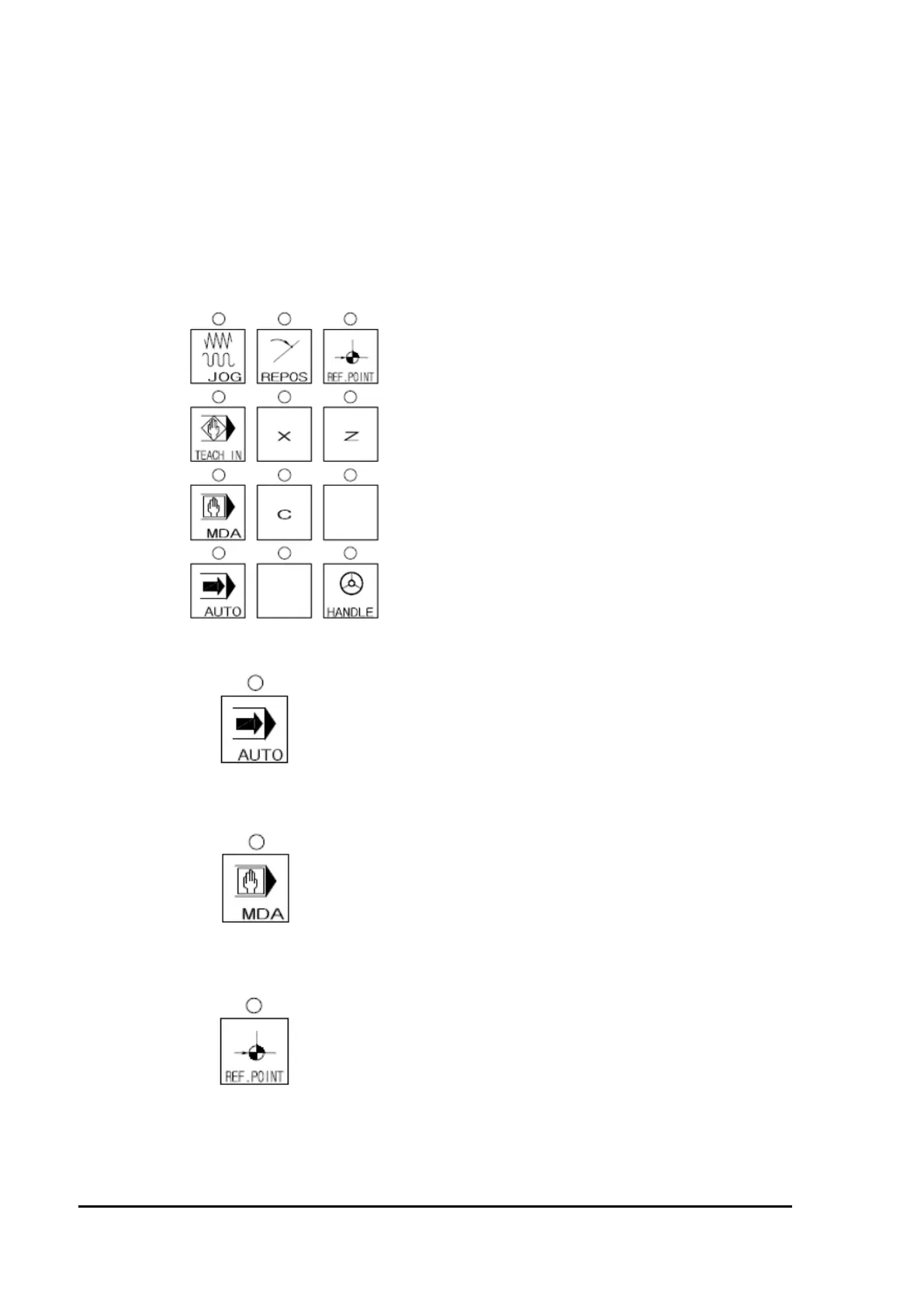

(1) Mode selection switch
Mode selection switch is the basic operating switch to select the operation type of
turning center
Each mode selection switch can be classified into 2 kinds of operation according to the
operation characteristics.
[Automatic Operation]
AUTO mode, MDA mode
[Manual Operating]
Handle mode, Jog mode, Reference point return
mode
Note) When supplying the power at the first time,
JOG mode will be selected automatically.
When pressing the AUTO mode switch, The LED is ON and the
machine will be changed to AUTO mode. AUTO mode can load
the machining program which is saved into memory and run the
automatic operation of loaded program. It is also possible to edit
the machining program.
When pressing the MDA mode switch, The LED is ON and the
machine will be changed to MDA mode.
MDA mode can input and execute a simple program.
When pressing the Reference Point Return Switch, The LED is ON
and the machine will be changed to Reference Point Return mode.
Reference point return mode can move each axis to the machine
reference point by manual operation.
