MAIN OPERATION PANEL | 1
Part 1 MAIN OPERATION PANEL
1. POWER SWITCHES

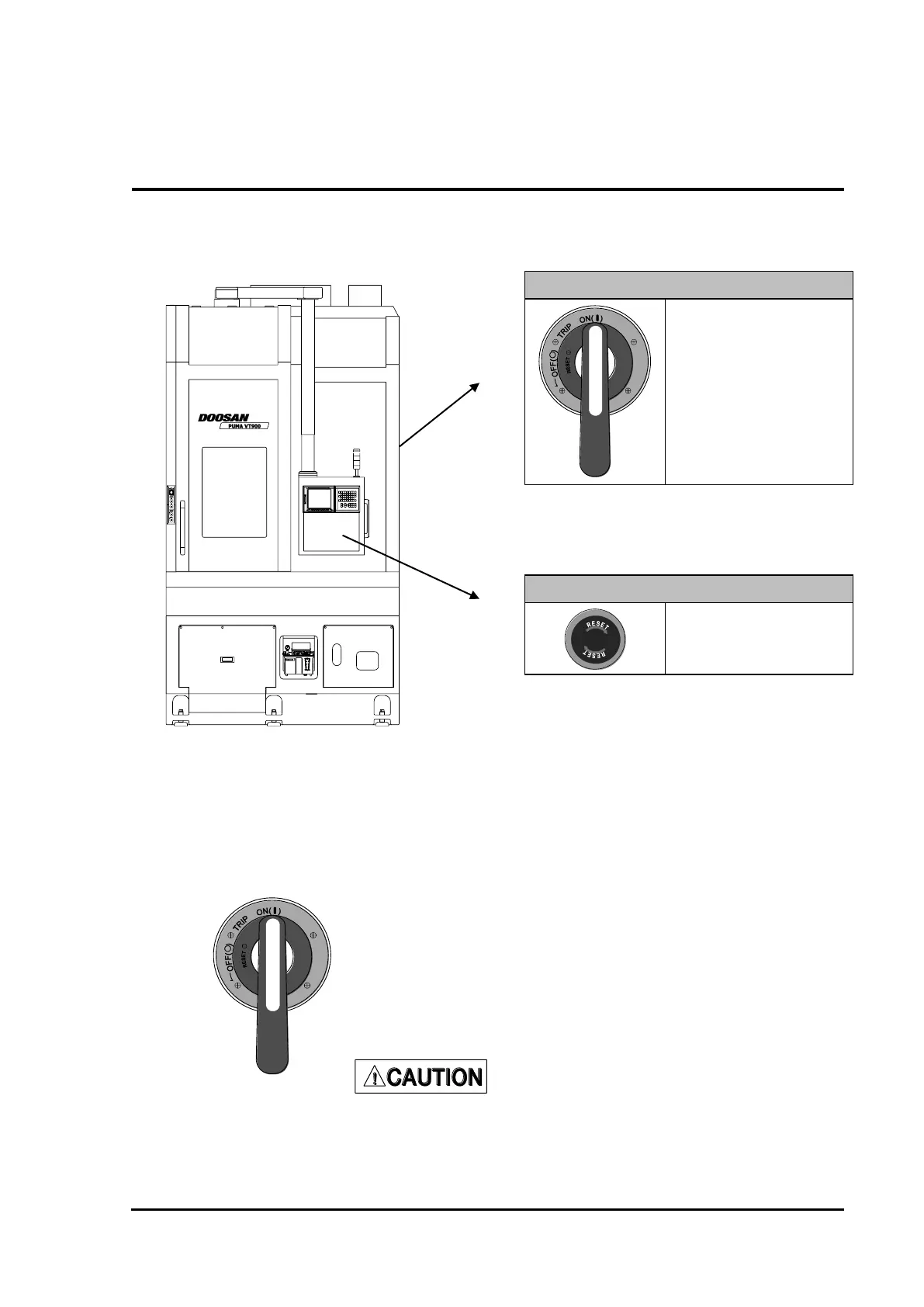

1.1 Layout of power switches
Turn on the power according to power ON procedure after being fully understood the safety
precautions for power ON.
1.2 Operation of power switches
This switch is for supplying the main power of turning center, it is
possible to turn ON/OFF the main power by MCCB handle attached to
the door of control panel. MCCB used in machine has been selected by
the power capacity for each models of turning center. Regarding the
power capacity for each models of turning center, refer to the electric
circuit diagram.
Be sure not to open the door under the state of ON, OFF and TRIP of
MCCB.
Located in the rear of machine
Main MCCB handle
In electric cabinet
Located in the front of machine
Emergency stop Switch
