OPERATION | 63
9.3 Optional Coolant
In order to operate optional coolant, the machine should satisfy all of the conditions listed
below.
- Machine ready status.
- The front door is closed.

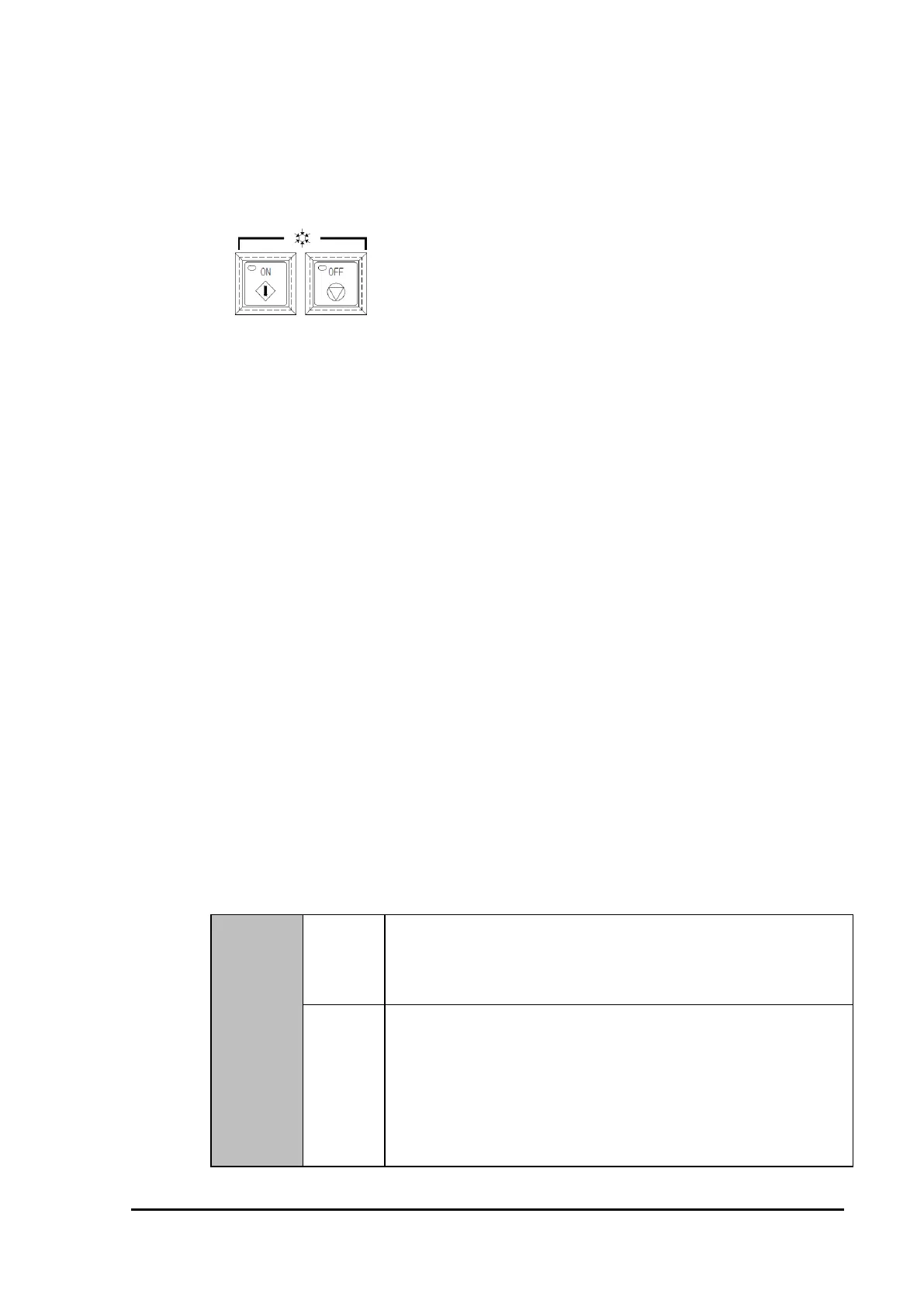

- All of the lamps in coolant operation switches shown in left side
are OFF.
(If not, OFF the lamp by pressing corresponding switch.)
(1) Automatic operation of optional coolant
Coolant can be operated using M-code listed below.
M07 ; Option or cool jet coolant “ON”
M09 ; Option or cool jet coolant “OFF”
(2) Stop operation and restarting of optional coolant
Coolant in operating can be stopped by M-code or stop switch in operation panel.
However, coolant can be also stopped by operation as follows.
- Emergency stop of machine.
- Press NC reset.
- Command M02 / M30.
- Command M00 / M01.
(Coolant stopped by M00 / M01 will be restarted when automatic operation is
restarted.)
9.4 Mutual operation between standard and optional coolant
Basically, standard and optional coolant is possible to do automatic command individually
and both coolants commonly use “M09” as stop command. In case of setting machine data
MD14512[5].2 to “1”, only one coolant between both coolants is possible to do automatic
command. If a coolant is commanded when another coolant is in operating, coolant in
operating will be stop and newly commanded coolant will be operated.
Individual command of standard and optional coolant is possible
to do.
Example) M08 ; Standard coolant “ON”
M07 ; Option coolant “ON”
M09 ; Standard & option coolant “OFF”
Only one coolant between standard and optional coolant can be
commanded.
Example)
M08 ; Standard coolant “ON”
M07 ; Optional coolant “ON” & standard
coolant “OFF”
M08 ; Standard coolant “ON” & Optional
coolant “OFF”
M09 ; Standard coolant “OFF”
