Installing the Device
2.4.3Mounting the Device to a Panel
To mount the device to a DIN rail, do the following:
1. Align the slot in the bracket with the DIN rail.
1
1
2
1
DIN Rail
2
DIN Rail Bracket

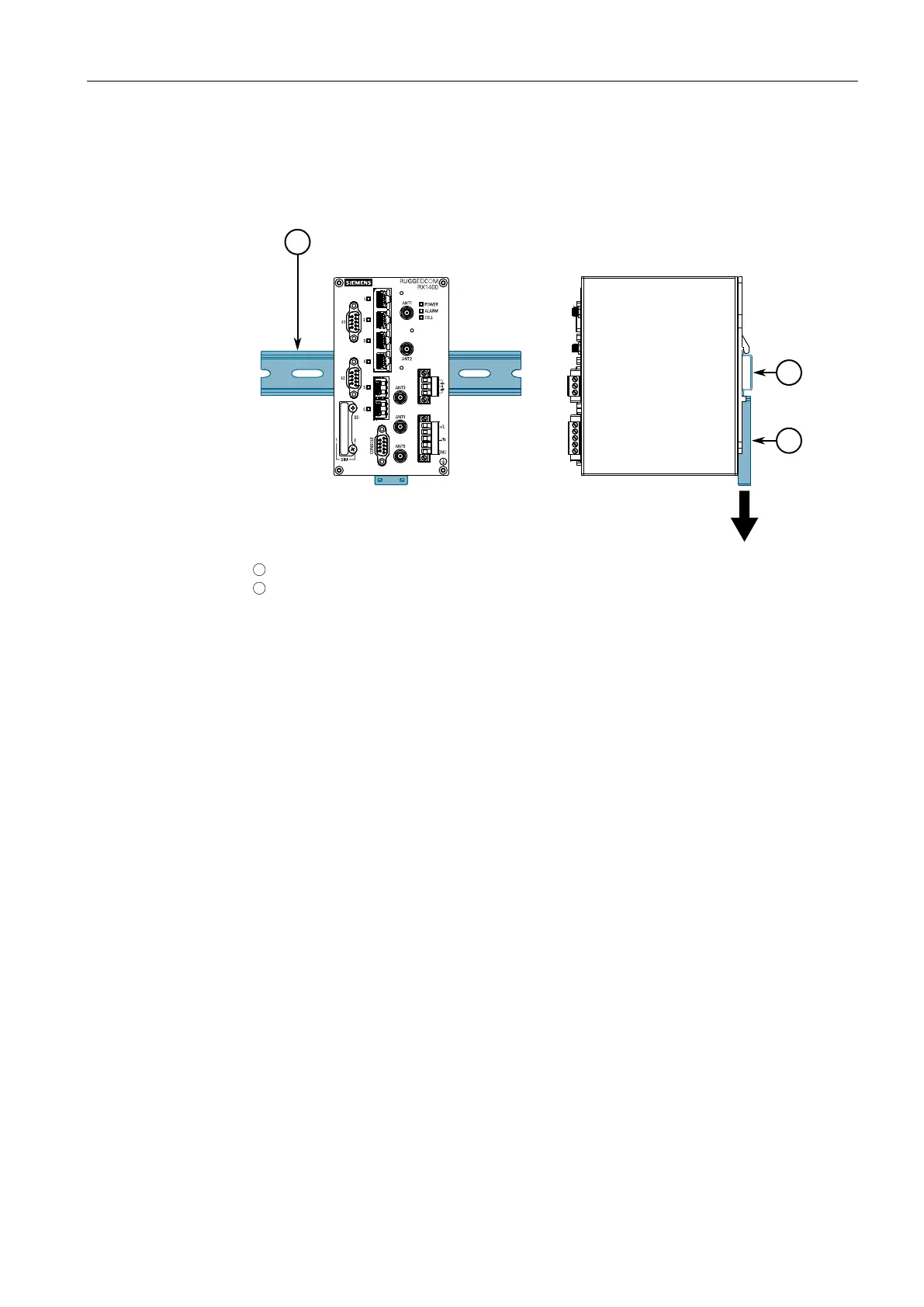

Figure2.3 DIN Rail Mounting
2. Pull the release on the bracket down and slide the device onto the DIN rail. Let
go of the release to lock the device in position. If access to the release is limited,
use a slotted screwdriver or a similar tool to reach the release.
2.4.3 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RX1400 can be equipped with panel
adapters pre-installed on each side of the chassis. The adapters allow the device to
be attached to a panel using screws.
