Installing the Device
2.5.5Connecting WLAN Antennas
2. If required, connect the optional lightning arrestor, line amplifier or bandpass fil-
ter to the antenna.
4
1
1
3
3
5
2
6
5
1
Drain Wire
2
RUGGEDCOM RX1400
3
Shielded Coaxial Cable
4
Lightning Protector, Line Amplifier or Bandpass Filter
5
Ground Wire
6
GPS Antenna

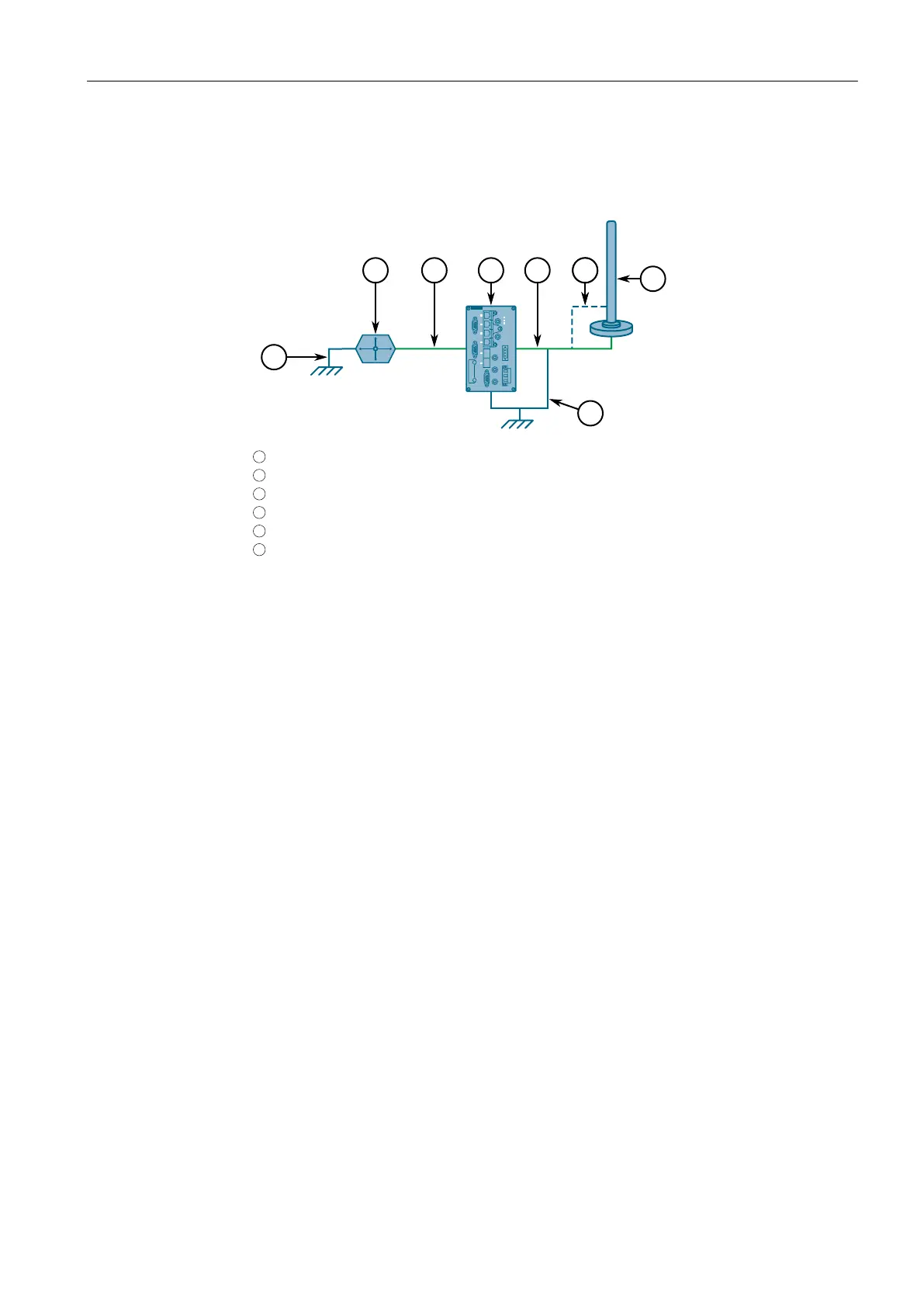

Figure2.7 Antenna and Lightning Protector Assembly (Optional)
3. Using shielded coaxial cables, connect the antenna assembly to the ANT2 port
on the device.
2.5.5 Connecting WLAN Antennas
Install a single WLAN antenna for Single-Input Single-Output (SISO) or dual antennas
for Multiple-Input Multiple-Output (MIMO).
To install a WLAN antenna, do the following:
1. Select an appropriate antenna. For a list of available WLAN antennas, refer to
"Available Antennas (Page 14)".
2. Mount the antenna to a pole or wall in an area that provides good signal cover-
age and is away from any signal noise emanating from other communications
equipment.
20
RUGGEDCOM RX1400
Installation Manual, 09/2019, C79000-G8976-1103-13
