Installing the Device
2.5.1Antenna Ports
2.5.1 Antenna Ports
The RUGGEDCOM RX1400 features the following antenna ports:
1
2
3
4
5
1
ANT1 Port
2
ANT2 Port
3
ANT3 Port
4
ANT4 Port
5
ANT5 Port

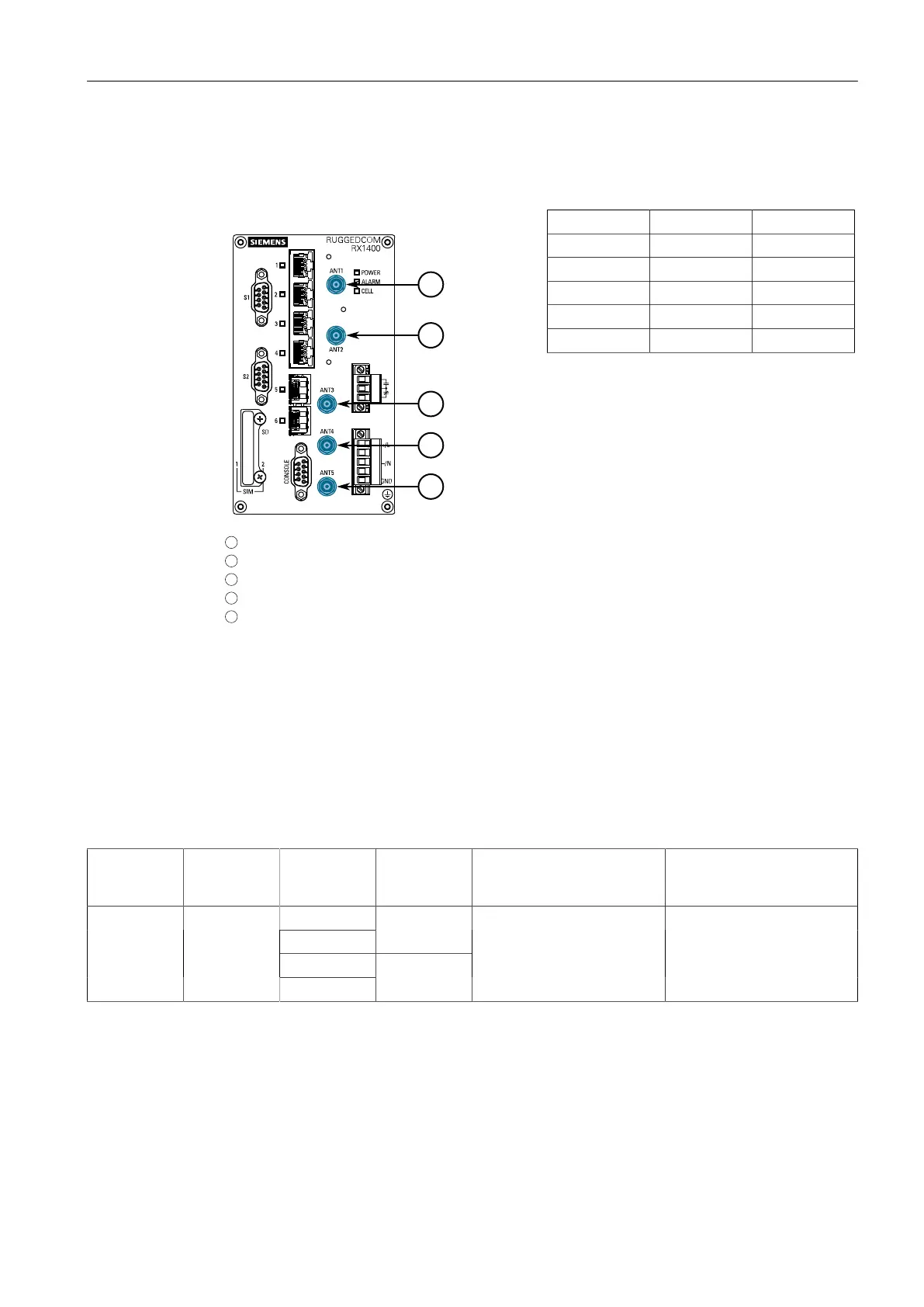

Figure2.5 Antenna Ports

Port Type Function
ANT1 SMA LTE SISO
ANT2 SMA GPS
ANT3 RP/SMA WLAN SISO
ANT4 RP/SMA WLAN MIMO
ANT5 SMA LTE MIMO
2.5.2 Available Antennas
The RUGGEDCOM RX1400 supports the following antennas.
Cellular, GPS and WLAN Antennas
Antenna Type Operating
Frequen-
cy (GHz)
Gain (dBi) Article Number Reference
2.4
5.0
2.5
0.7 to 1.0
AN-
T1995-4MM
Omni-Di-
rectional
1.7 to 2.7
3.0 to 4.0
6GK6000-8NS01-1AA0 https://support.indus-
try.siemens.com/cs/ww/en/-
view/109748485
14
RUGGEDCOM RX1400
Installation Manual, 09/2019, C79000-G8976-1103-13
