Communication Ports
4
The RUGGEDCOM RX1400 can be equipped with various types of communication
ports to enhance its abilities and performance.
1
5
4
2
6
7
8
9
3
1
Serial Ports
2
Access Plate
3
ANT1 Port
4
Fast Ethernet Ports
5
ANT2 Port
6
SFP Transceiver Ports
7
ANT3 Port
8
ANT4 Port
9
ANT5 Port

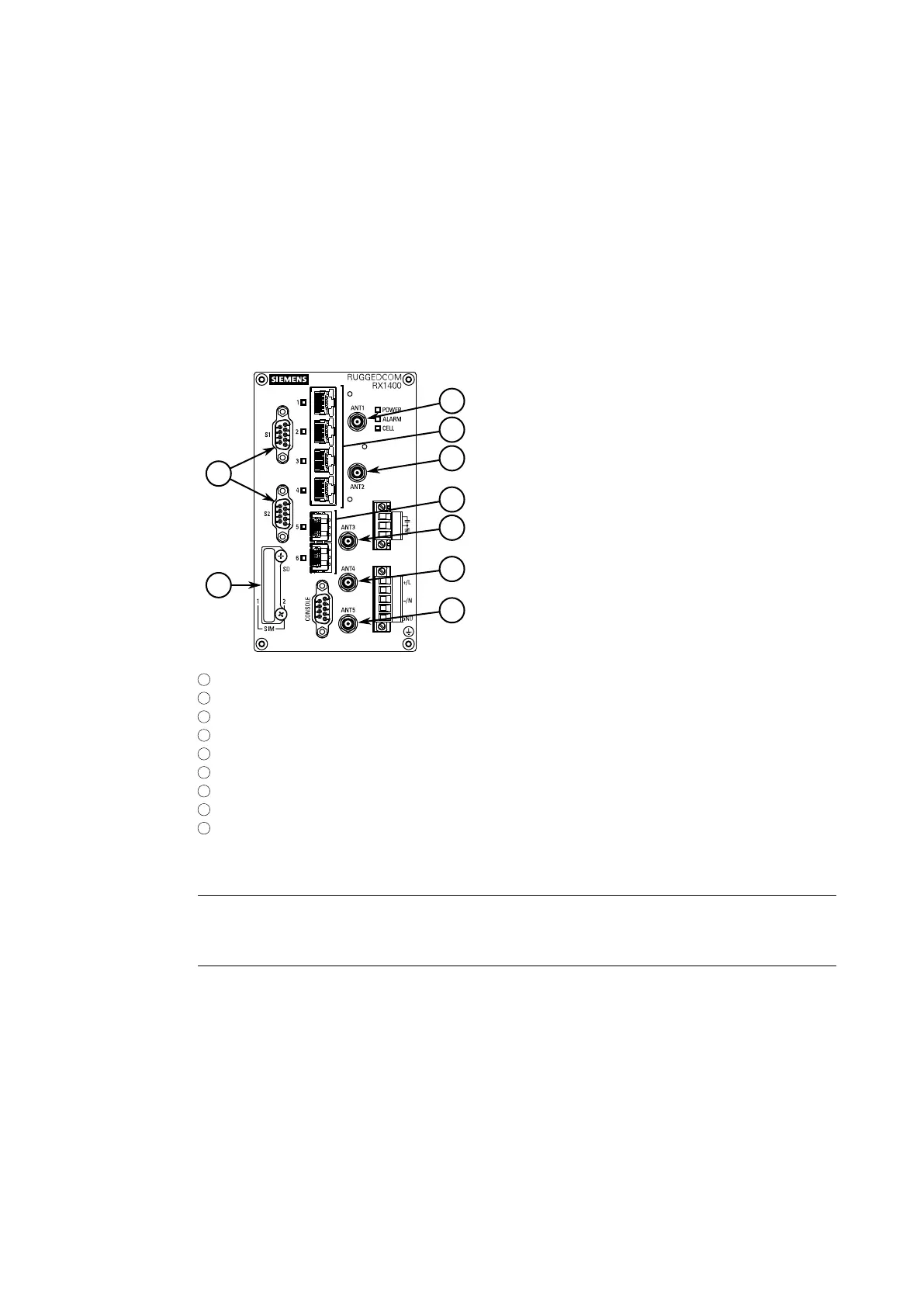

Figure4.1 Port Assignment
Note
For information about the LTE MAIN, LTE MIMO or GPS ports and the cellular mo-
dem, refer to "Cellular Modem Specifications (Page 36)".
4.1 Fast Ethernet Ports
The RUGGEDCOM RX1400 features four 10/100Base-TX fast Ethernet (FE) ports with
RJ45 connectors. The RJ45 connectors are directly connected to the chassis ground
on the device and can accept CAT-5 shielded twisted-pair (STP) cables.
For technical specifications, refer to "Fast Ethernet Port Specifications (Page 35)".
