5-97
System Manual
C79000-G8576-C199-06
When the PG submodule is delivered, the jumpers are set as shown in the
following figure. As a rule, therefore, you can use the PG submodule
immediately.
Backplane Connector
Front Connector
15-Pin Sub. D-Type
J1
3
2
1

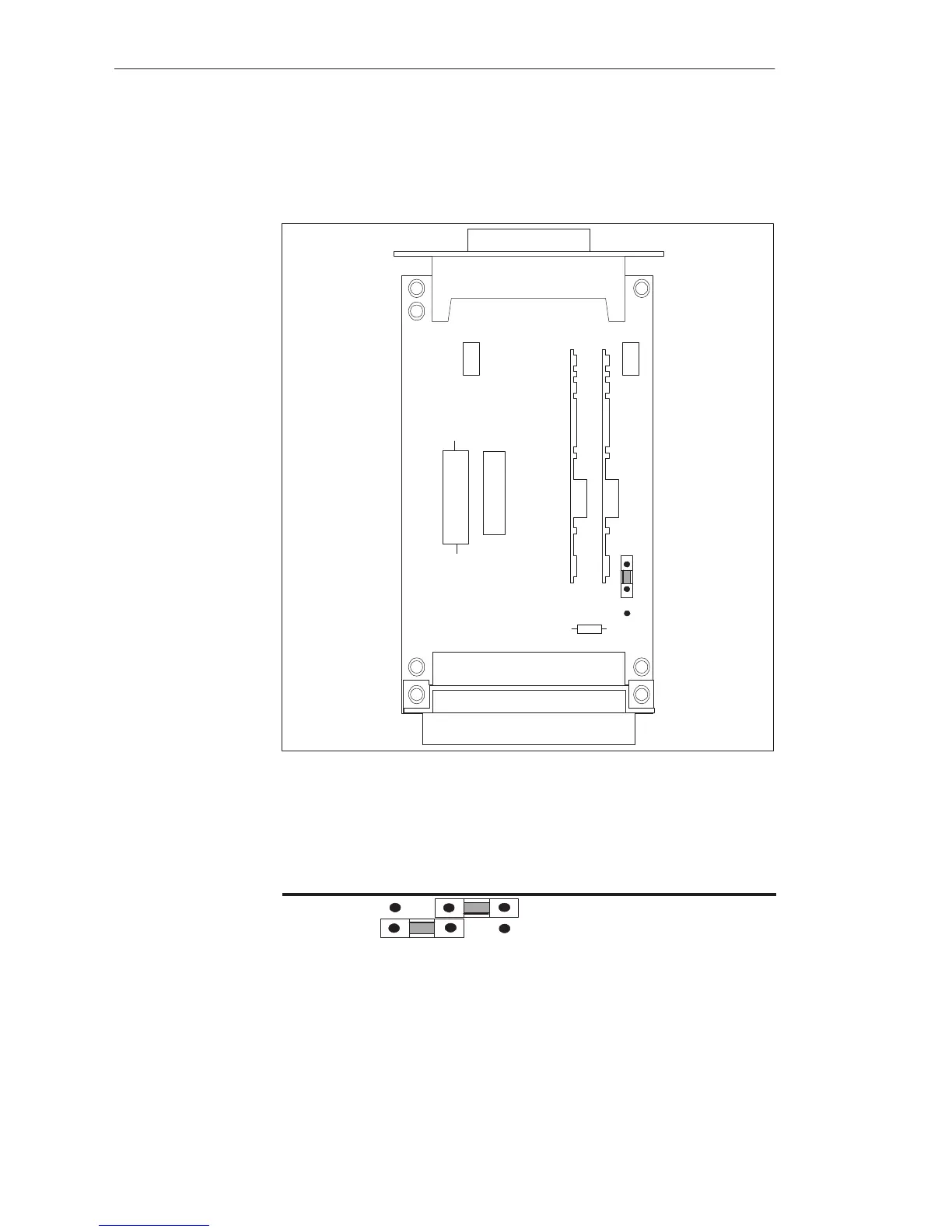

Figure 5-12 PG Submodule: Jumper Settings when Delivered
J1 is set to select whether the PG submodule is to be operated in the
CPU 928B/CPU 948 or in the CPU 945:
123
J1 Operation in CPU 928B/CPU 948
Operation in CPU 945
Jumper Settings
on the PG
Submodule
CPUs, Memor
Cards, Memor
Submodules, Interface Submodules
