10-12
System Manual
C79000-G8576-C199-06

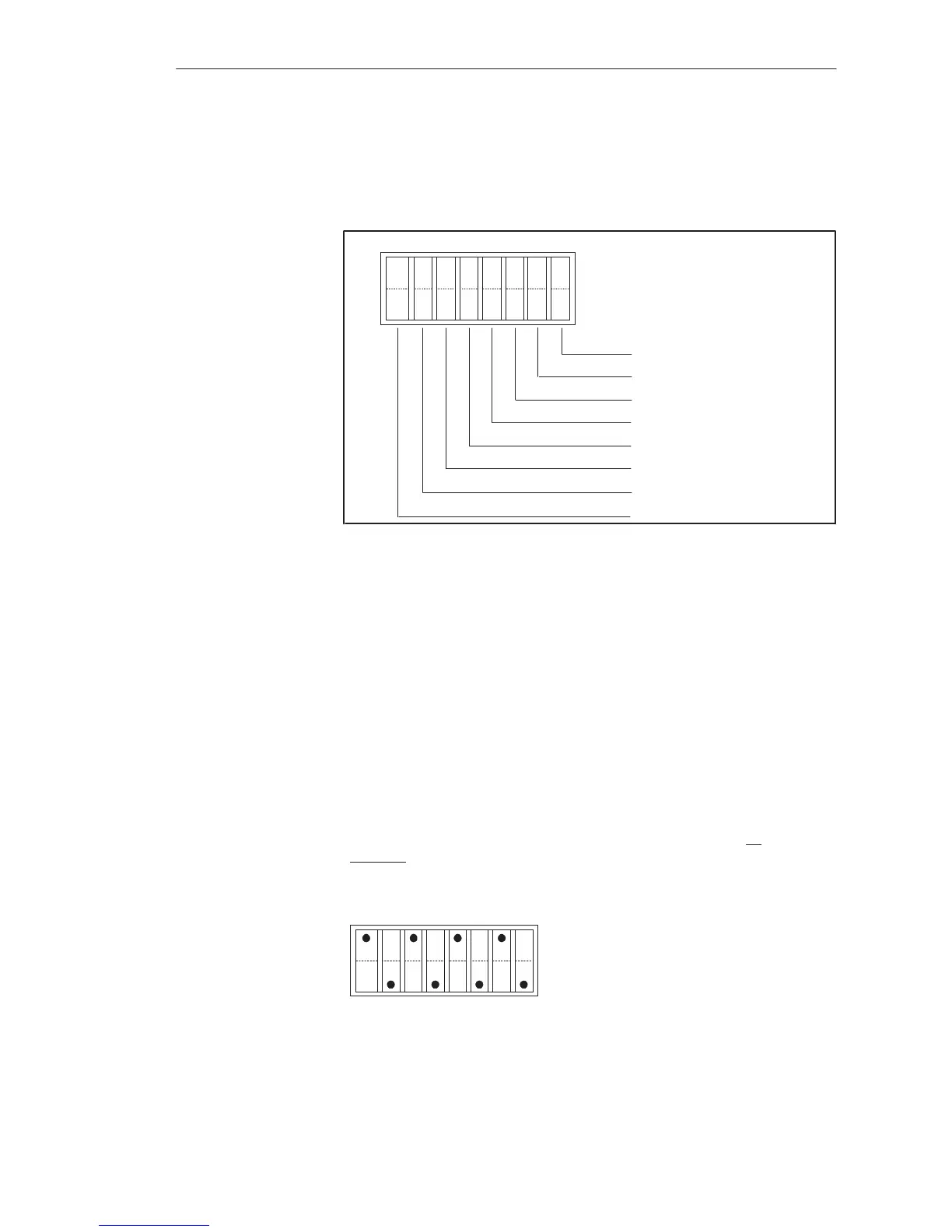

10.3.2 Setting the Address Switches S1, S2, S3, S4
The addresses are set as one-byte addresses as in the case of I/O modules.
ADB 7 Significance 128
ADB 0 Significance 1
ADB 5 Significance 32
ADB 6 Significance 64
ADB 4 Significance 16
ADB 1 Significance 2
ADB 2 Significance 4
ADB 3 Significance 8
12345678
ON
OFF
The significance of the rockers pressed down to ON at the switches must be
added.
Address 85 is to be set.
rockers to be pressed down to ON Significance
1 (ADB 0) 1
3 (ADB 2) 4
5 (ADB 4) 16
7 (ADB 6) 64
85
1234567
8
ON
OFF
Example
Monitorin
g
Module
