Siemens S5-135U/155U - ModesJumper Assignments of the IM 301

7-11
System Manual
C79000-G8576-C199-06
7.2.2 Modes/Jumper Assignments of the IM 301
X1
X2
7
16 9
8
1
J3
J1
X3
X4
LED1
LED2
27
16 9
8
1
J4 *)
*) Not on the IM 301-5

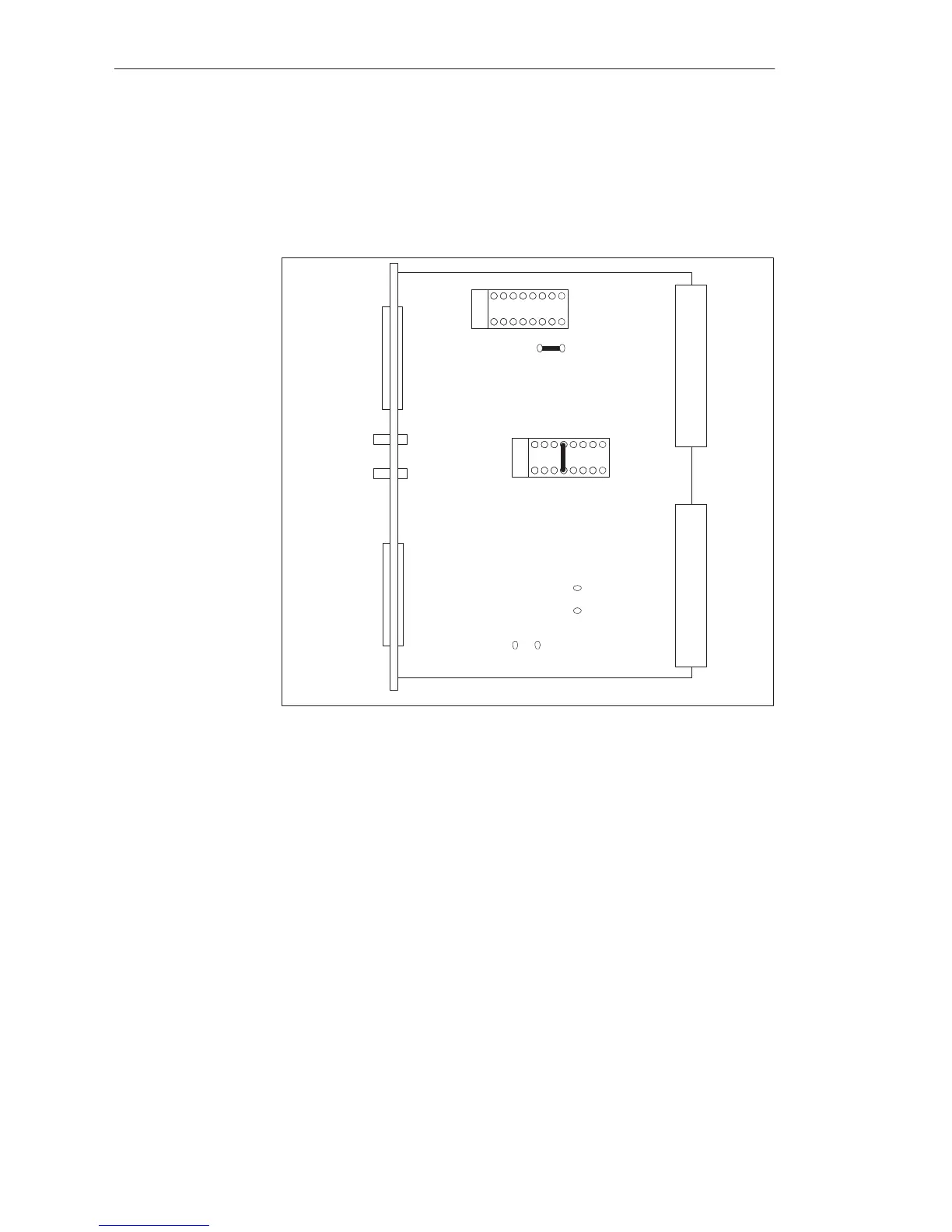

Figure 7-8 Location of Jumpers on the IM 301 (when Delivered)
You must insert jumper 8-9 at location 7 for address setting on the extended
I/O area (O area). All other jumpers must remain in the factory settings.
Jumper
Assignments
Interface Modules
