9-81
System Manual
C79000-G8576-C199-06
Set the data format by means of switch S9:
 Two’s complement
12-bit two’s complement representation
(Range: 0 ... 4095 units (unipolar) or - 2048 ... + 2047 units (bipolar))
 Value and sign
11-bit value and 1 sign bit
(Range: 0 ... 4095 units (unipolar) or - 2048 ... + 2047 units (bipolar))
 Binary
12-bit binary number
(Range: 0 ... 4095 units for both unipolar and bipolar measured variables)

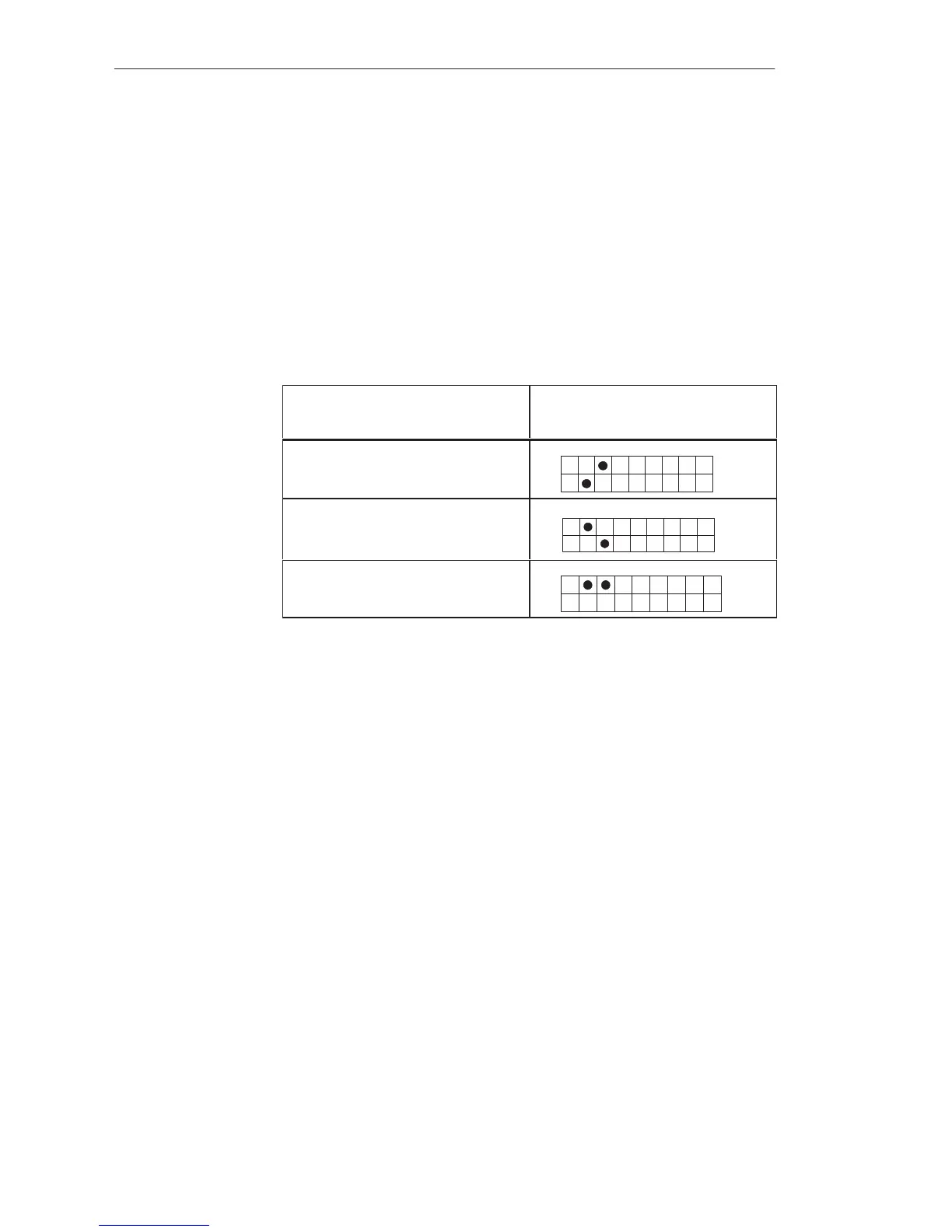

Data Format S9 Switch Setting
Two’s complement
1
9
ON
OFF
Value and sign
1
9
ON
OFF
Binary
1 9
ON
OFF
Setting the Data
Format
Analo
g
Input/Output Modules
