Connector assignments of the 6ES5 955-3NA12 power supply unit

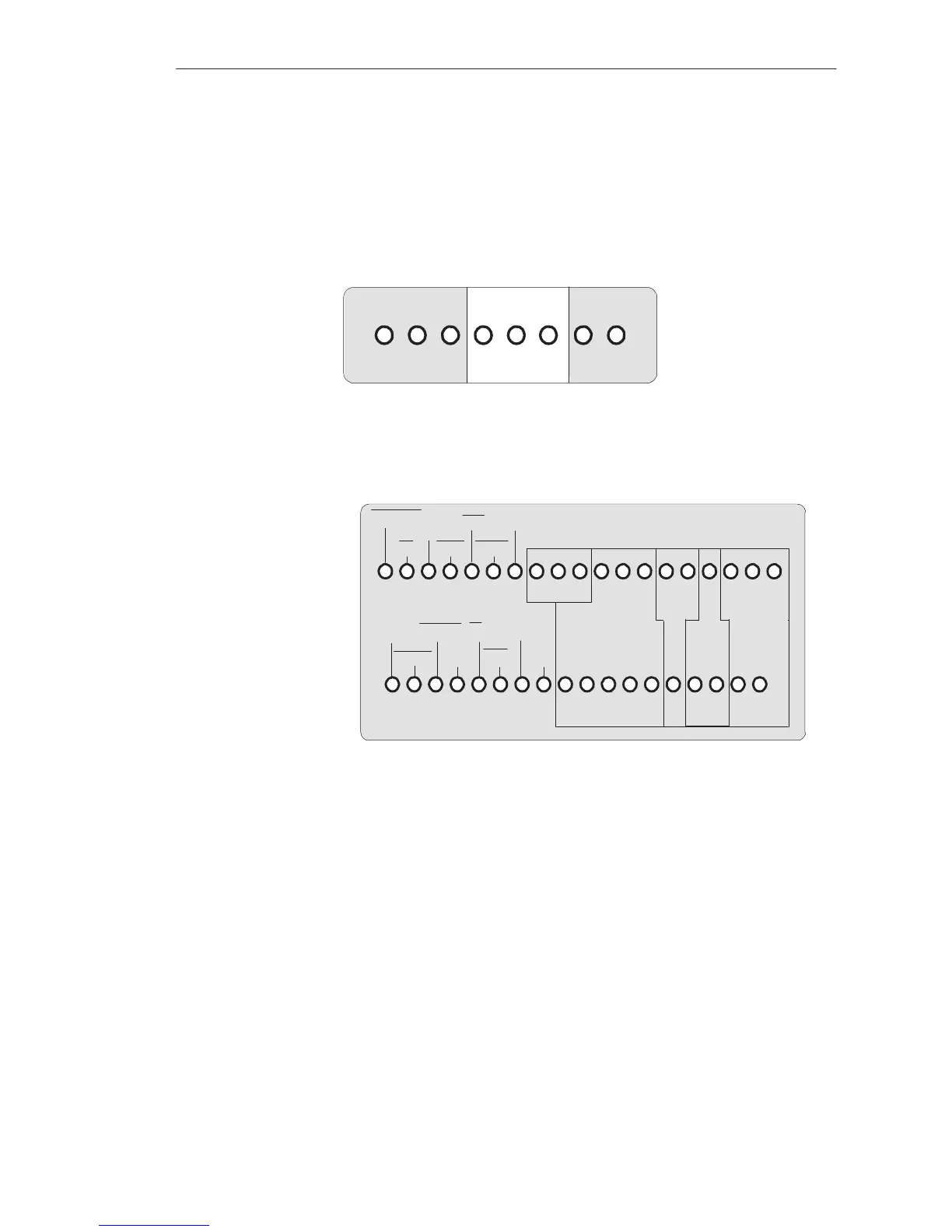

The terminals of the supply lines between the power supply unit and the
backplane are in an 8-way connector (subminiature, fitted with 8 high-current
contacts, Series D to MIL-C24308).
12345678
M2 (0V) 5V/10A
The signal terminals of the power supply unit are in a 37-way connector
(plug connector, 37-way, Series D to MIL-C24308).
BASP
M2 (0V)
12345678
910111213
14 15 16 17 18 19
DSI
GEP
+15 V
24V/0.8A
BASP A U BATT
CPKL BAU
20 21 22 23 24 25 26
27 28 29 30 31
32 33 34 35 36 37
–15V
RLSA
RESET
RESET A
DS NAU
HOLD
unas-
signed
RESIN
IR
Connector X1
Connector X2
Connector Assi
nments
