Standard I/O Modules
24 Unrestricted SICAM A8000 Series, SICAM I/O Modules
DC8-012-2.06, Edition 09.2019

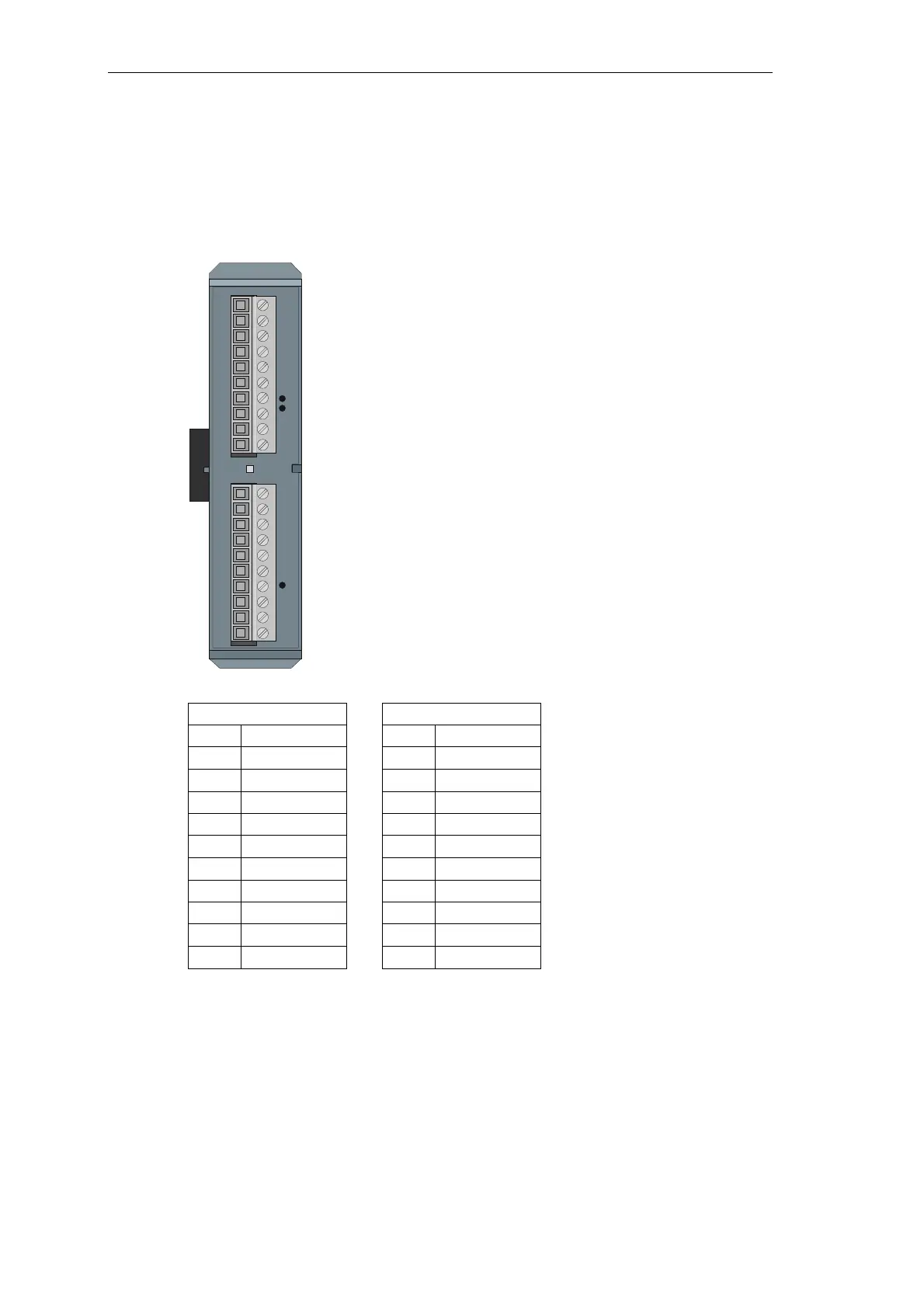

2.1.4 Pin Assignment and Display
The process signals must be connected to four 10-pin screw terminals. The pin assignment of
the peripheral connectors is described in the following table.
X1 X2
Pin Signal Pin Signal
10 COM00 10 COM10
9 COM00 9 COM10
8 IN D07 8 IN D17
7 IN D06 7 IN D16
6 IN D05 6 IN D15
5 IN D04 5 IN D14
4 IN D03 4 IN D13
3 IN D02 3 IN D12
2 IN D01 2 IN D11
1 IN D00 1 IN D10
IN D00…IN D07 binary inputs group 0, inputs 0…7
IN D10…IN D17 binary inputs group 1, inputs 10…17
COM00 common supply of group 0
COM10 common supply of group 1
RY readiness
RY
SICAM A8000 DI-8110
X2
X1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
