Siemens SICAM A8000 Series User Manual

Standard I/O Modules
52 Unrestricted SICAM A8000 Series, SICAM I/O Modules
DC8-012-2.06, Edition 09.2019
2.7.4 Pin Assignment and Display
The process signals must be connected to 4 pieces 4-pin screw terminals. The pin
assignment of the peripheral connectors is described in the following table.
X1 X2
Pin Signal Pin Signal
4 IN V0 U- 4 IN V1 U-
3 IN V0 I- 3 IN V1 I-
2 IN V0 I+ 2 IN V1 I+
1 IN V0 U+ 1 IN V1 U+
X3 X4
Pin Signal Pin Signal
4 IN V2 U- 4 IN V3 U-
3 IN V2 I- 3 IN V3 I-
2 IN V2 I+ 2 IN V3 I+
1 IN V2 U+ 1 IN V3 U+
IN V0 U+/-…IN V3 U+/- analog voltage inputs 0…3
IN V0 I+/-…IN V3 I+/- analog current inputs 0…3
RY readiness
RY

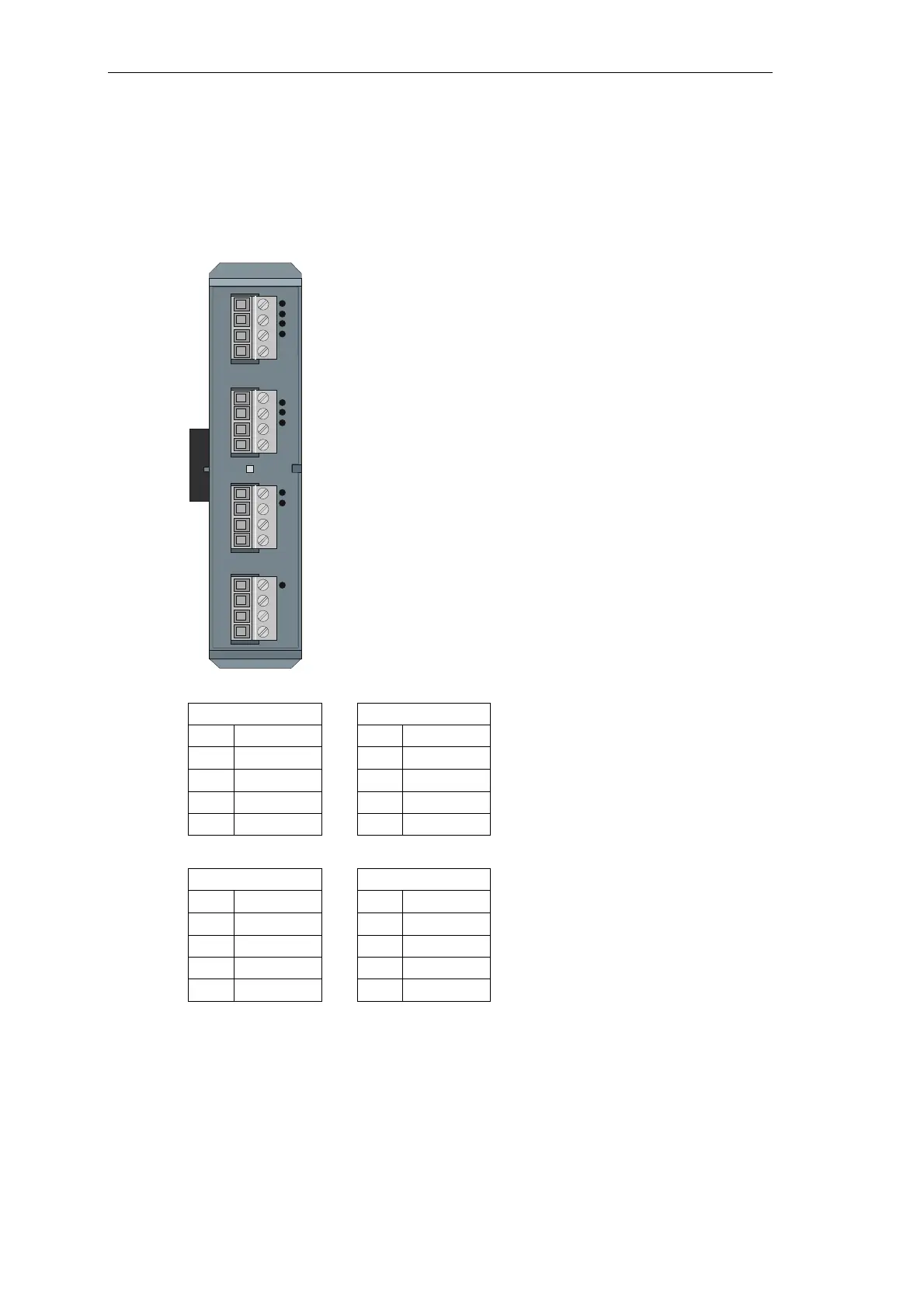

SICAM A8000 AI-8320
X4
X3
X2
X1
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
