Siemens SICAM A8000 Series - Pin Assignment and Display

Standard I/O Modules
SICAM A8000 Series, SICAM I/O Modules Unrestricted 47
DC8-012-2.06, Edition 09.2019
2.6.4 Pin Assignment and Display

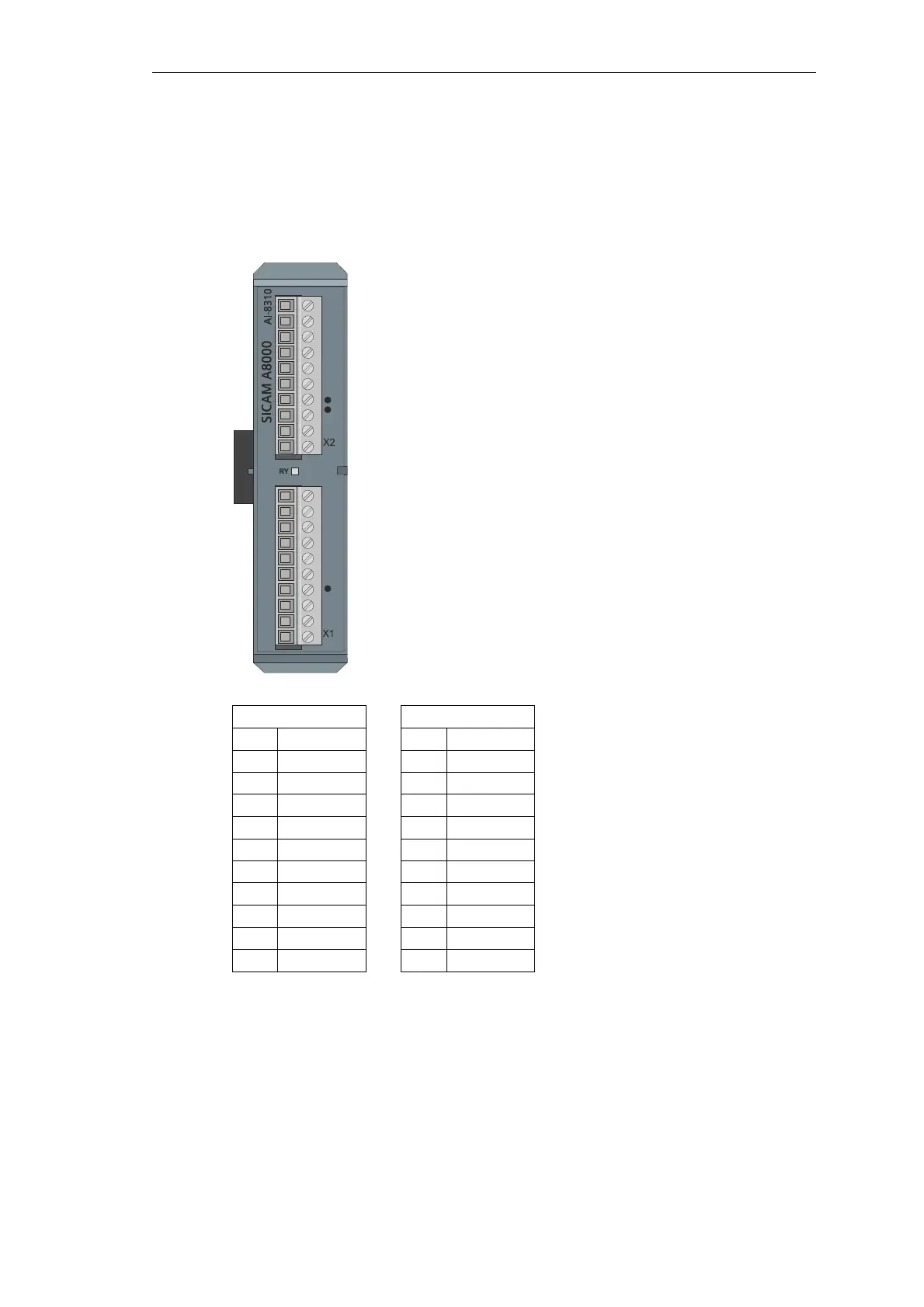

The process signals must be connected to 2 pieces 10-pin screw terminals. The pin
assignment of the peripheral connectors is described in the following table.
X1 X2
Pin Signal Pin Signal
10 IREF1- 10 IREF3-
9 IN V1- 9 IN V3-
8 IN V1+ 8 IN V3+
7 IREF1+ 7 IREF3+
6 n.c. 6 n.c.
5 n.c. 5 n.c.
4 IREF0- 4 IREF2-
3 IN V0- 3 IN V2-
2 IN V0+ 2 IN V2+
1 IREF0+ 1 IREF2+
IREF0…IREF3 analog current outputs
IN V0…IN V03 analog voltage inputs
n.c. not used
RY readiness
