Siemens SICAM A8000 Series User Manual

Standard I/O Modules
32 Unrestricted SICAM A8000 Series, SICAM I/O Modules
DC8-012-2.06, Edition 09.2019
2.3.4 Pin Assignment and Display
The process signals must be connected to 2 pieces 10-pin screw terminals. The pin
assignment of the peripheral connectors is described in the following table.
X1 X2
Pin Signal Pin Signal
10 COM00 10 COM10
9 COM00 9 COM10
8 IN D07 8 IN D17
7 IN D06 7 IN D16
6 IN D05 6 IN D15
5 IN D04 5 IN D14
4 IN D03 4 IN D13
3 IN D02 3 IN D12
2 IN D01 2 IN D11
1 IN D00 1 IN D10
IN D00…IN D07 binary inputs group 0, inputs 0…7
IN D10…IN D17 binary inputs group 1, inputs 10…17
COM00 common supply of group 0
COM10 common supply of group 1
RY readiness
RY

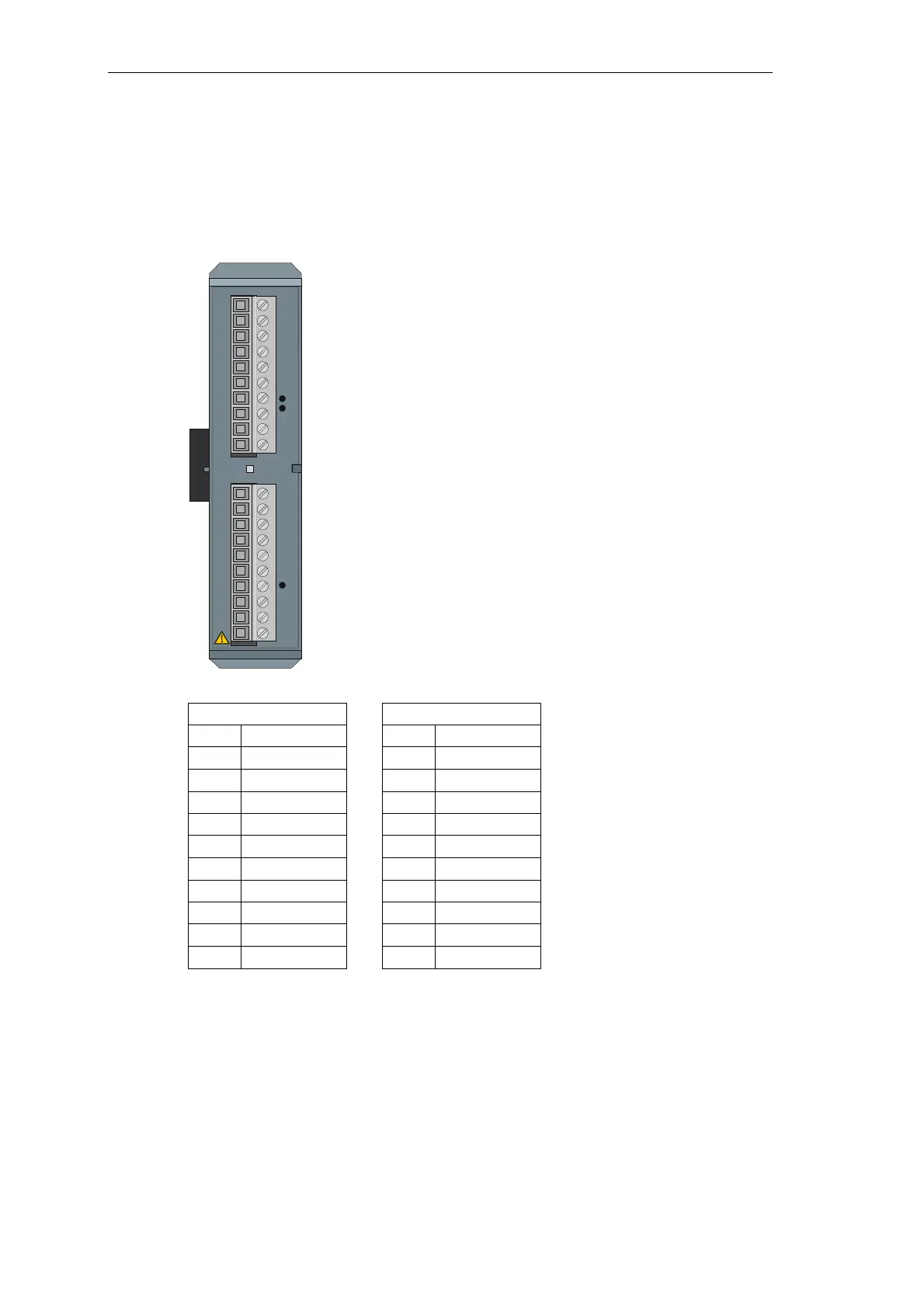

SICAM A8000 DI-8112
X2
X1
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10

Siemens SICAM A8000 Series Specifications

General

Modular Design	Yes
Operating Temperature Range	-40°C to +70°C
Communication Interface	Ethernet, RS485, RS232
Protection Class	IP20
Communication Protocols	IEC 61850, DNP3, Modbus, IEC 60870-5-104
Power Supply	24 V DC, 230 V AC
Mounting	DIN rail
Digital Inputs	Up to 32
Digital Outputs	Up to 16
Input Voltage Range	24 V DC to 230 V AC
