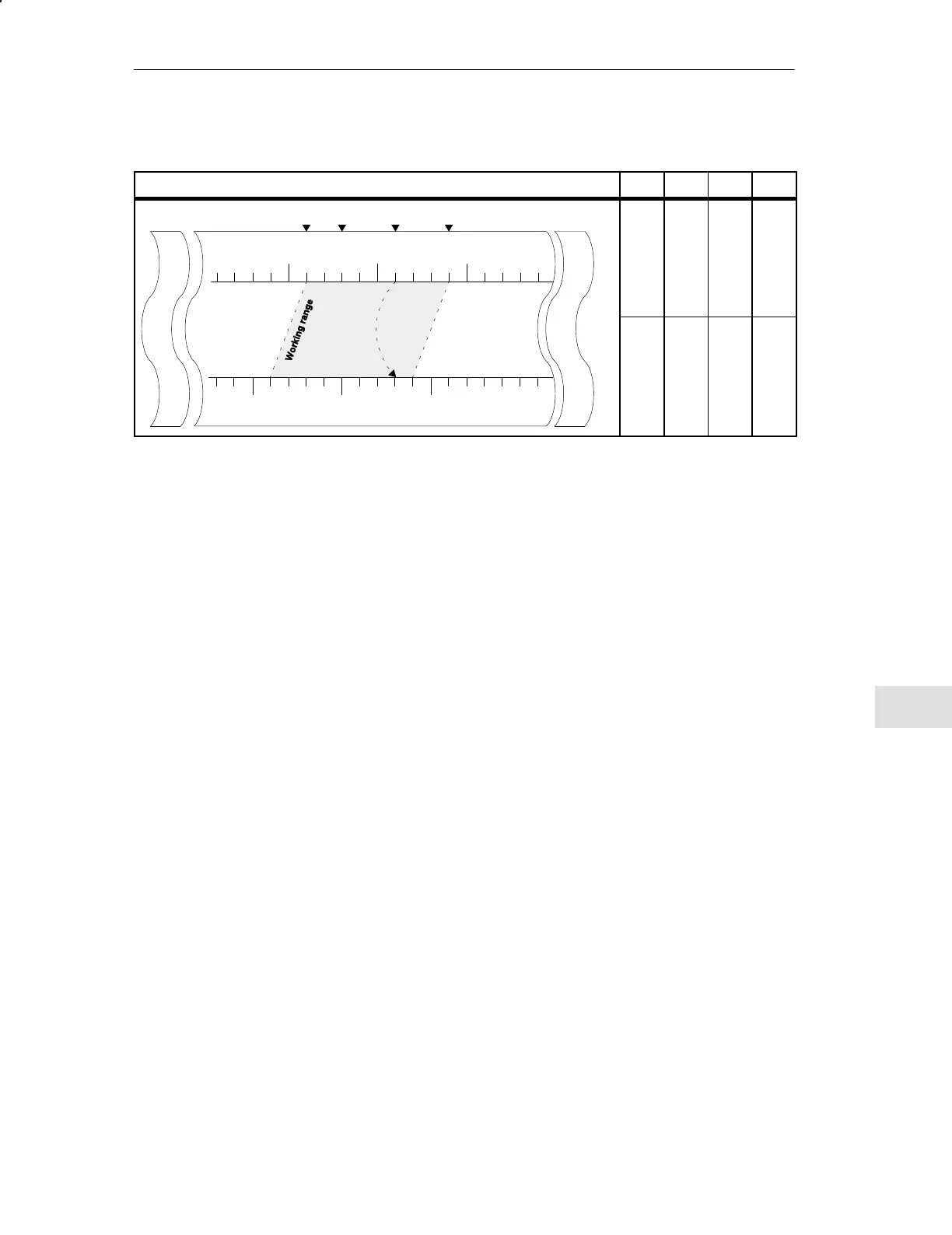

Table 9-6 Displacement of the Working Range on the Axis by Set Actual Value
Set Actual Value SLS REF ACT SLE
SLS
ACT
SLE
Axis
0
500–500
REF
200
[mm]
Projection of
the working
-400 -200 100 400
0
400
–500
the
working
range by Set
actual value to
300 mm
-400 -200 300 400
All numerical values are given in the units of mm.
With the single command Undo set actual value you set the coordinate dis-
placement created by Set actual value back again.
You call the single command with the FC SNG_COM. The channel DB must
contain the appropriate values.
