Abort means that the positioning process is terminated immediately without
application of the switchover and switch-off differences from the rapid and
creep speeds to standstill.
v
rapid
v
creep
POS_RCD
is not set
Abort

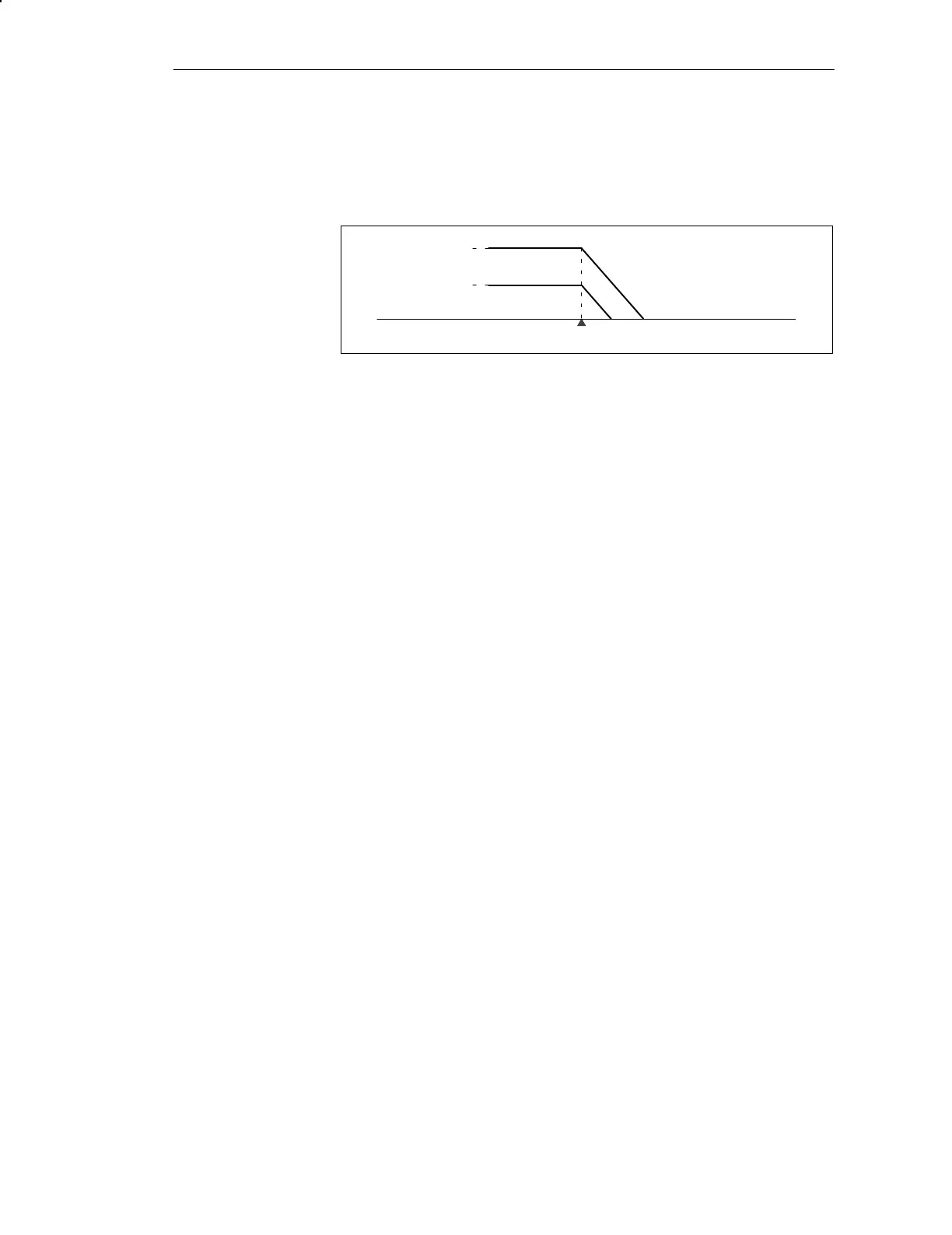

Figure 2-6 Abort of Positioning; The Signal POS_RCD is Not Set
