6.5 Example of an application "Testing and setting parameters for industrial UHF algorithms"
SIMATIC RF-DIAG
74 Operating Manual, 09/2012, C79000-G8976-C292-01
6.5 Example of an application "Testing and setting parameters for
industrial UHF algorithms"
Aim
The aim is to test whether the behavior of the reading point can be improved by the use of
industrial UHF algorithms and to find the optimum parameter settings for them.
Background
If antenna optimization and the Power Ramp do not lead to a satisfactory result, further
industrial algorithms need to be activated:
7$*,'
&ROOHFW
,QYHQWRU\
%ODFN/LVW
7$*,'
7$*,'
6PRRWKLQJ
,QYHQWRU\
7KUHVKROG
)LOWHU
6LQJOHWDJ
,QWHOOLJHQW
6LQJOHWDJ
0RGH
0XOWLWDJ
7DJ+ROG
6
,QWHUIDFH
3RZHU
5DPS
5DGLR3RZHU
3RZHU
*DS
7DJ/LVW
5HDG
%RRVW
:ULWH
%RRVW

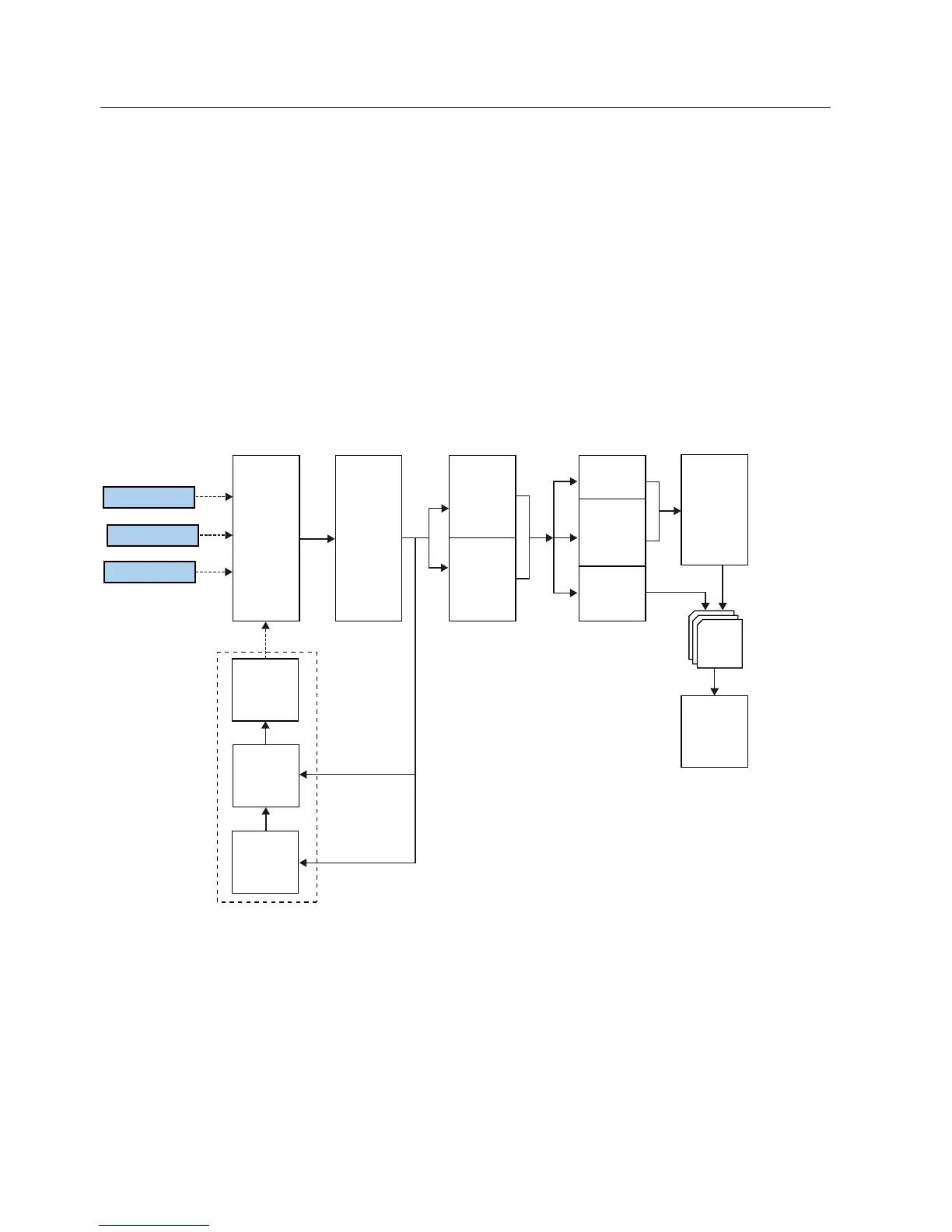

Figure 6-3 Tag List Processing by the industrial SIMATIC UHF algorithms of the RF600 reader
