7.2 Internal design of the device (overview)
SIMATIC IPC MD-57A
Operating Instructions, 09/2023, A5E52775302-AA
65

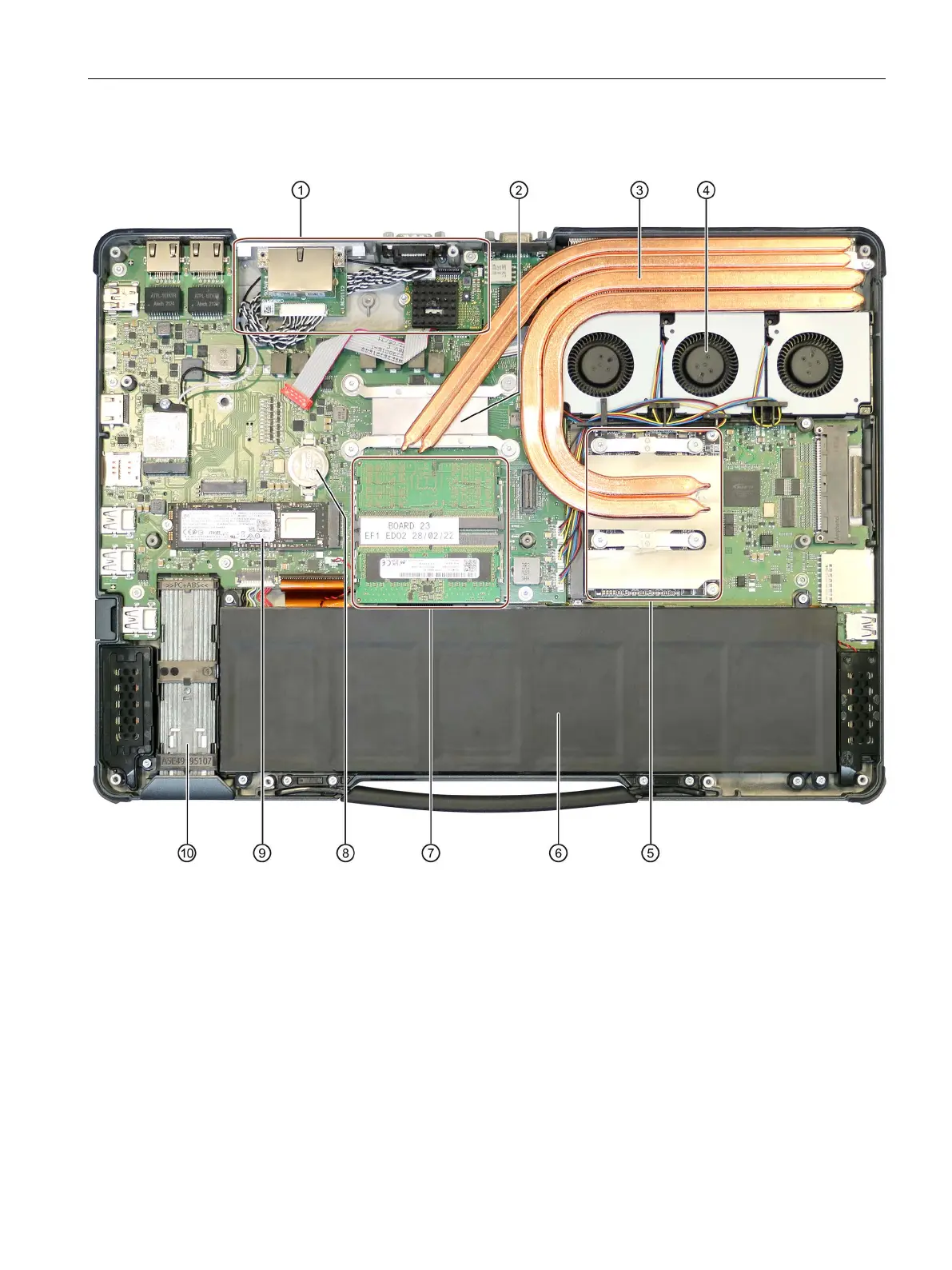

7.2 Internal design of the device (overview)
①
Expansion module (see section "Installing and removing an M.2 module (Page 67)")
②
Heat sink above the processor
③
Heat exchanger of the cooling system
④
Cooling system fan
⑤
MXM graphics card (option, configurable)
⑥
Battery (see section "Replace battery (Page 78)")
⑦
Main memory (see section "Removing and installing memory modules (Page 74)")
⑧
Backup battery (see section "Replacing the backup battery (Page 79)")
⑨
Drive module (see section "Replacing the internal M.2 module (NVMe) (Page 72)")
⑩
SIMATIC IPC Slider (see section "Replacing the SIMATIC IPC slider (M.2 NVMe) (Page 70)")
