Dimension drawings

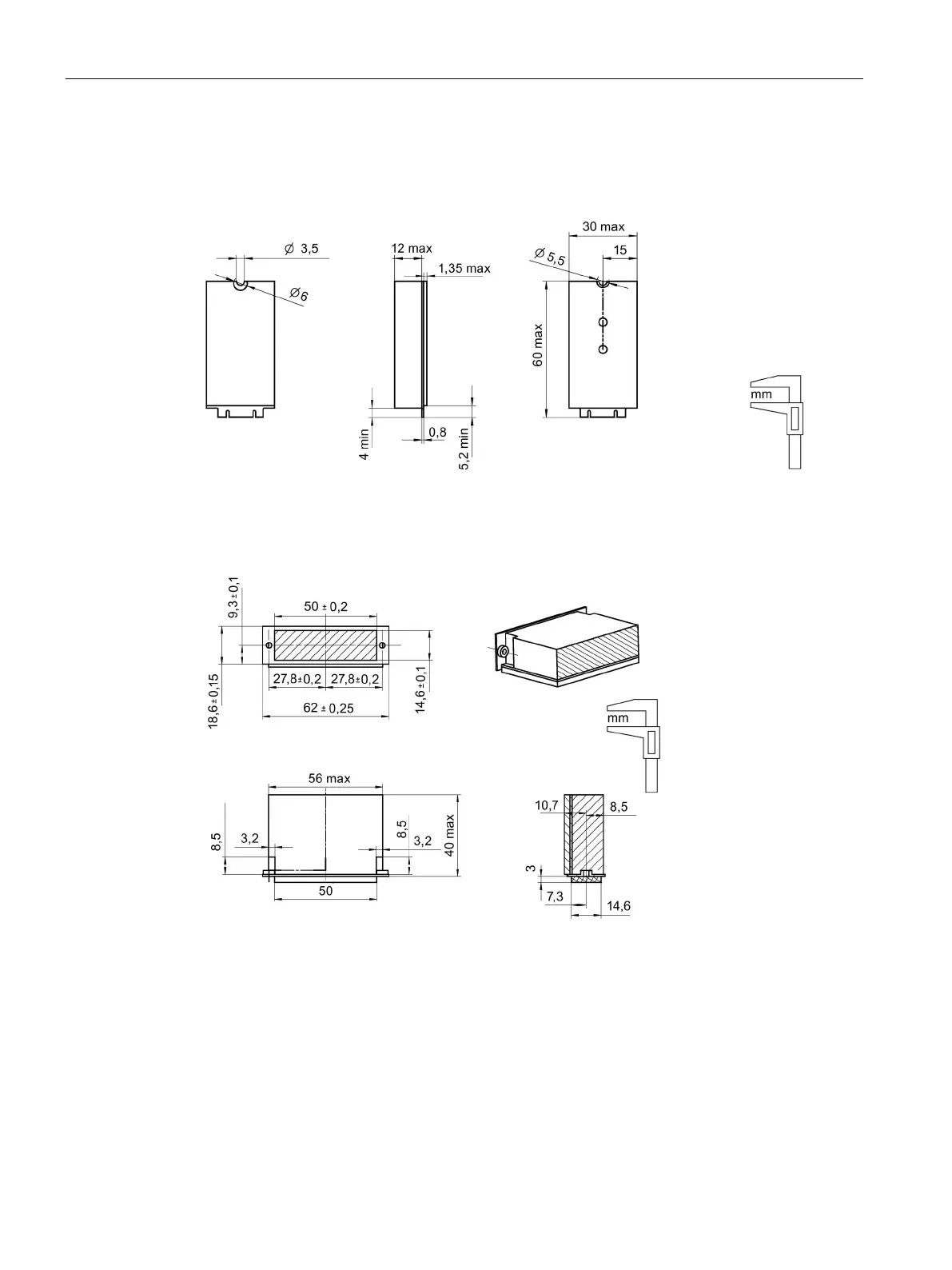

10.2 Dimension drawing of expansion modules (M.2)
SIMATIC IPC MD-57A
88 Operating Instructions, 09/2023, A5E52775302-AA
10.2 Dimension drawing of expansion modules (M.2)
Maximum dimensions of expansion modules
Dimension drawing of the conditioner card
