Siemens SIMATIC IPC MD-57A - Hardware Description; Interface Description; External Interfaces

SIMATIC IPC MD-57A
Operating Instructions, 09/2023, A5E52775302-AA
95
Hardware description
A
A.1 Interface description
A.1.1 External interfaces

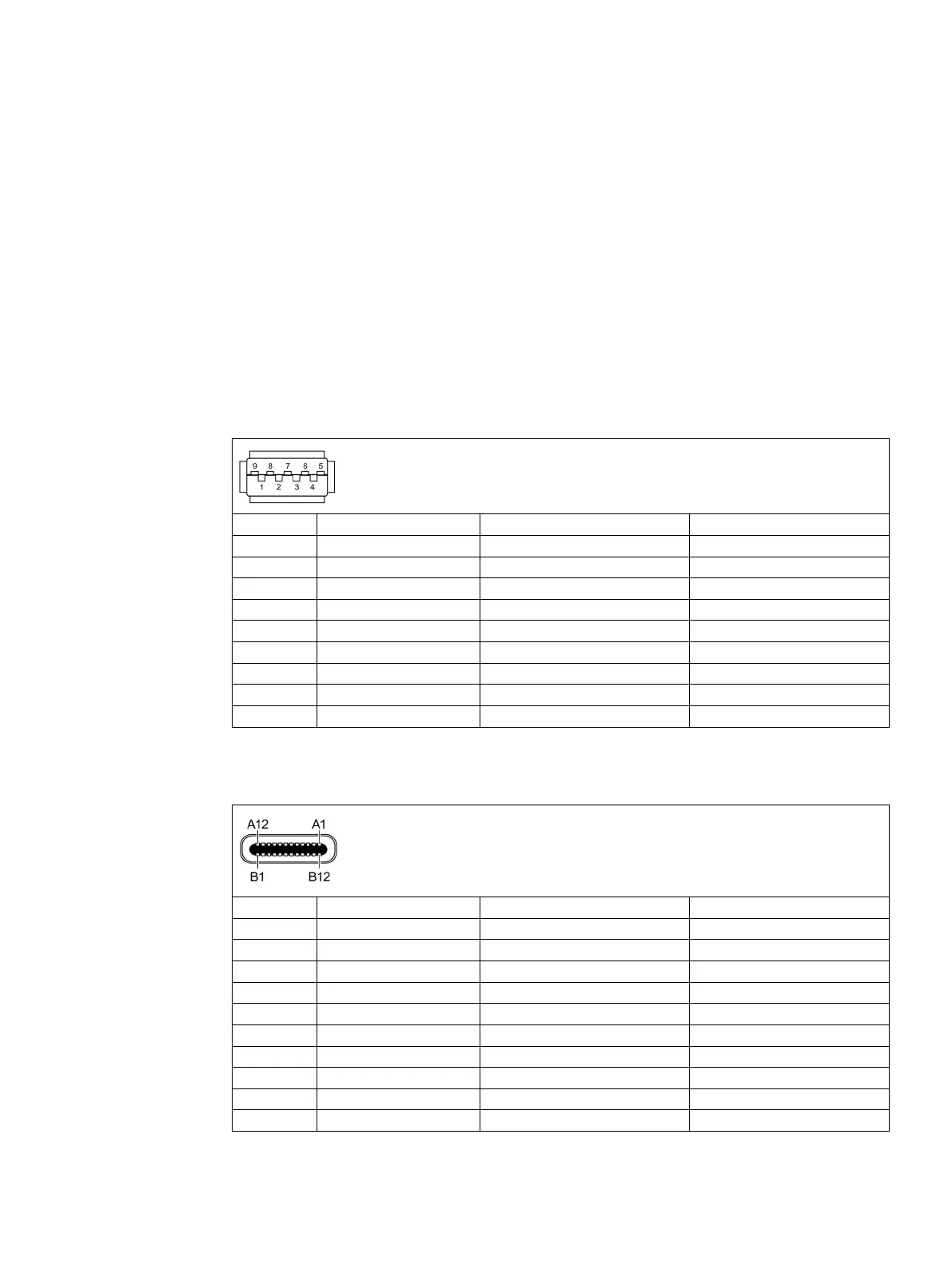

USB 3.0/3.1, USB 3.2 Gen1/Gen2; type A
Pin no.
Short designation
Meaning
Input/output
1
VBUS
+ 5 V (fused)
Output
2
D-
Data line
Input/output
3
D+
Data line
Input/output
4
GND
Ground
–
5
RX-
Data line
Input
6
RX+
Data line
Input
7
GND
Ground
–
8
TX-
Data line
Output
9
TX+
Data line
Output
USB4; type C
Pin no.
Short designation
Meaning
Input/output
A1
GND
Ground
–
A2
TX1+
Data channel (USB4)
Output
A3
TX1-
Data channel (USB4)
Output
A4
VBUS
+ 5 V (fused)
Output
A5
CC1
Configuration channel
Input/output
A6
D+
Data cable (USB 2.0)
Input/output
A7
D-
Data cable (USB 2.0)
Input/output
A8
SBU1
Sideband usage1
-
A9
VBUS
+ 5 V (fused)
Output
A10
RX2-
Data channel (USB4)
Input
