Siemens SIMATIC IPC427C User Manual

User tasks
4.2 Creating the STEP 7 project and configuring the hardware
SIMATIC IPC427C Bundles, SIMATIC HMI IPC477C Bundles
Manual, 07/2009, A5E02280126-02
39
Hardware configuration
The initial configuration of the SIMATIC IPC427C-RTX/ -RTX F/ -HMI/RTX and
SIMATIC HMI IPC477C-RTX/ -RTX F/ -HMI/RTX, as shown below, includes the
following components:
-HMI/RTX configuration:

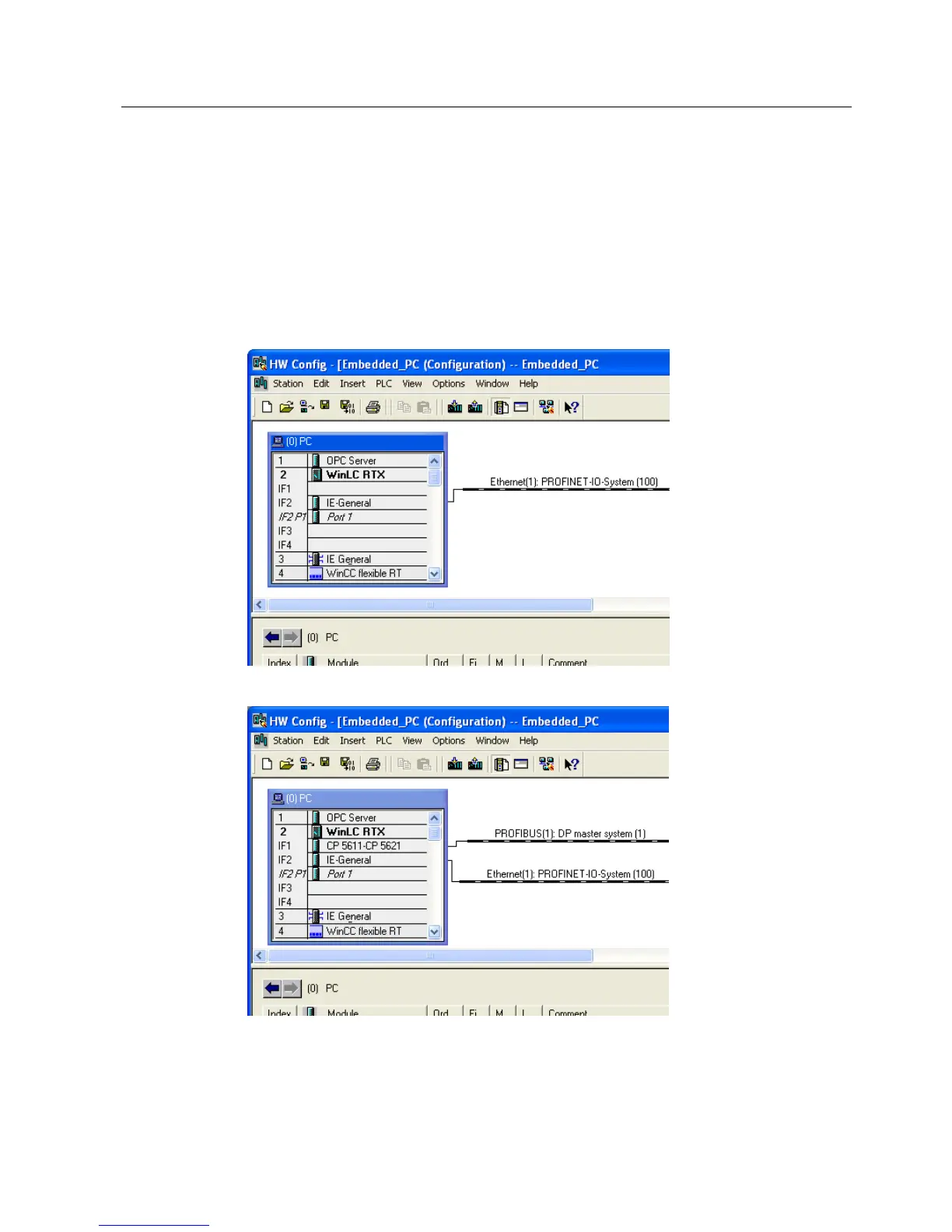

The figures below show the STEP 7 configuration for the -HMI/RTX with PROFIBUS DP
and PROFINET communications processors:
Figure 4-1 -HMI/RTX PN RT STEP 7 configuration
Figure 4-2 -HMI/RTX DP STEP 7 configuration
