Expanding and assigning parameters to the device
6.3 Installing and removing PCIe cards
SIMATIC IPC427E
Operating Instructions, 09/2017, A5E37454814-AB
69

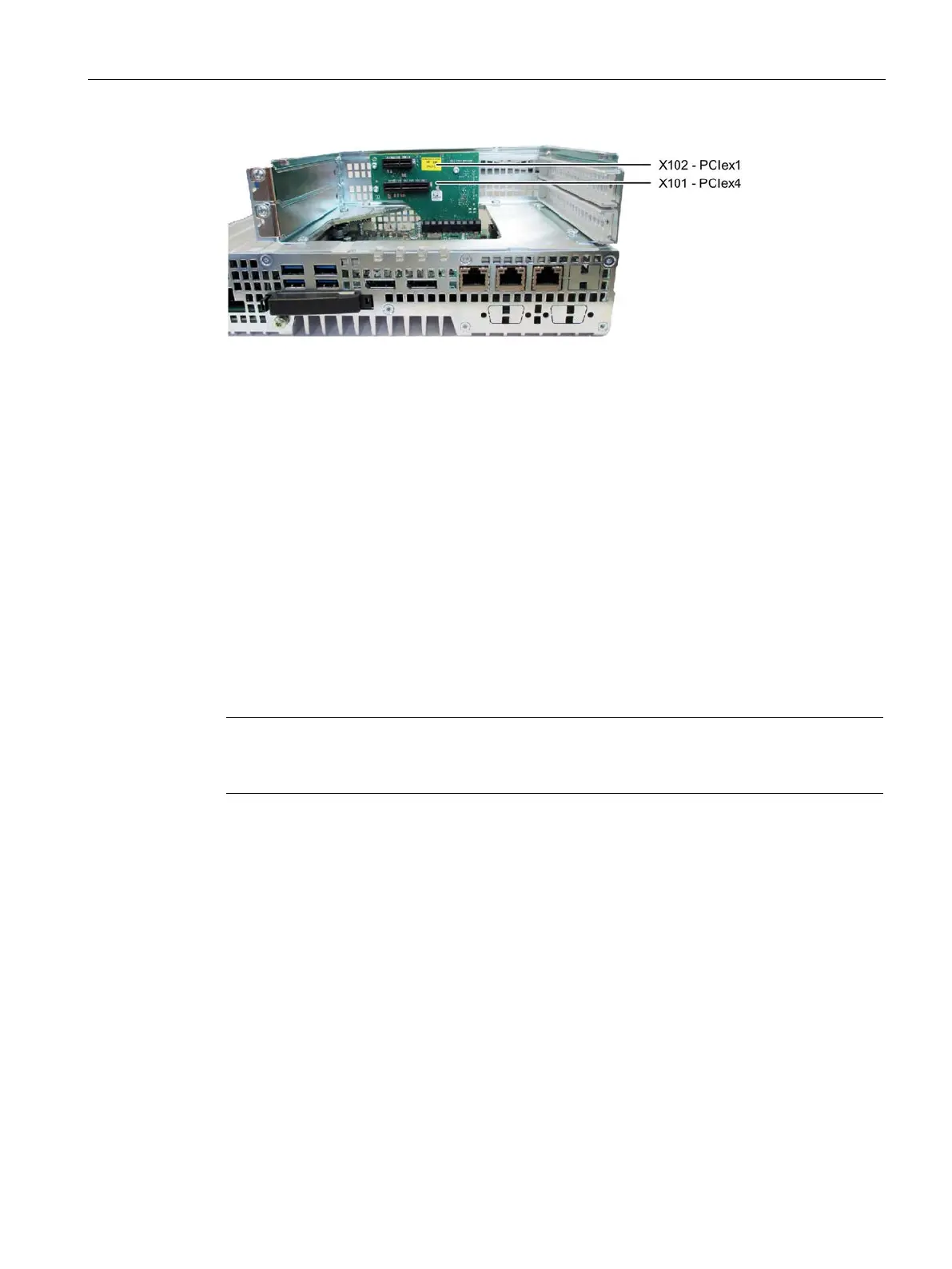

Figure 6-2 Device version with two PCIe slots
● The device is disconnected from the power supply.
● The device is open (see section "Opening the device containing expansion cards
(Page 63)").
● Blanking plates: If the PCIe card to be used has external interfaces, you can use these
blanking plates to install the connectors. You can also use a slot plate with connector
perforations.
● 1 T10 screwdriver
Note
Observe the guidelines for handling electrostatic
-sensitive components in section
ESD guideline (Page 98)".
