Expanding and assigning parameters to the device
6.3 Installing and removing PCIe cards
SIMATIC IPC427E
70 Operating Instructions, 09/2017, A5E37454814-AB

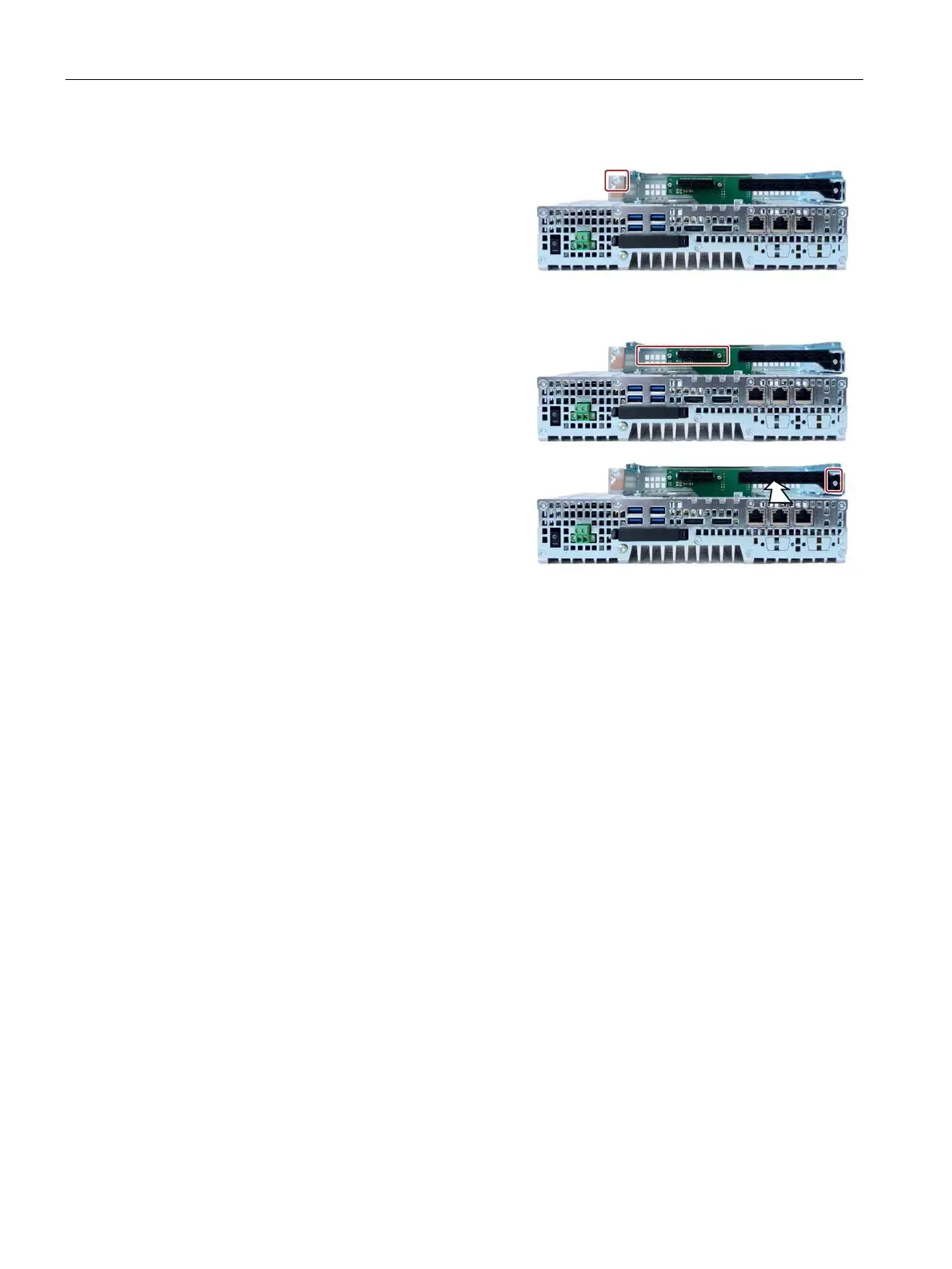

1.
Remove the screw in the blanking plate
for the slot you require and remove the
blanking plate.
2.
Remove the retainer.
3.
Insert the expansion card into the slot as
shown.
Secure the expansion card with the co
r-
responding screw.
4.
Slide the clamp in the direction indica
ted.
Secure the bracket with the
designated
screw.
5.
Close the device as specified in section "
Opening the device containing expansion cards
(Page 63)".
Removal
Proceed in reverse order.
Configuring BIOS setup
You may need to make settings in the BIOS Setup. For detailed information about
installation, please refer to the documentation provided with the specific expansion card.
