Expansions and parameter assignment
10.3 Installation and removal of expansion modules
SIMATIC IPC647C
Operating Instructions, 12/2010, A5E02669337-02
75

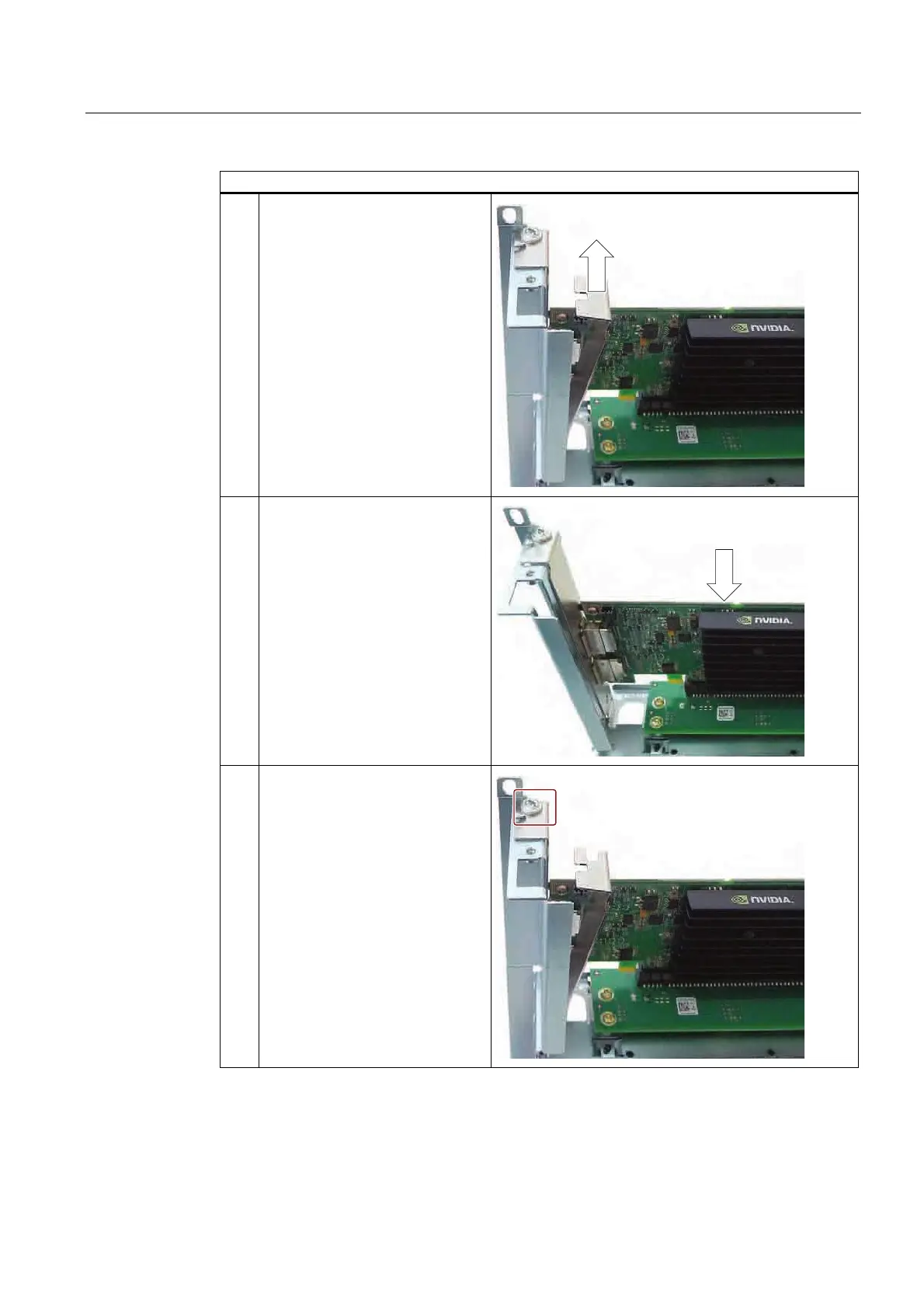

How to install an expansion module (PCI / PCIe format):
3. Remove the released bracket.
If necessary, loosen the screw of
the second bracket and remove it.
4. Place the expansion module in the
provided slot and press the module
until it engages in the edge-socket
connector of this slot. Make sure
that the module is seated correctly
in the edge-socket connector. Do
not tilt the module.
5. Screw down the bracket of the
expansion and the other removed
bracket if needed.
