Siemens SIMATIC NET S7-1200 User Manual

Application and properties
1.5 Configuration examples
CP 1243-1 DNP3, CP 1243-1 IEC
14 Operating Instructions, 02/2014, C79000-G8976-C312-02
1.5
Configuration examples
1.5.1
Configuration with 1 subnet
Configuration example with a non-redundant control center
The following example describes a configuration with a non-redundant control center in
which all nodes are located in 1 IP subnet.
In this example, the DNP3 protocol is used; in other words, the stations are equipped with a
CP 1243-1 DNP3.
A configuration in which the IEC protocol is used would have the same setup apart from the
CP type (here CP 1243-1 IEC).

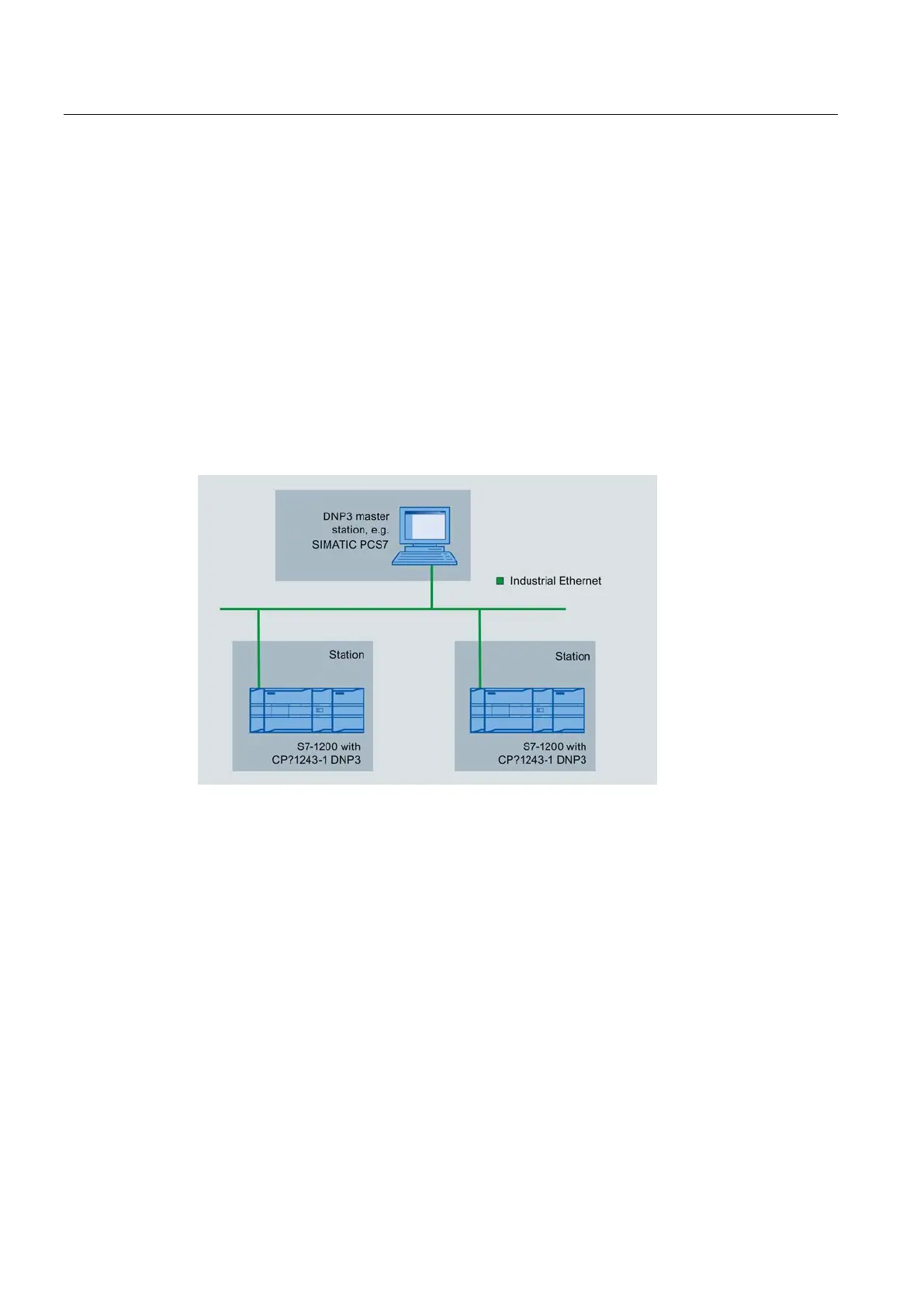

Figure 1-1 Configuration example with a non-redundant control center and stations in one IP subnet
The S7-1200 stations are connected to the Internet via the CP and connected to the control
center.
When using the DNP3 protocol, for example, SIMATIC PCS 7 TeleControl or the system of a
third-party provider can be used as the control center. If you use SIMATIC PCS 7
TeleControl as the DPN3 master in the control center, you require the necessary DPN3
driver.
1.5.2
Configuration with connections over the Internet
Configuration example with connections over the Internet
The following example contains a configuration with a non-redundant control center.
In this example, the DNP3 protocol is used; in other words, the stations are equipped with a
CP 1243-1 DNP3.
