Dimension drawings
B
Note
All dimensions in the drawings are in millimeters.

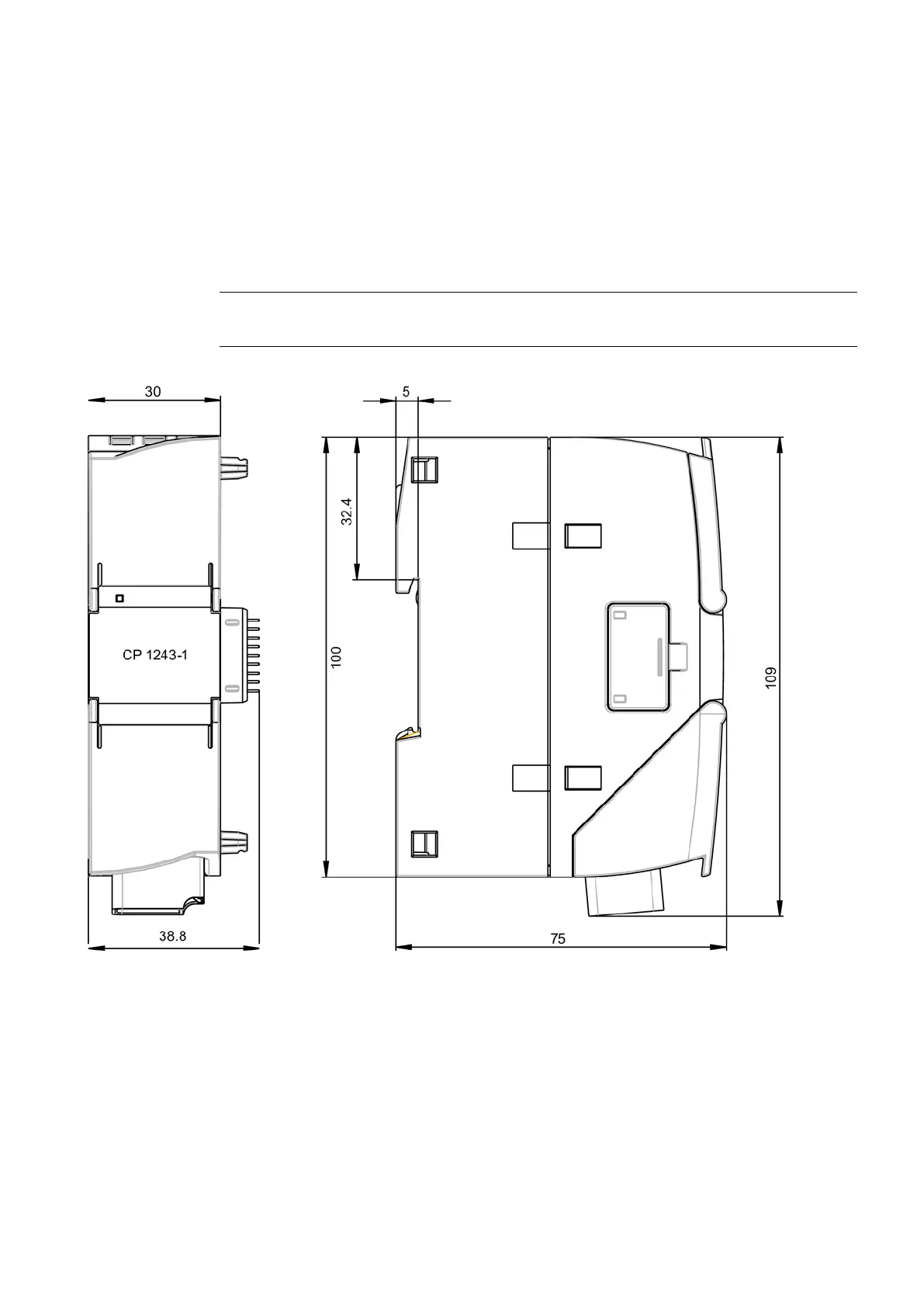

Figure B-1 CP 1243-1 DNP3 / CP 1243-1 IEC: Front view and side view left
