Siemens SIMATIC NET S7-1200 User Manual

Technical specifications
CP 1243-1 DNP3, CP 1243-1 IEC
64 Operating Instructions, 02/2014, C79000-G8976-C312-02
Technical specifications
Design, dimensions and weight
Module format
Compact module for S7-1200, single width
Degree of protection
IP20
Weight
122 g
Dimensions (W x H x D)
30 x 110 x 75 mm
Installation options Standard DIN rail
Switch panel
Product functions **
*
For details, refer to the IK PI catalog, cabling technology
**
You will find further characteristics and performance data in the section Application and
properties (Page 9).
Pinout of the Ethernet interface
The table below shows the pin assignment of the Ethernet interface. The pin assignment
corresponds to the Ethernet standard 802.3-2005, 100BASE-TX version.

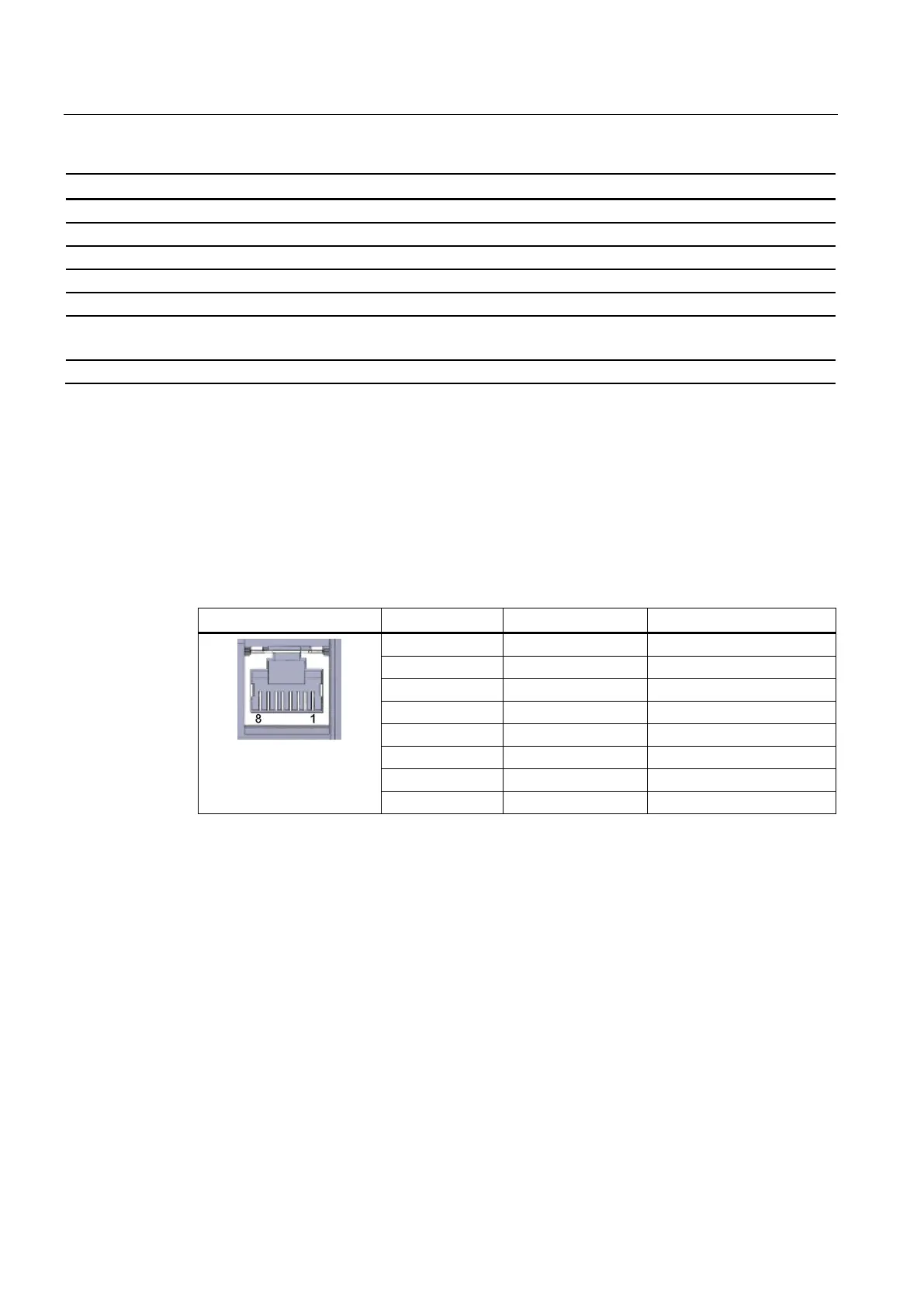

Table 7- 2 Pin assignment of the Ethernet interface
View of the RJ-45 jack
Pin
Signal name
Assignment
1
TD
Transmit data +
2
TD_N
Transmit data -
3
RD
Receive data +
4
GND
Ground
5
GND
Ground
6
RD_N
Receive data -
7
GND
Ground
8 GND Ground

Siemens SIMATIC NET S7-1200 Specifications

General

Supply voltage	24 V DC
Protection class	IP20
Product type designation	S7-1200
Transfer rate	10/100 Mbit/s
Number of ports	4
Power consumption	2.5 W
Operating temperature	0 °C to 60 °C
Mounting type	DIN rail
Switching capacity	1 Gbps
